Installing MX-ONE
To install the upper air plate, perform the following steps:

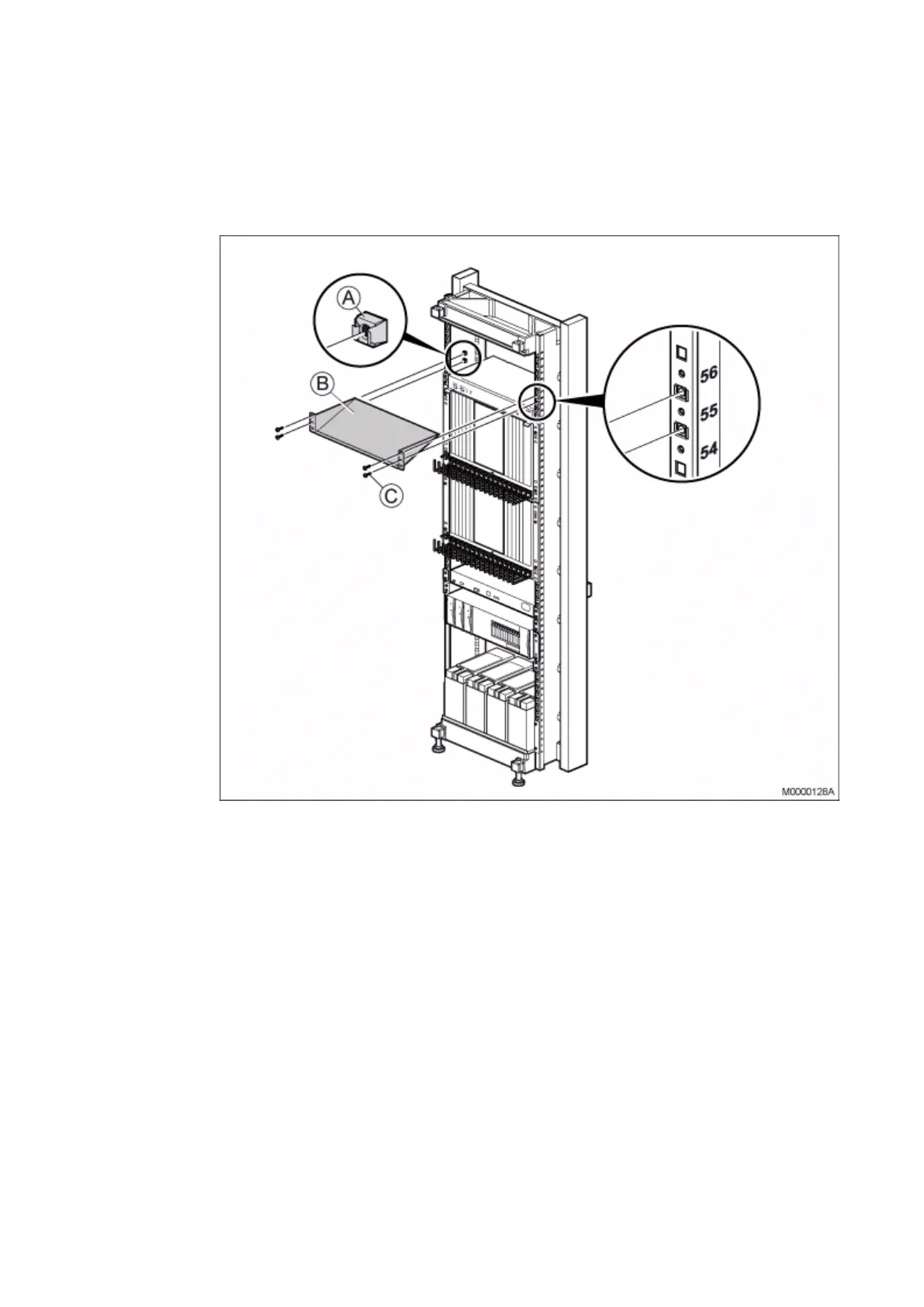

Figure 51 Installing Upper Air Plate
• Mount four captive nuts (A) ( Section 4.4 on page 41 ) according to the
number positions shown, Page 68 .
• Fasten the air plate (B) to the four captive nuts in the cabinet using the four
screws (C), Page 68
68
6/1531-ASP 113 01 Uen J2 2008-07-17
