AAton Penelope - Assistants Controls

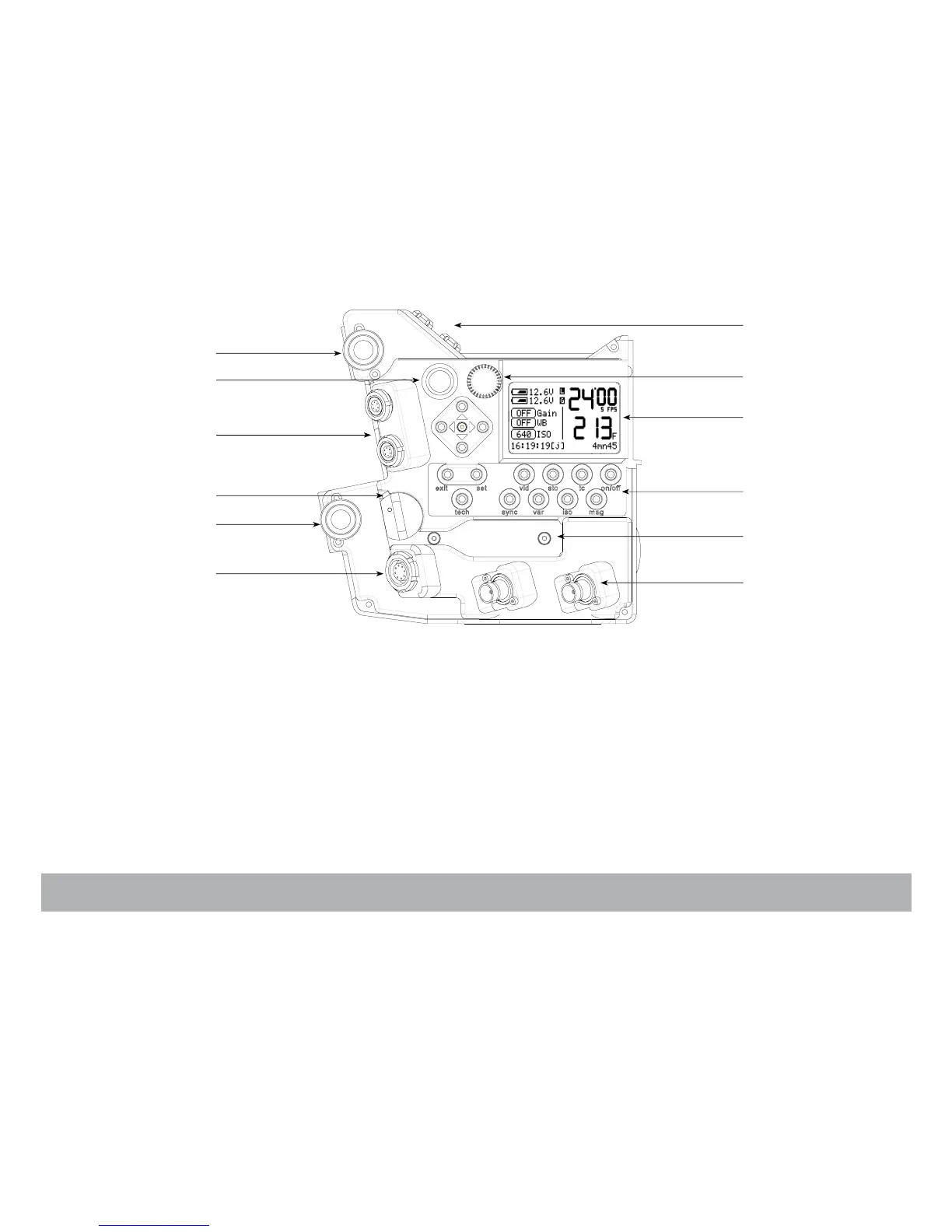

Aaton General overview
11
1
2
3
4
5
6
7
8
9
10
11
12
Fischer-4 socket
Jog wheel
LCD screen
Setting keys
Ethernet connector (RJ45)
BNC sockets
LEMO-8 socket
Lower battery locking screw
Ethernet cable locking lever
LEMO-6 socket (x2)
Run/Stop switch
Upper battery locking screw
Provides power and composite video signal for MiniMonitors (IVS compatible)
Camera parameters settings
Displays camera and video parameters
Allows access to camera and video operating menu
Computer communication
Video outputs
+Batt., Start, Sync and Ground for accessories
Fastens the lower onboard battery
Locks Ethernet cable
Provides +Batt., Start and Ground for accessories
Runs/stops the film
Fastens the upper onboard battery
A4
1
2
3
4
5
6
7
9
8
10
11
12
Assistant’s controls
