AAton Penelope - Rear View

Aaton General overview
9

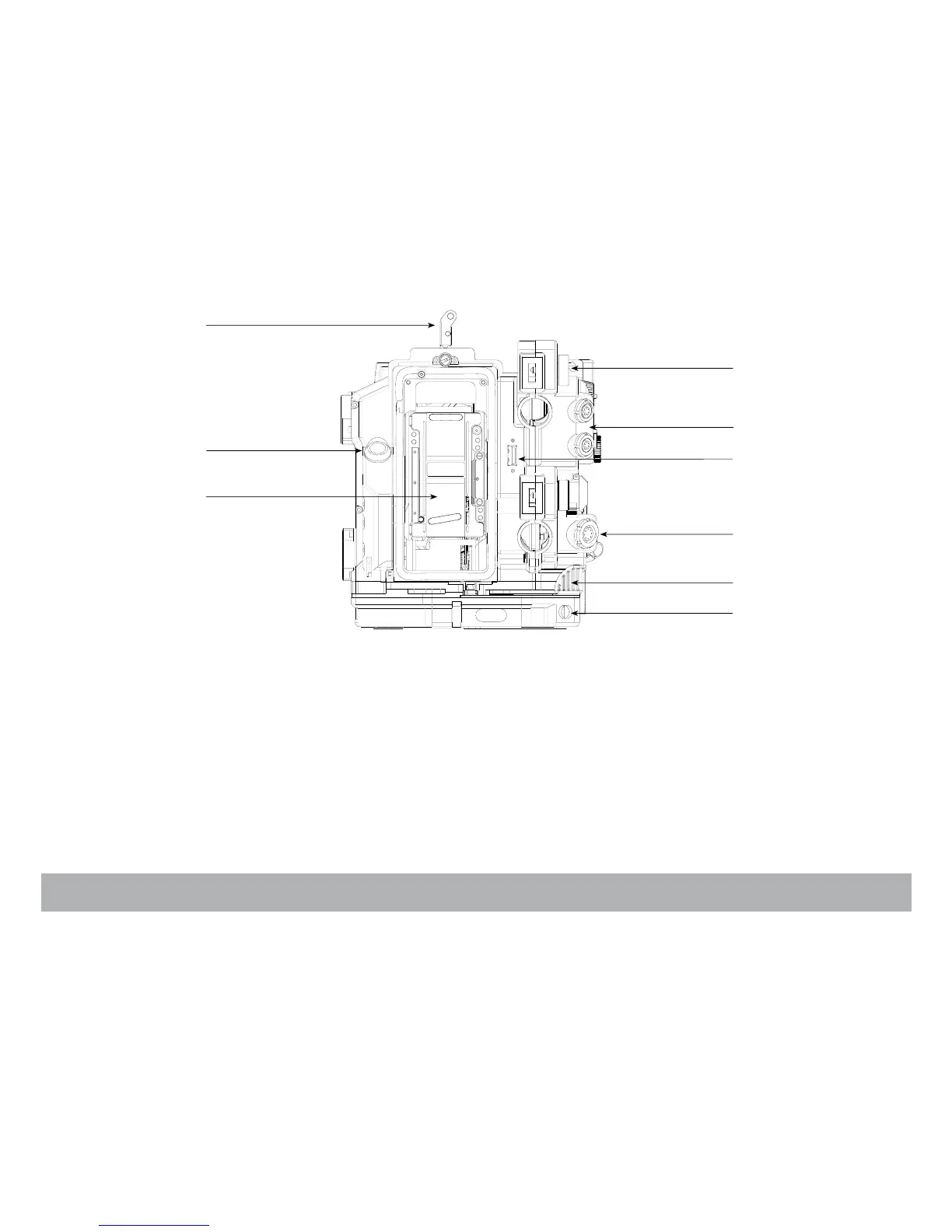

Rear view
1
2
3
4
5
6
7
8
9
Upper battery locking screw
LEMO-6 socket (x2)
USB socket
LEMO-8 socket
Magazine release lever
LEMO-5 socket
Gate
Run/Stop switch
Magazine locking lever
Fastens the upper onboard battery
Provides +Batt, Start and Ground for accessories
Connects to a USB key
Provides 12V, Start, Sync pulse and ground for accessories
Used to release the magazine from the camera body
Timecode communication
Removable gate, 2-Perf or 3-Perf
Runs/stops the film
Secures the magazine to the camera body
