20
2600T SERIES | PRESSURE TRANSMITTERS | OI/266/FF-EN REV. E


NOTICE
Potential damage to transmitter. In case of FOUNDATION Fieldbus gauge pressure transmitter with 1050 bar/15000 psi sensor
range (266HSH.Z or 266GSH.Z) and 1/4” NPT process connection, please always perform sensor low trimming to remove
possible zero shift and a prevent serious decrease of the total performance in terms of accuracy. Sensor low trim can be
performed from DD based FF Masters.



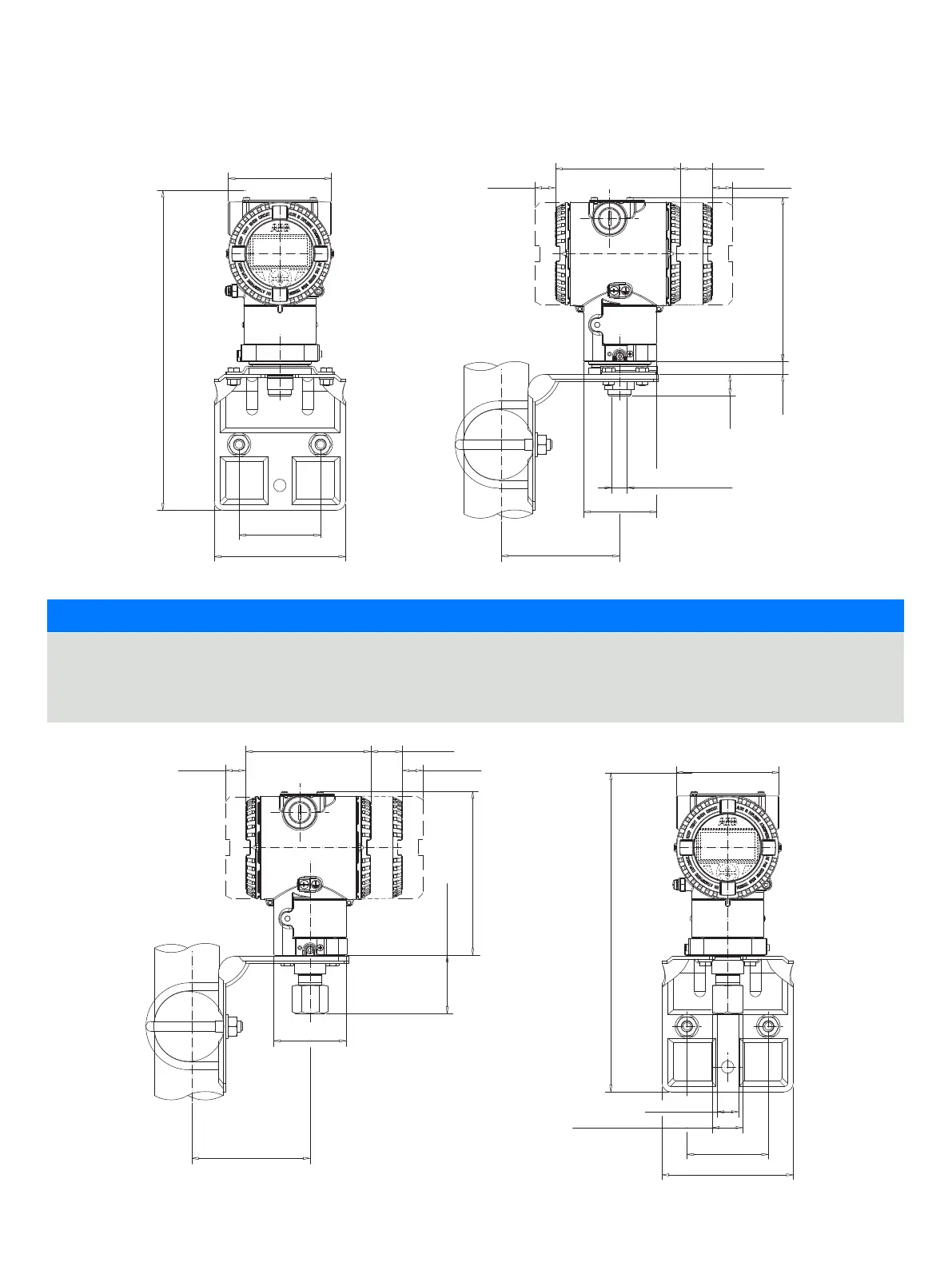

29 (1.14)
18 (0.71) 18 (0.71)
145 (5.71)
19 (0.74)
Ø65 (2.56)
91 (3.58)
12 (0.45)
105 (4.12)
116 (4.57)
72 (2.83)
283 (11.12)
113 (4.45)
23 (0.9) width across
flats of exagon
113 (4.45) 29 (1.14)
18 (0.71) 18 (0.71)
145 (5.71)
91 (3.58)
1/2 - 14 NPT
Ø65 (2.56)
51 (1.99) Max.
105 (4.12)
116 (4.57)
72 (2.83)
283 (11.12)
27 (1.06) width across
flats of exagon
