24 266CRH / 266CRT, 266CSH / 266CST MULTIVARIABLE PRESSURE TRANSMITTER | OI/266CXX/MODBUS-EN REV. A
… 6 Installation
… Mounting dimensions – Model 266CSx
Transmitter with flat bracket, for vertical or horizontal mounting on 60 mm (2 in) pipe
M10022-01
70 (2.75)
70 (2.75)
179 (7.02)
91 (3.58)
142 (5.59)
49 (1.93)
29 (1.14)
18 (0.71)
18 (0.71)
210 (8.28)
56 (2.21)
53 (2.09)
45 (1.77)
33 (1.30)
12 (0.47)
60 (2.36)*
72 (2.83)**
25 (0.98)
44 (1.71)
89 (3.48)
118 (4.63)
*
* With screw plug
** With vent / drain valve

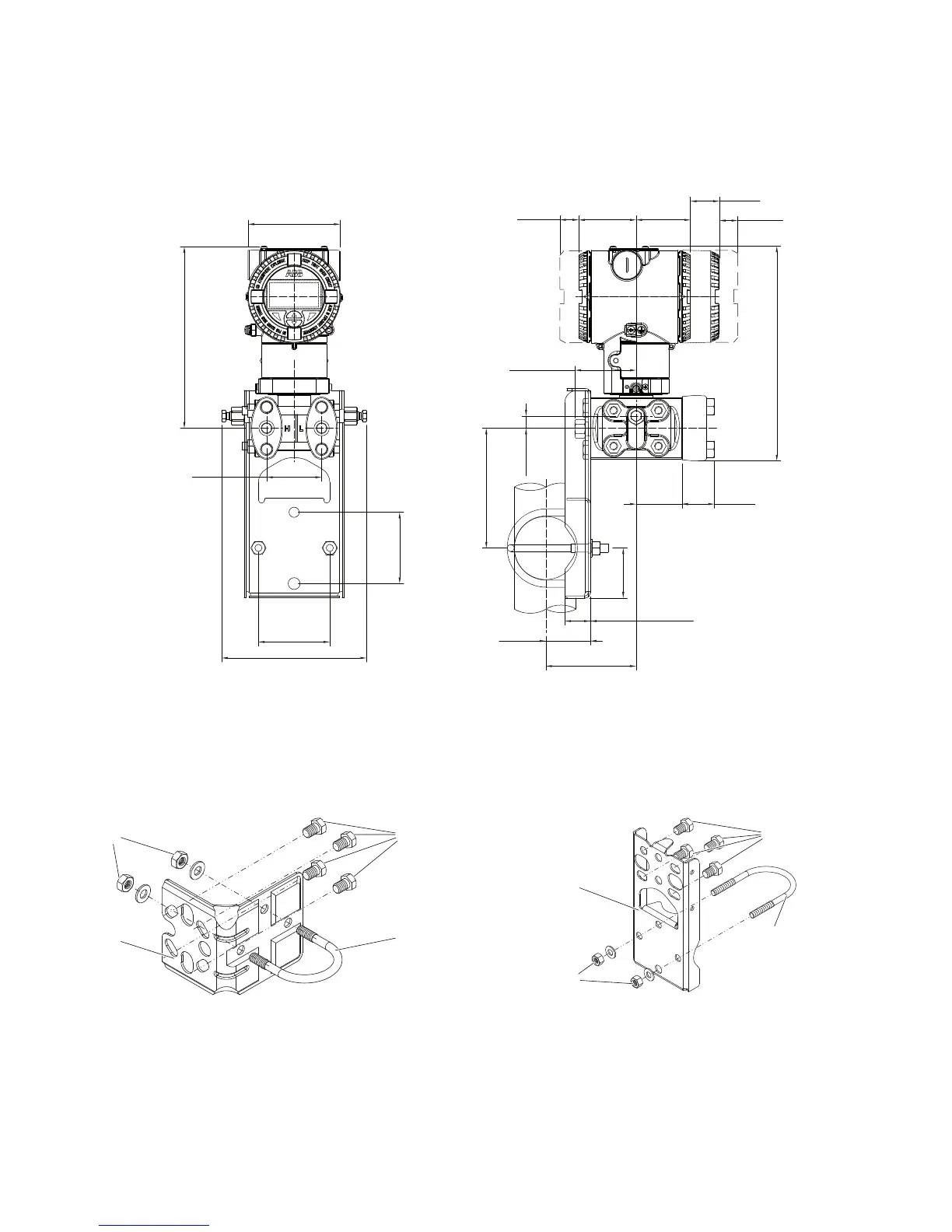

Figure 11: Flat bracket for pipe mounting – barrel housing, Dimensions in mm (in)
Installation via (optional) mounting brackets
With the mounting brackets available the transmitter can be mounted in different positions.
Change from one to tw o columns
M10798-01
1 2
3
4
1 Washers and nuts for fastening
the U-bolt
2 Mounting screws for the
transmitter
3 U-bolt
4 Mounting bracket
Figure 12: Detail view of the mounting bracket, B2, for pipe and wall installation
M10800-01
1
3
4
2
1 Washers and nuts for fastening
the U-bolt
2 Mounting bracket in flange
design, B5
3 Mounting screws for the
transmitter
4 U-bolt
Figure 13: Detail view of the mounting bracket, B5
