266CRH / 266CRT, 266CSH / 266CST MULTIVARIABLE PRESSURE TRANSMITTER | OI/266CXX/MODBUS-EN REV. A 13
4 Product identification
Name plate
M11199
2600T
AAAAAAAAAAAAAAAAAAAAAAAAA
BBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEE
Tag
Number
2600T
PRESSURE TRANSMITTER
Calib.
Range
A
B
C
A
B
C
D
1
2
3
4
5
6
8
9
0
k
l
m
n
o
p
q
r
s
t
7
A Name plate
B Special data plate with Ex-marking
C Plate with measuring point tagging (tag number)
D Tag plate with customer data made from stainless steel (optional)
1 Serial number
2 Low side diaphragm seal order code
3 Hardware version
4 Date of manufacture
5 Identification code with reference to the Pressure Equipment Directive
(SEP or Fluidgroup)
6 Output signal
7 Permissible pressure (static)
8 Static pressure sensor range
9 Set span
j Lower to measuring range upper limit (LRL to URL)
k Permissible ambient temperature range
l Temperature span
m Power supply
n Diaphragm seal filling liquid
o Range of process connection and gasket material
p Sensor filling liquid
q Special customer request
r High side diaphragm seal order code
s Device type / order code / additional order code
t Manufacturer logo and address

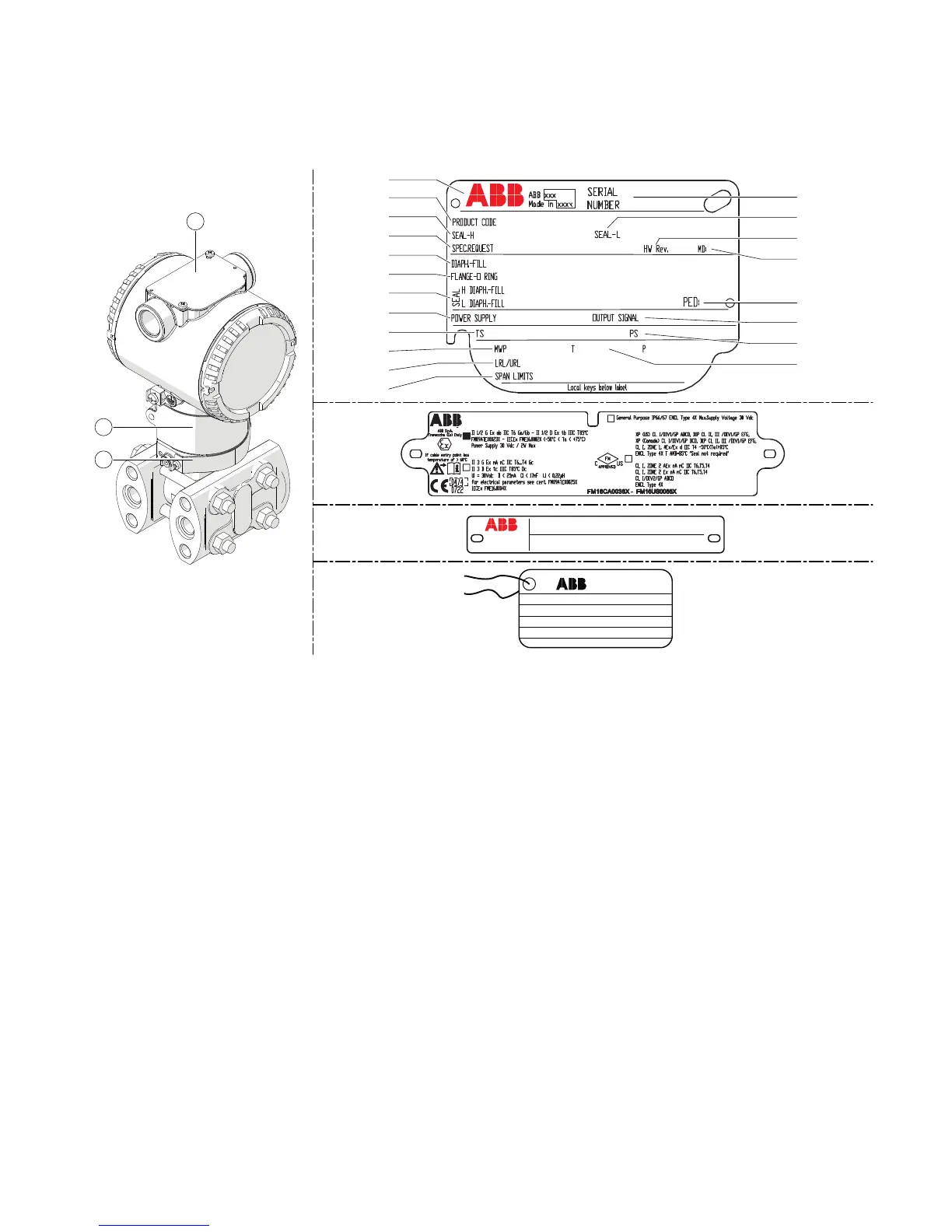

Figure 3: Types and tag plates (example)
Note
The device can optionally be delivered with a tag plate
D made from stainless steel and fastened with wire. Customer specific text
that has been specified in the purchase order is laser printed on the tag plate.
For this, 4 lines of 32 characters each are provided.
