266CRH / 266CRT, 266CSH / 266CST MULTIVARIABLE PRESSURE TRANSMITTER | OI/266CXX/MODBUS-EN REV. A 43
8 Operation
Safety instructions
If there is a chance that safe operation is no longer possible,
take the device out of operation and secure it against
unintended startup.
Menu navigation
M10145-01
1
2
5
Menu 3
4
5
Exit Select
1 Operating buttons for menu
navigation
2 Menu name display
3 Menu number display
4 Marker for indicating relative
position within the menu
5 Display showing the current
functions of the and
operating buttons

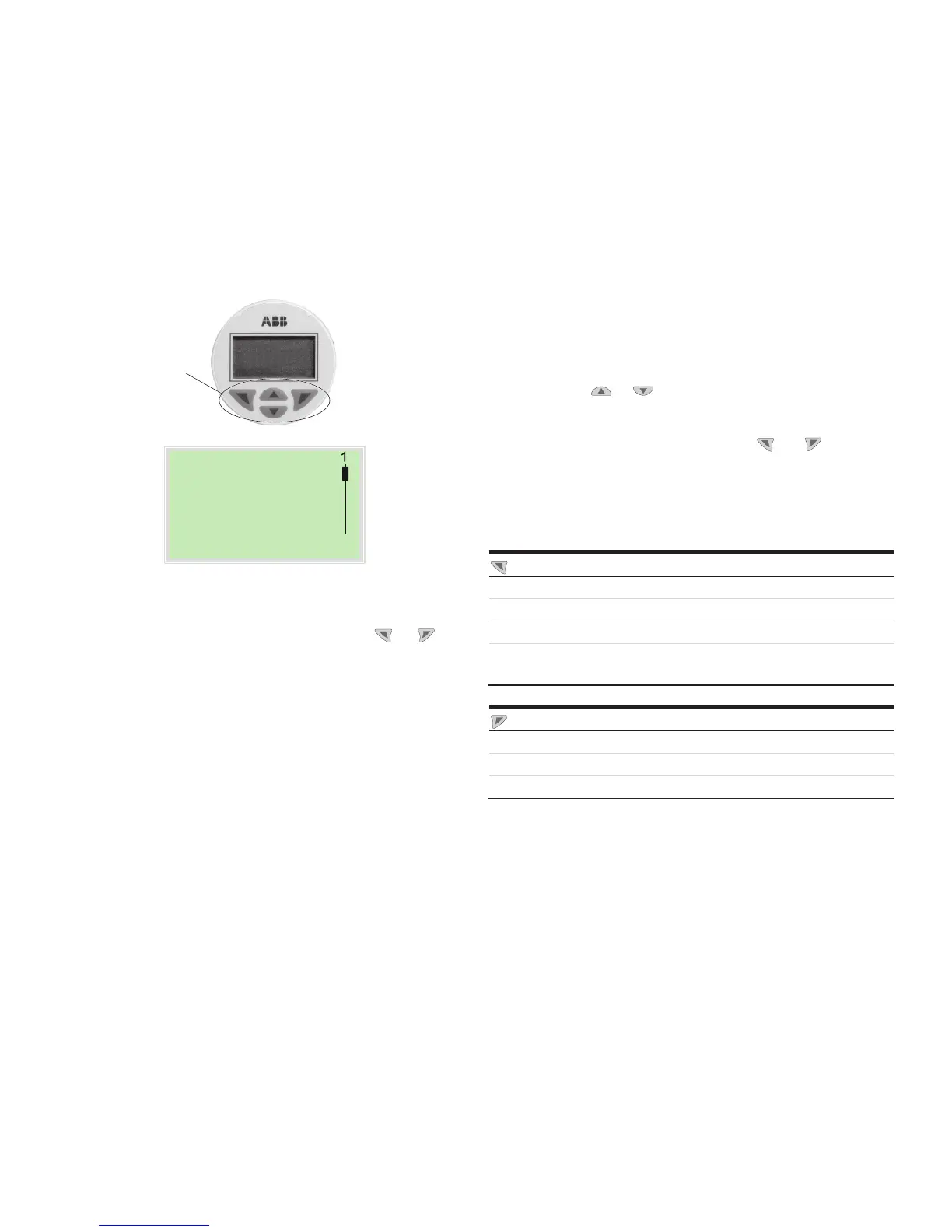

Figure 34: LCD display
The LCD indicator has capacitive operating buttons. These
enable you to control the device through the closed housing
cover.
Note
The transmitter automatically calibrates the capacitive buttons
on a regular basis. If the cover is opened during operation, the
sensitivity of the buttons is firstly increased to enable operating
errors to occur. The button sensitivity will return to normal
during the next automatic calibration.
You can use the or operating buttons to browse through
the menu or select a number or character within a parameter
value.
Different functions can be assigned to the and operating
buttons. The function
5 that is currently assigned to them is
shown on the LCD display.
Control button functions
Meaning
Exit Exit menu
Back Go back one submenu
Cancel Cancel a parameter entry
Next Select the next position for entering numerical and
alphanumeric values
Meaning
Select Select submenu / parameter
Edit Edit parameter
OK Save parameter entered
