Electrical installation
50

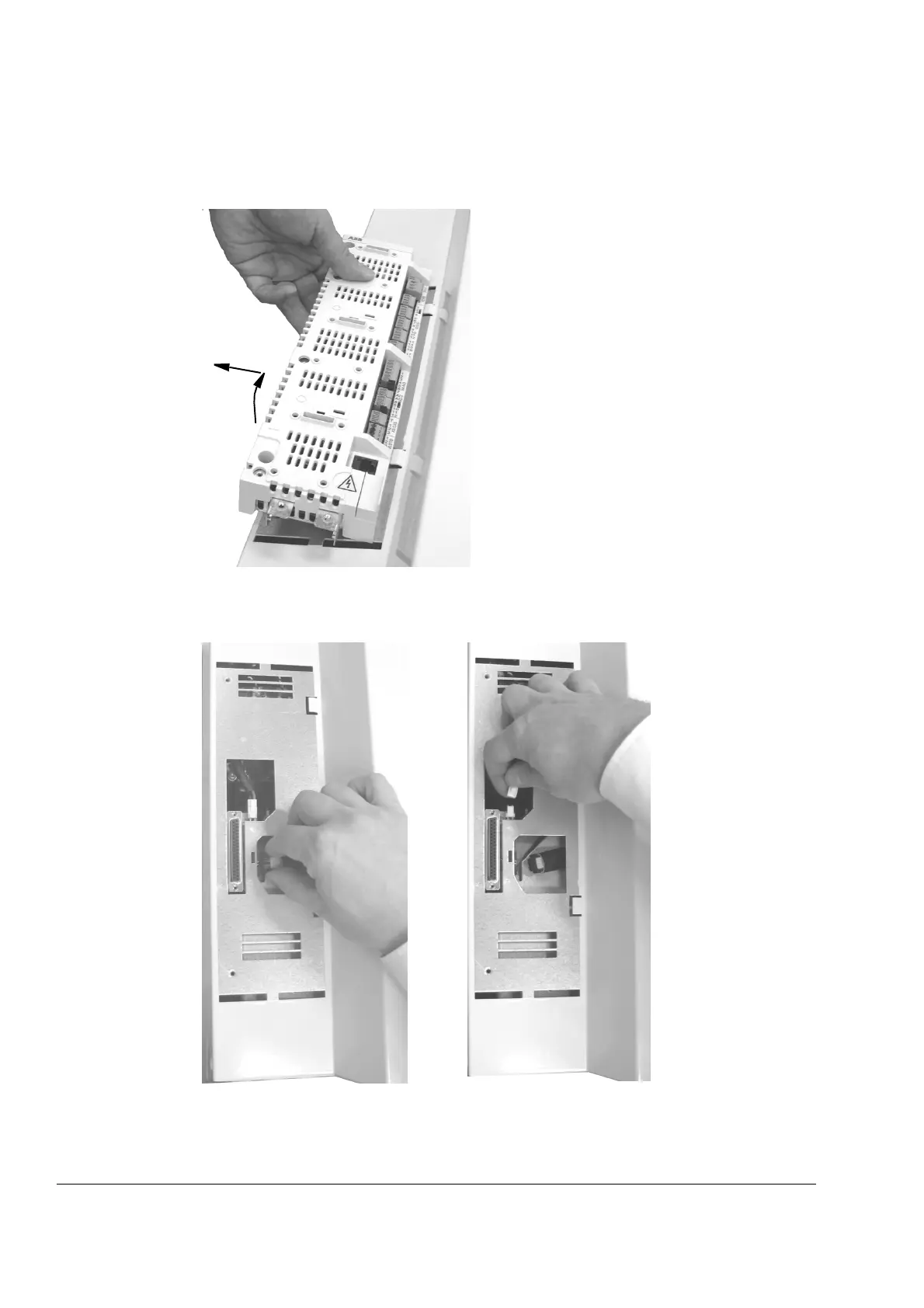

3. Lift the left-hand edge of the JCU control unit until the connector beneath
disengages, then move JCU to the left to remove it.
4. Disconnect the two cables coming to the mounting base of the JCU.
1
2
