Electrical installation
51

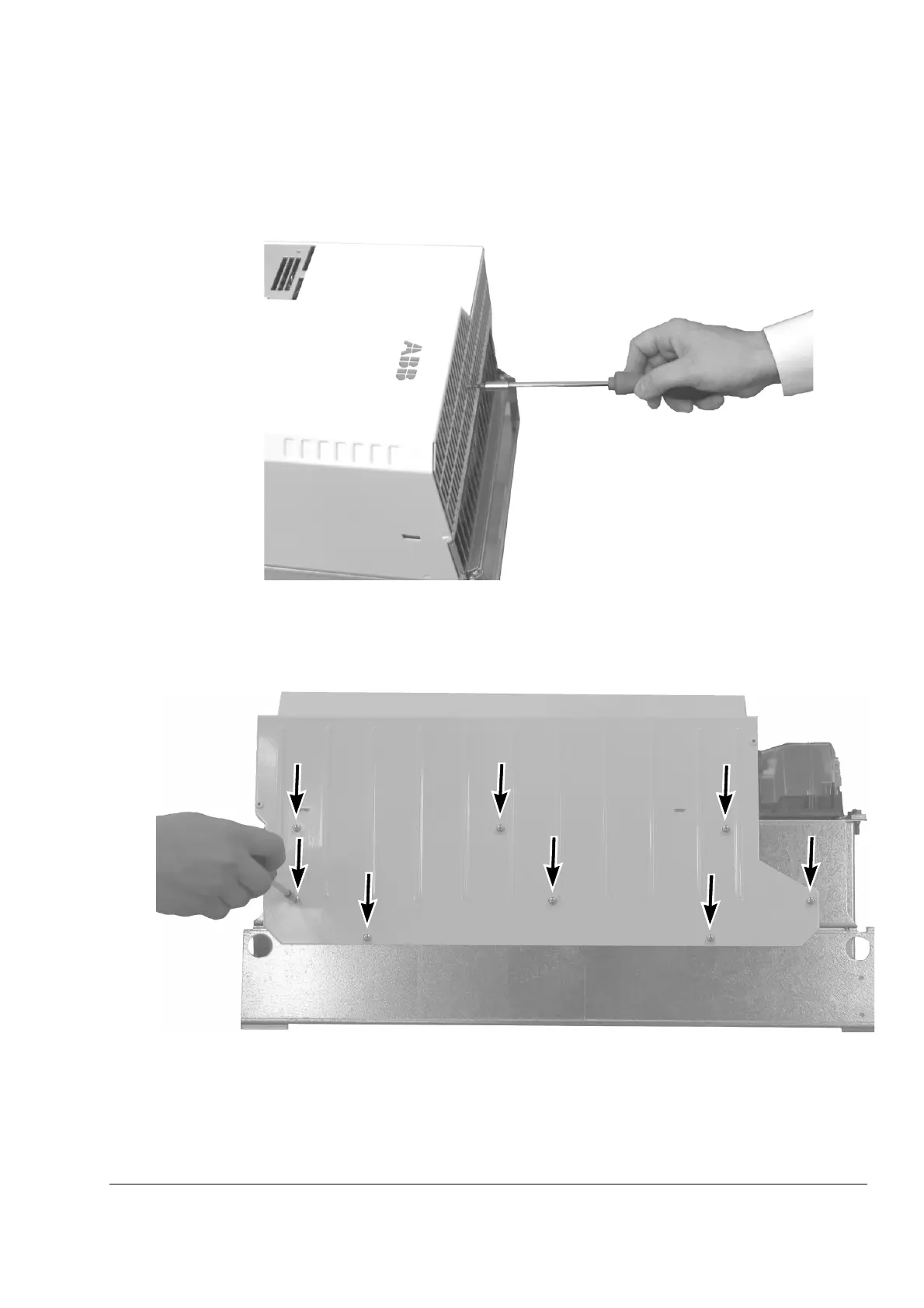

5. Remove the screw in the middle of the air outlet grating.
6. Remove the screws holding the drive module cover (8 on each side). Lift off the
cover, bottom edge first.
