Overview
The following table summarizes the various calibration methods.
Qty. Calibration
SC MR method To configure … Calibrate … Calibration affects …
1 1 Test gas/
Single
zero and span individually
for each measuring range
and each sample compo-
nent
only each measuring range
≥ 1 > 1 Test gas/
Common
the measurement ranges
for zero and span calibra-
tion
zero in one measurement
range and span in another
range for each sample
component
all measuring ranges of
each sample component
> 1 ≥ 1 Substitute
gas
components and measur-
ing ranges for zero and
span calibration
zero in one component
measurement range and
span in one range for an-
other component
all detector components
and measurement ranges
SC = Sample and substitute gas components
MR = Measurement ranges per component

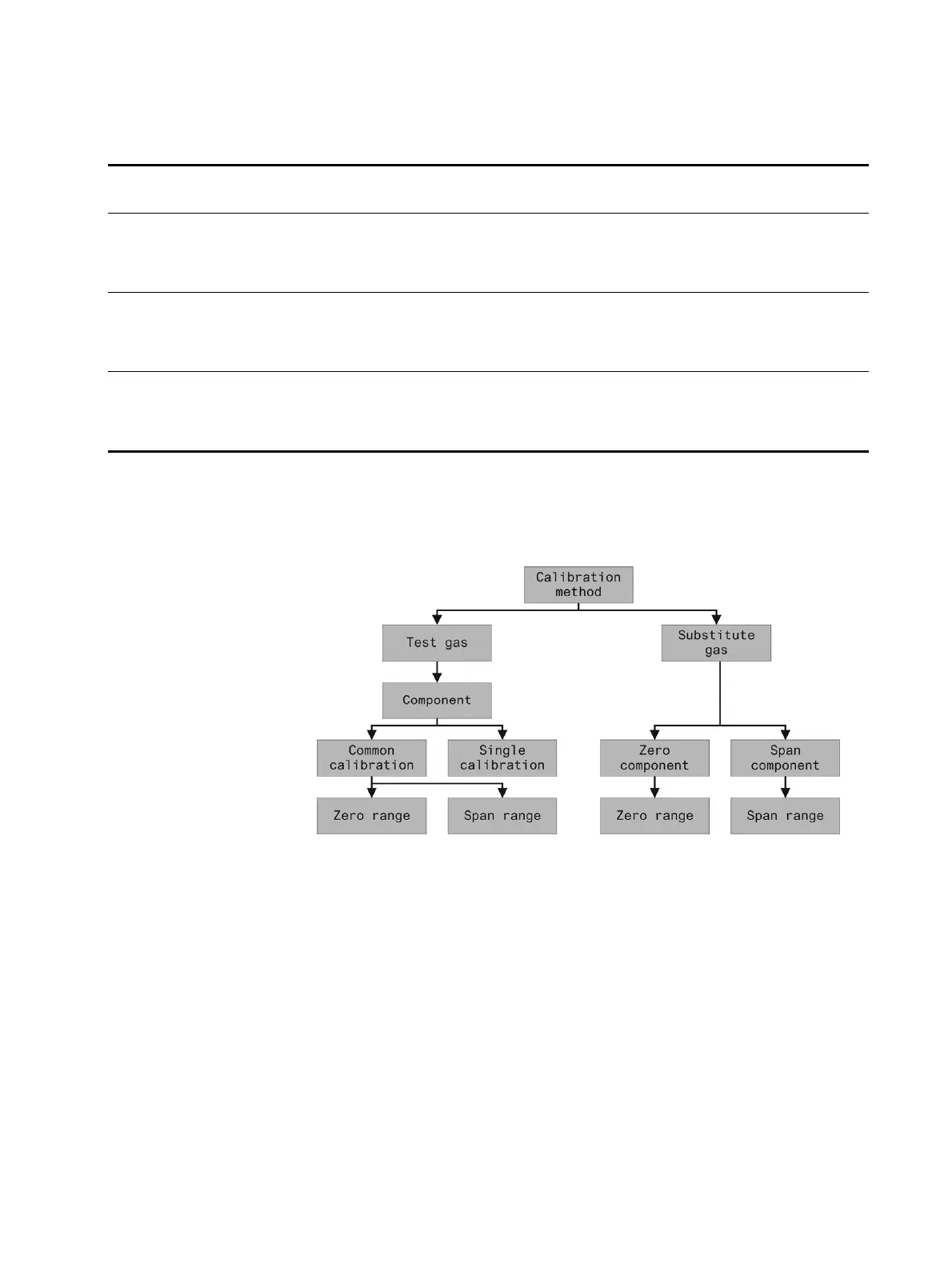

Setting the calibration method
The calibration method can be set separately for the three types of calibra-
tion control (manual, automatic and external).
For common and substitute gas calibration the sample ranges for zero and
span calibration of all three types of calibration control are adjusted jointly.
For substitute gas calibration the zero and span calibration components
should also be set.
