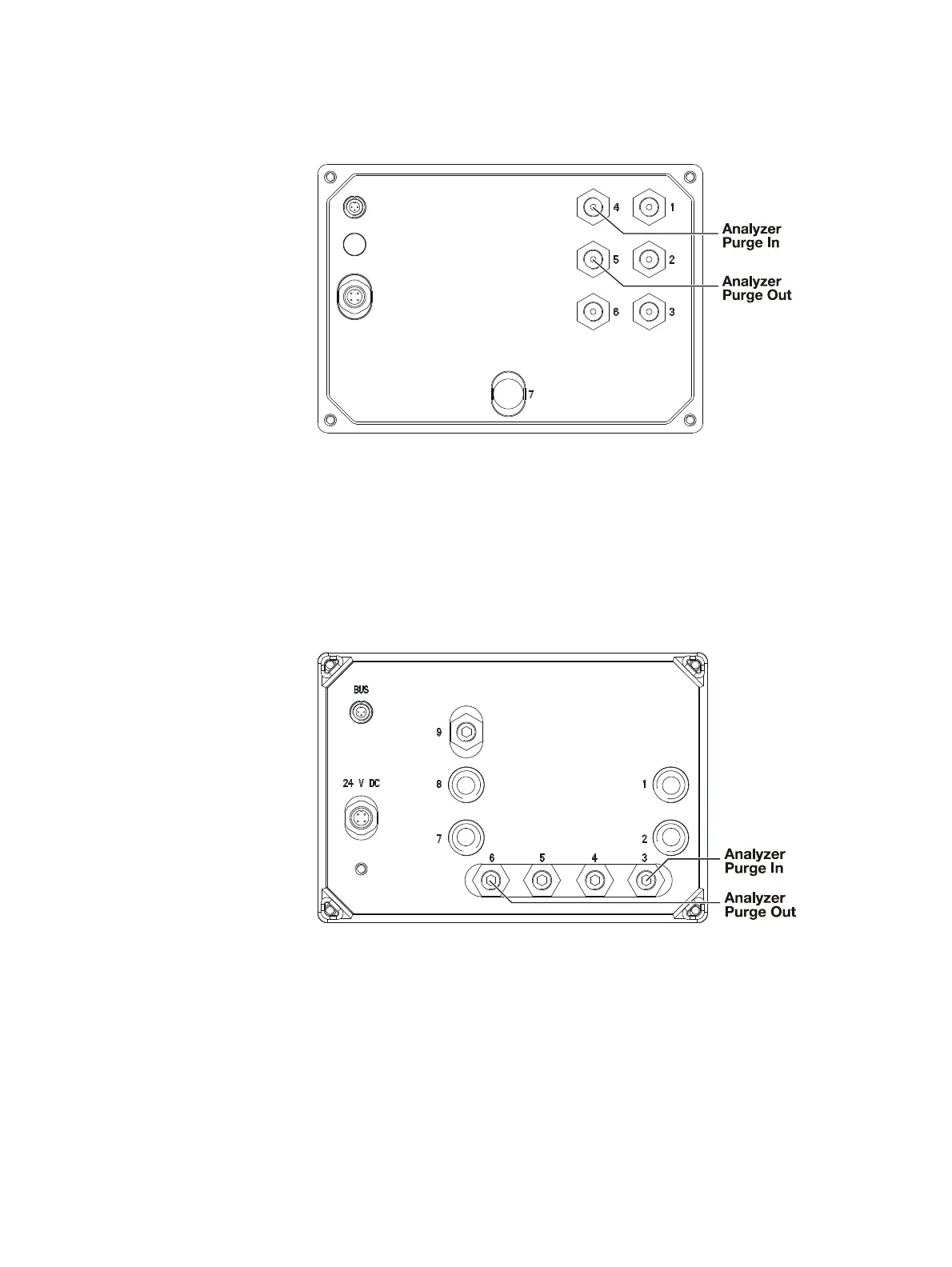

Gas connections
Limas11 IR
1
Sample gas inlet
2
Sample gas outlet
3
Purge gas inlet for housing
4
Purge gas inlet sample cell windows "Analyzer Purge In". Connect needle
valve upstream to adjust the purge gas flow rate to 15 to 20 l/h
5
Purge gas outlet flow monitoring "Analyzer Purge Out"
6
Purge gas inlet for housing
7
Pressure sensor (option)
Uras26
1
Sample gas inlet optical beam path 1
2
Sample gas outlet optical beam path 1
3
Purge gas inlet sample cell windows "Analyzer Purge In". Connect needle
valve upstream to adjust the purge gas flow rate to 15 to 20 l/h
4
Purge gas inlet for housing
5
Purge gas inlet for housing
6
Purge gas outlet flow monitoring "Analyzer Purge Out"
7
Sample gas outlet optical beam path 2
8
Sample gas inlet optical beam path 2
9
Pressure sensor (option)
