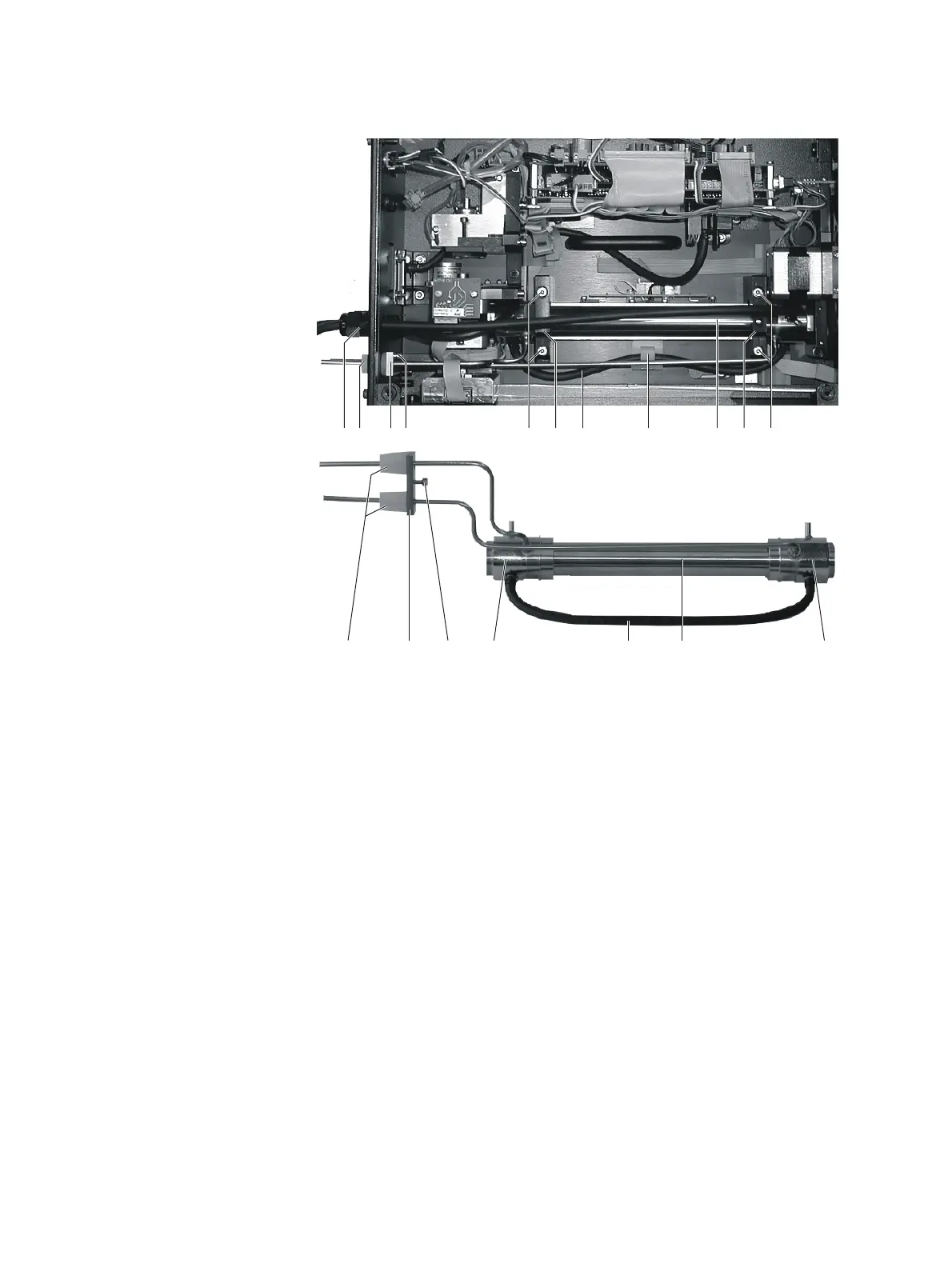

Safety cell in the analyzer module
3
4
21
5
6 78 6
5
9
10 11
7
3
4
2
9
1
Couplings of the purge gas lines
2
Plug
3
Retaining board
4
Screw
5
Screws
6
Mounting bracket
7
Purge gas hose
8
Fixing device
9
Sample cell
10
Beam guide
11
Beam guide
When should the sample cell be cleaned?
Sample cell contamination can result in unstable measurement values due to
low lamp intensity (see section "Limas11 IR, Limas21 UV, Limas21 HW: Trou-
bleshooting" (see page 339)).
Status messages
When beam intensity becomes too low the appropriate status messages
(see page 322) will be displayed.
