AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B 31

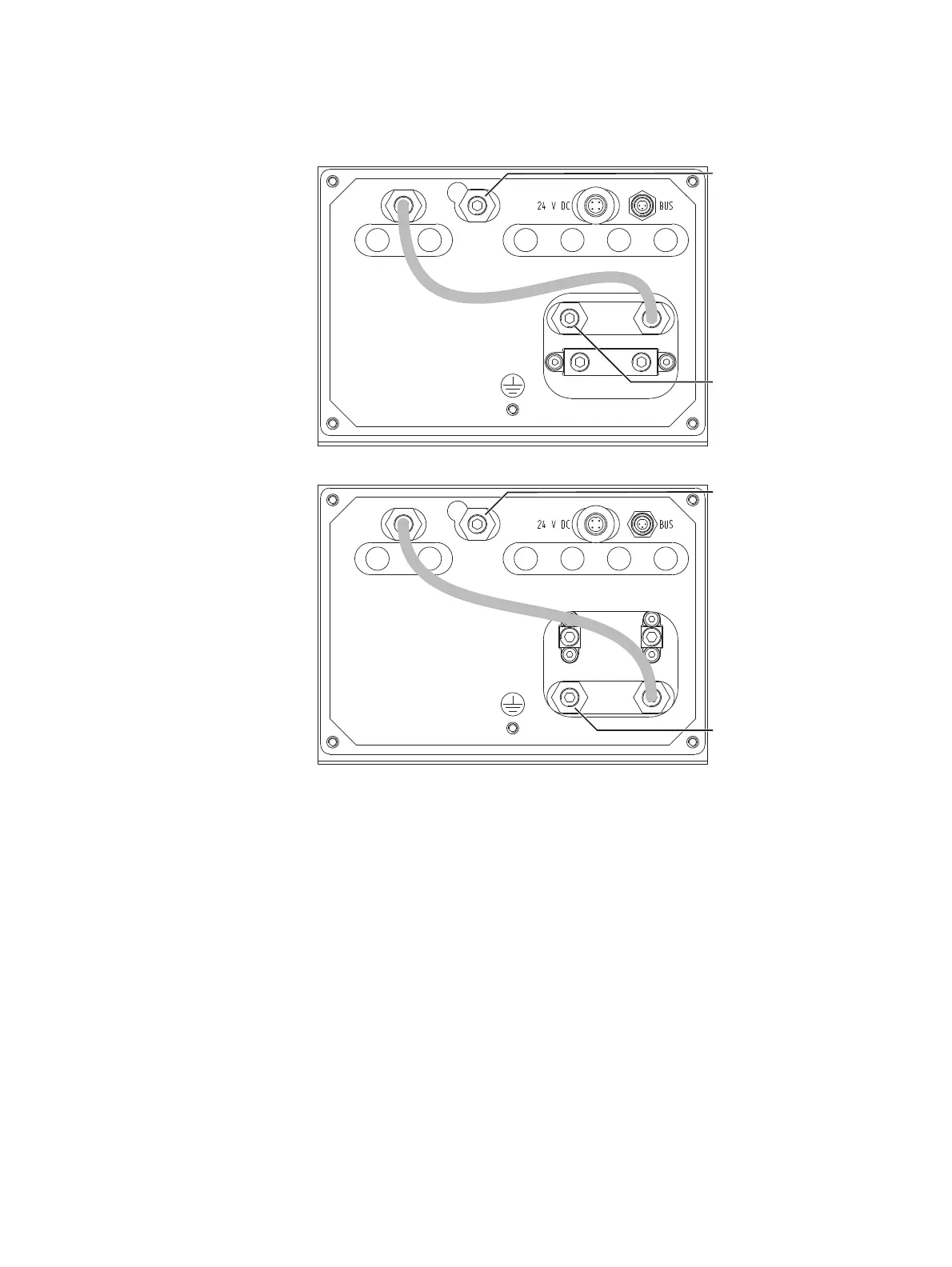

Gas connections
Caldos25, Caldos27
1
2
34
7
8910
12 11
14
13
Analyzer
Purge In
Analyzer
Purge Out
Magnos206
12
34
13
14
12 11 10 9 8 7
Analyzer
Purge In
Analyzer
Purge Out
1
Sample gas inlet
2
Sample gas outlet
3
Purge gas inlet thermostat chamber "Analyzer Purge In". Connect needle
valve upstream to adjust the purge gas flow rate to 15 to 20 l/h.
4
Purge gas outlet thermostat chamber, ex works tubed with 13
7
Purge gas inlet for housing
8
Purge gas inlet for housing
9
Pressure sensor
10
Pressure sensor
11
unused, closed off
12
unused, closed off
13
Purge gas inlet flow monitoring
14
Purge gas outlet flow monitoring "Analyzer Purge Out"
