3 OPERATOR VIEWS
3.1 View Set Points
View Set Points
This page shows alarm set points. The value of each of the set points is shown, together
with the name of the parameter it's assigned to.
Alarm assignments, set point values and relay/LED actions are programmable – see
Section 5.4. Those shown in the following frames are examples only.

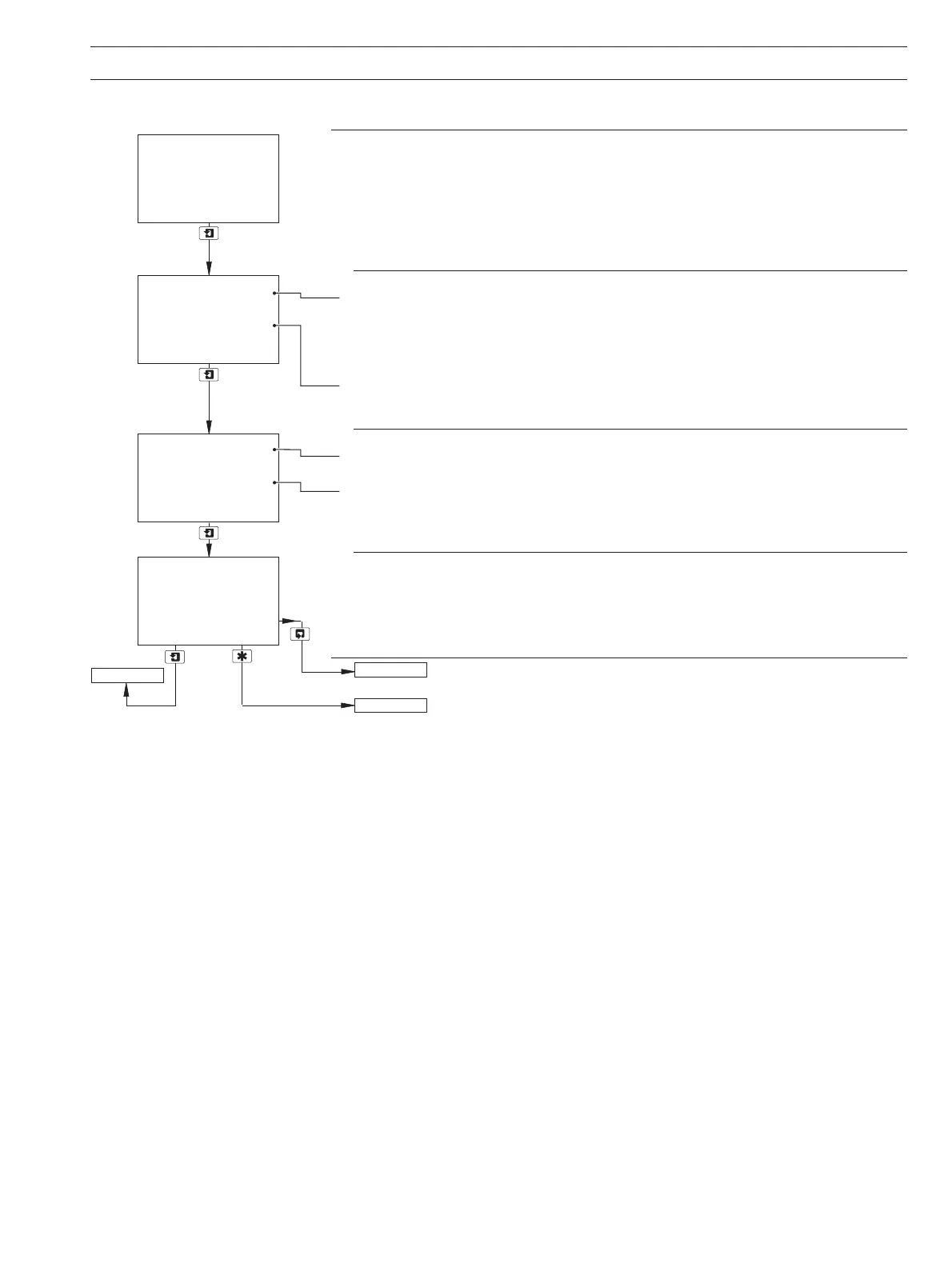

Alarm 1 Set Point
Alarm set point in inferred units, e.g.
Colour (H). For units available, refer to Inferred Units
in Section 5.3. The units displayed alternate between the inferred units selected (see
Section 5.3) and the alarm assignment indication (
Sen. A [or Sen. B – dual input monitors
only]) – see Section 5.4.
Alarm set point in units selected for display – see
Displayed Units in Section 5.3.
Alarm 2 Set Point
Alarm set point assignment – see Section 5.4.
Alarm set point in units selected for display – see
Displayed Units in Section 5.3.
Note. Inferred Units for Sensor B (dual input monitors only) set to None –see Section 5.3.
Alarm 3 Set Point
See Section 3.2.
See Section 4.2.
10.00
mg/l C
A1: Setpoint
4.20
Sen. A
Sen. B
VIEW SETPOINTS
-----
10.25
mg/l C
A2: Setpoint
Sen. B
3.500
mg/l C
A3: Setpoint
VIEW OUTPUTS
SENSOR CAL
VIEW SETPOINTS
