ABB AV410 - Installing the Optional De-Bubbler

36
…6 INSTALLATION
Note. The de-bubbler MUST be mounted
vertically with the flow upwards.

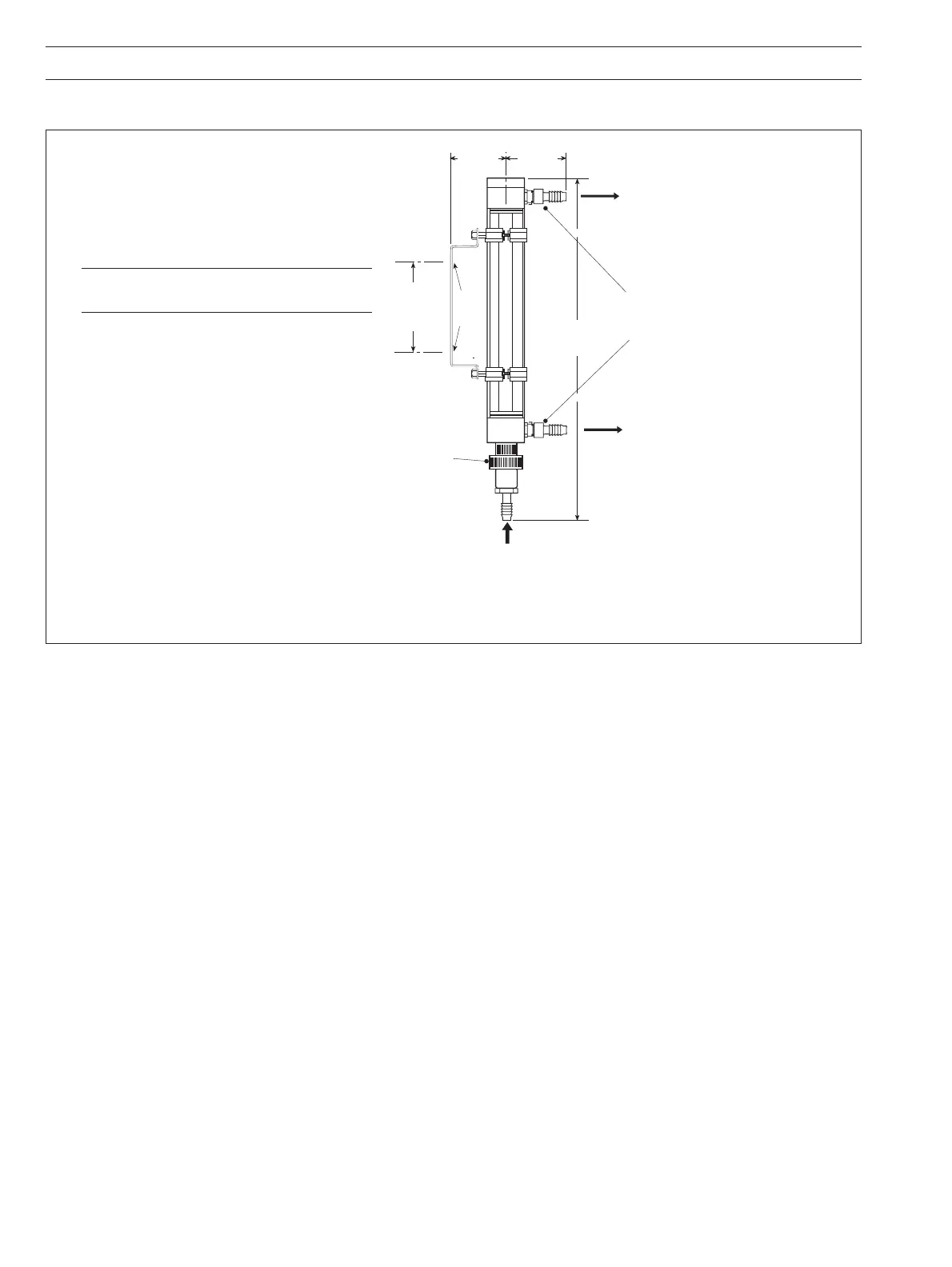

Fig. 6.6 Overall Dimensions
6.4 Installing the Optional De-bubbler – Figs. 6.6 and 6.7
De-bubbler
Part Number
7997 500
91
(3.58)
150 (5.9)
between
centers
Removable Fitting
88
(3.47)
ø6.5
(0.26)
Sample Outlet
Quick-release Fittings
(12 [0.47] i.d. flexible hose connections
– rotatable through 360
540
(21.26)
Sample Inlet
(12 [0.47] i.d. flexible
hose connection)
Drain Outlet
Dimensions in mm (in.)
