ABB AV410 - Access to Terminals

41
6 INSTALLATION…

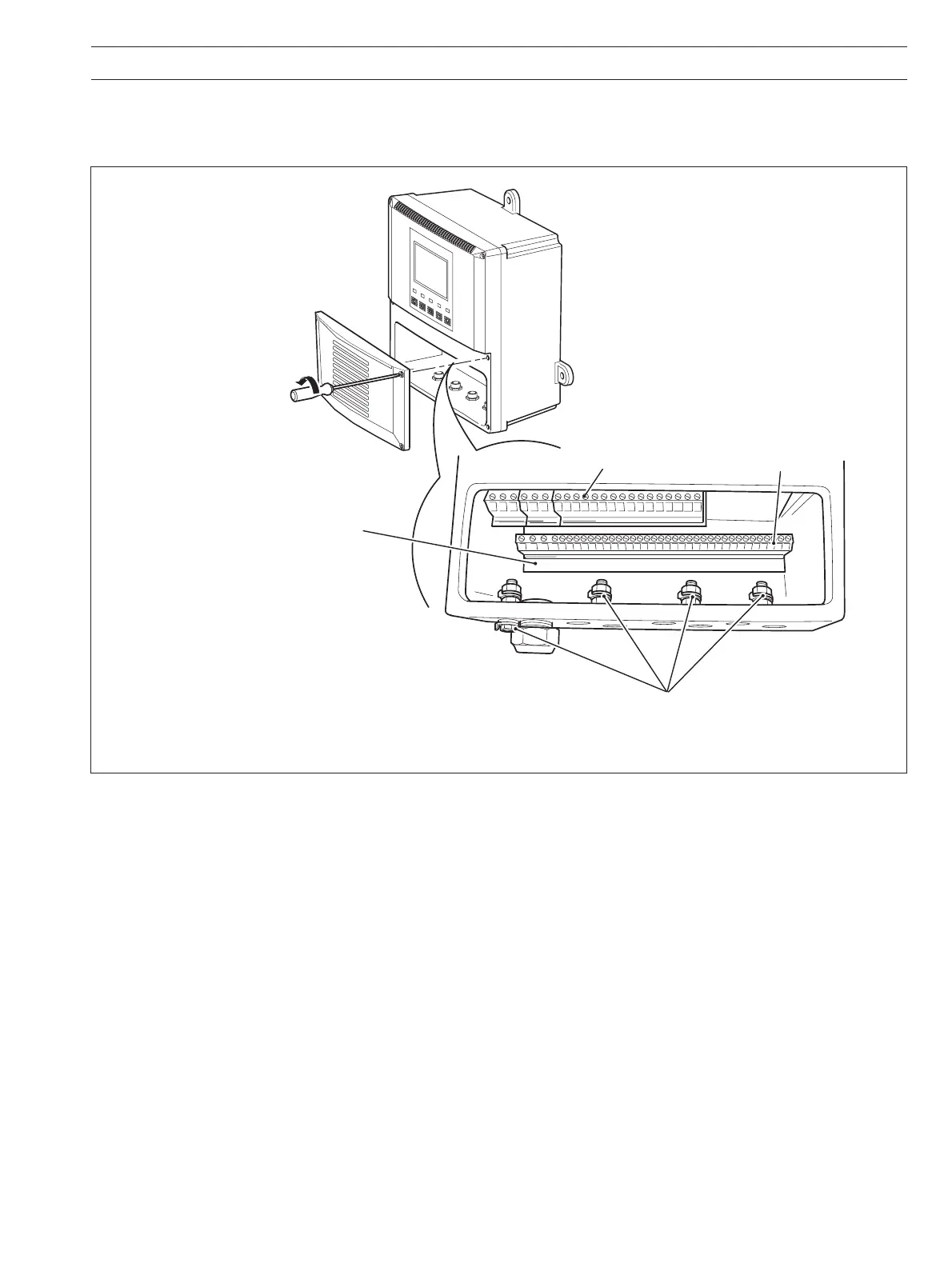

Fig. 6.10 Access to Terminals
…6.5 Electrical Connections
6.5.3 Access to Terminals – Fig. 6.10
Terminal Block A
Terminal Block B
Terminal Block C
Case Earth
(Ground) Studs
Release the four captive
screws and remove
the terminal cover plate
