25

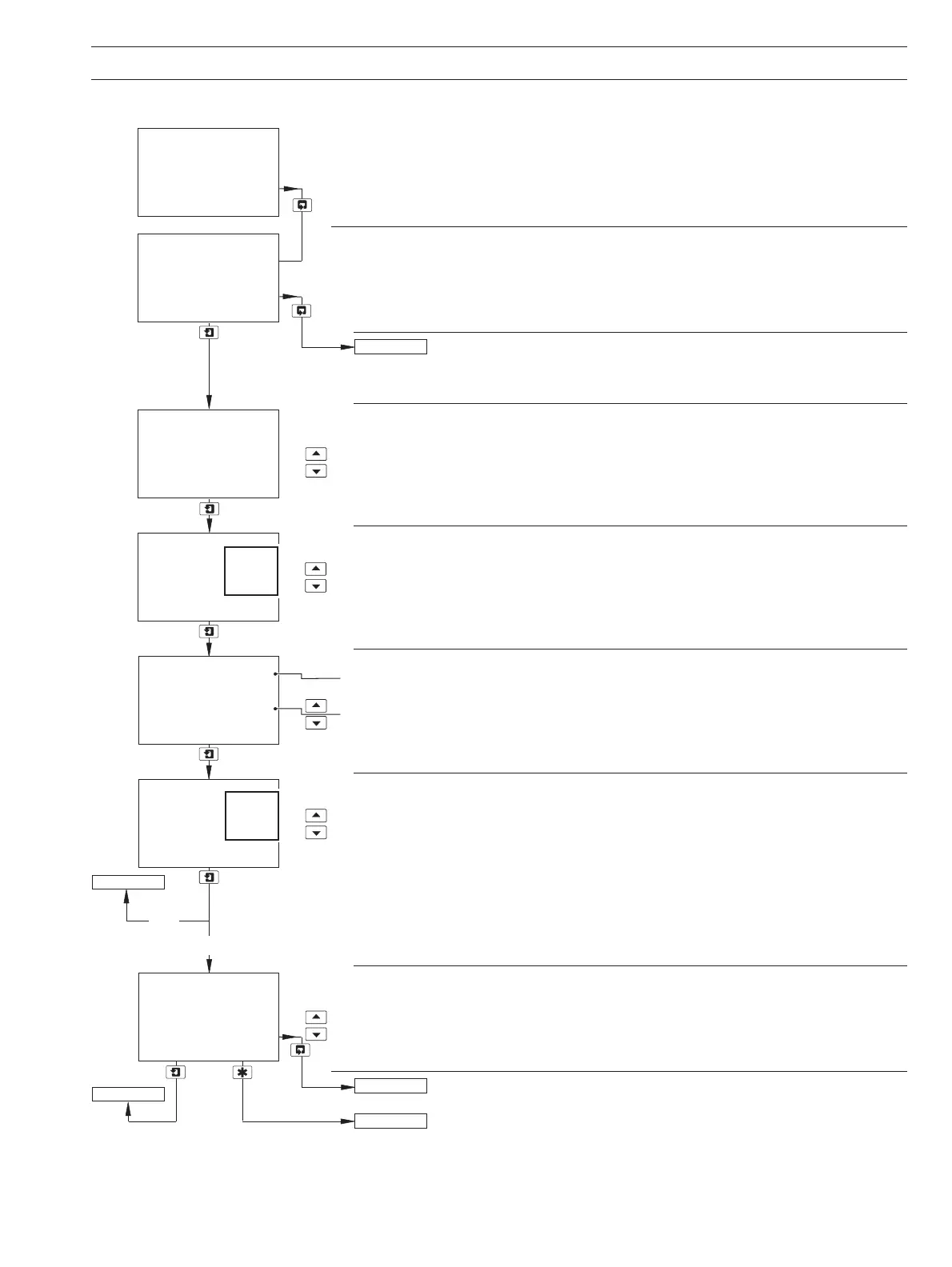

5.5 Configure Outputs
Configure Output 1
Output 2 configuration is identical to Output 1 configuration.
Assign
Select either Sensor A (
Sen. A) or Sensor B (Sen. B).
Range
Select the analog output current range for the selected output.
Span Value
Inferred units. Displayed only if
Infer. Units set to anything other than None – see Section 5.3.
Adjust the displayed reading to the required span value. Low range between 5.00 and
20.00 and high range between 20.0 and 100.0
Default Output
Select the system reaction to failure:
Off – Ignore failure and continue operation.
On – Stop on failure. This drives the analog output to the level set in the Default Val
frame below.
Hold – Hold the analog output at the value prior to the failure.
Default Value
The level to which the analog output is driven if a failure occurs.
Set the value, between 0.00 and 22.00mA.
Configure Output 2.
See Section 5.6.
5 PROGRAMMING…
Config. Output 1
-----
AO1: Assign
-----
AO1: Range
-----
CONFIG. OUTPUTS
-----
Sen. A
0-20mA
0-10mA
4-20mA
Config. Output 2
AO1: Span Value
28.00
°H
14.00
mg/l C
AO1: Default
-----
mA
Hold
On
Off
AO1: Default Val
12.00
mA
CONFIG. CLOCK
Config. Output 2
Config. Output 1
Config. Output 1
On
Off
or
Hold
To Next Page
