AWT420 | UNIVERSAL 4-WIRE, DUAL-INPUT TRANSMITTER | OI/AWT420-EN REV. B
… 13 Configuration (Advanced access level)

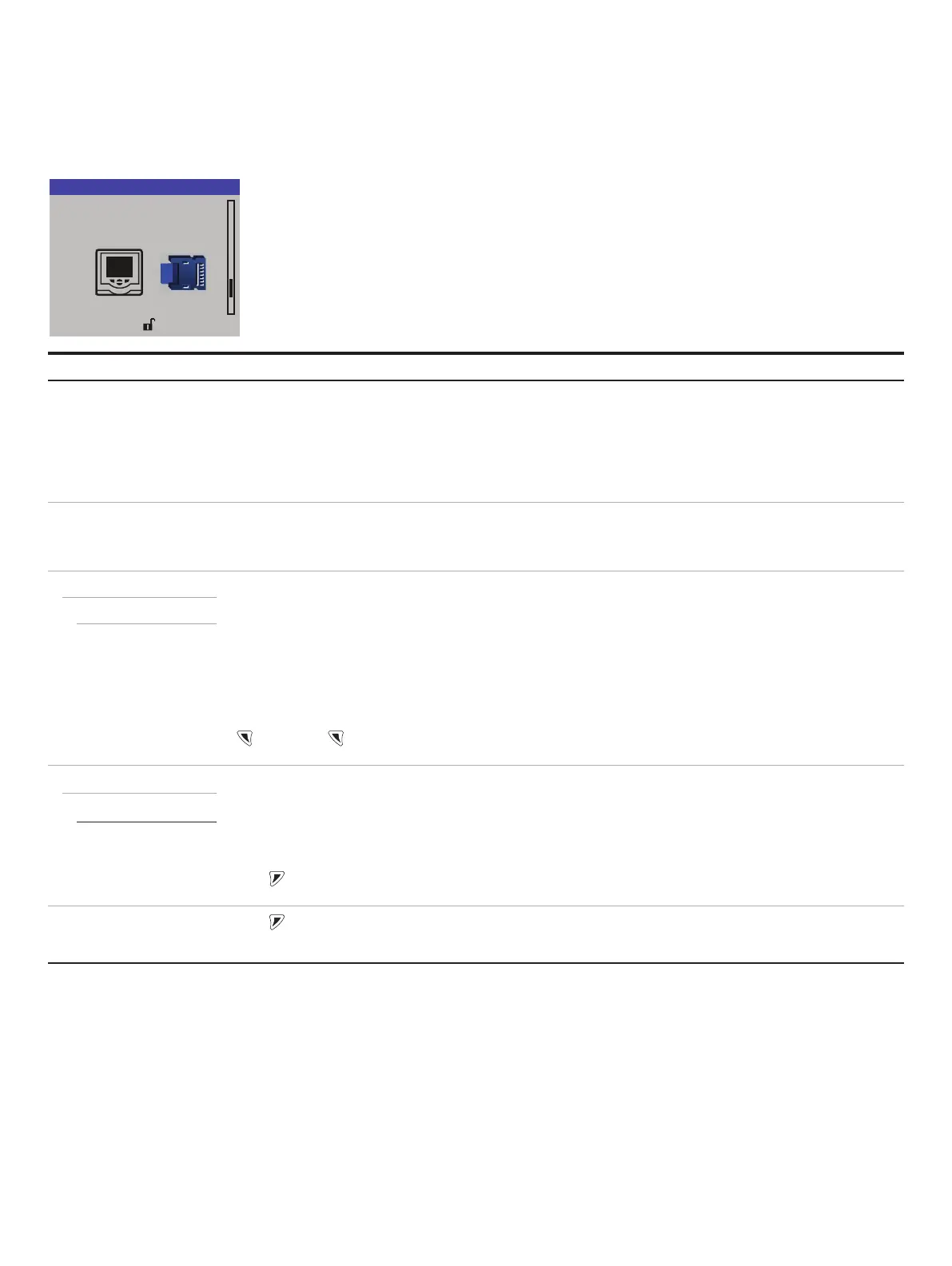

Media Card
Used to enable/disable data logging, select the source of the data to be logged,
save and load configuration files and to format external media.
Menu
Comment Default
Data Logging
Channel 1 (to 6) page <?> for sources.
Sampling Time Select the sampling duration time:
• 
• 
• 

Note. 
Save Configuration
Select File
Config1 (to 8) Select a position in which to create and save a configuration file containing user-defined sensor
parameters to external media.
.
Either overwrite the existing file or select a new position in which to save it.
Note. Wait until the progress bar is complete and the OK soft key prompt reappears before pressing
the key. Pressing during a save operation cancels it prematurely resulting in an unusable
configuration file.
Load Configuration
Select File
Config1 (to 8) Select a position from which to load a configuration file containing user-defined sensor parameters
from external media. The most recently saved file is displayed.
Press the key to display a list of other positions containing configuration files.
Only positions containing configuration files are displayed.
Format Card
Press the key (Yes
Note
Media Card
Exit
Menu
Select
