ABB AWT420 - Wall-Mounting

AWT420 | UNIVERSAL 4-WIRE, DUAL-INPUT TRANSMITTER | OI/AWT420-EN REV. B
9
Wall-mounting

NOTICE
If the optional weathershield D is used, position it between
the transmitter and wall and pass 2 screws C through
fixing holes (both sides) in weathershield.
Referring to Figure 5:
1 Position the left- and right-hand mounting brackets A into
the recesses on the rear of the transmitter as shown and
secure with the bracket securing screws. Ensure the plastic
washers remain in the positions fitted.
2 Mark fixing centers B and drill suitable holes in the wall.
3 Secure the transmitter to the wall using 2 screws C in
each mounting bracket.

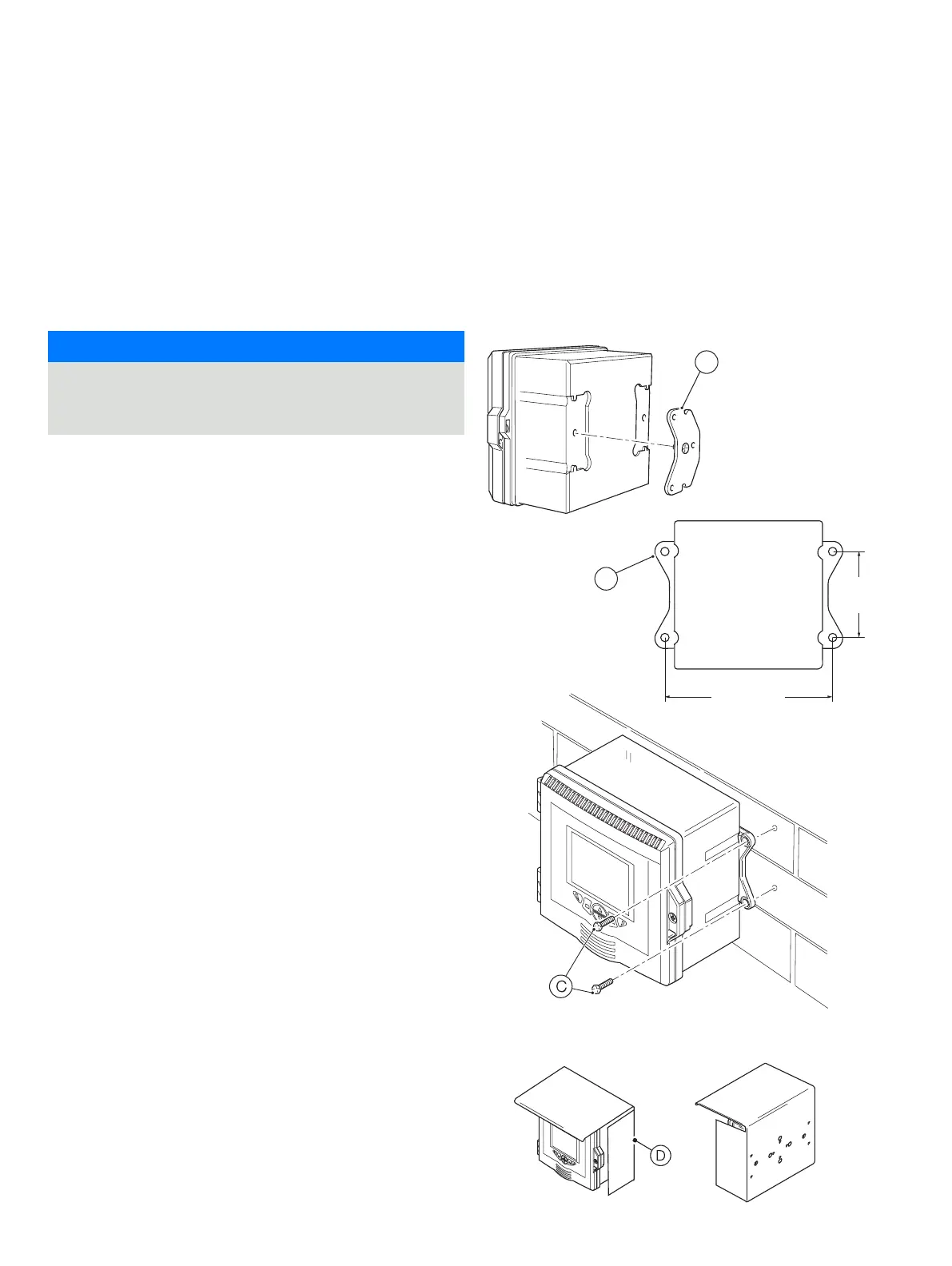

Figure 5 Wall-mounting the transmitter
A
B

right hand bracket omitted
for clarity
62
(2.44)
152 (5.98)
Optional
weathershield
