ABB DCS800 Installation And Start-Up Manual

21
Hardware
3ADW000197R0101 DCS800-R Sel e a
A B
b
a
A B
b
a
X22: X22:
X122: X122:
*
* Fuse data 1A, suitable voltage
EXISTING PART
S1 S2
X12 S
X13 S
X313 S
X413 S
4.7 nF
conductive
mounting holes
V21 V23 V25
V24 V26 V22
thyristor designation of reverse Bridge
DCS8_reb_diagr_wir_p48_p51.dsf
X12: X12: X13: X13: X12: X12: X13: X13:
SDCS-PIN-48
SDCS-PIN-51
* * * *

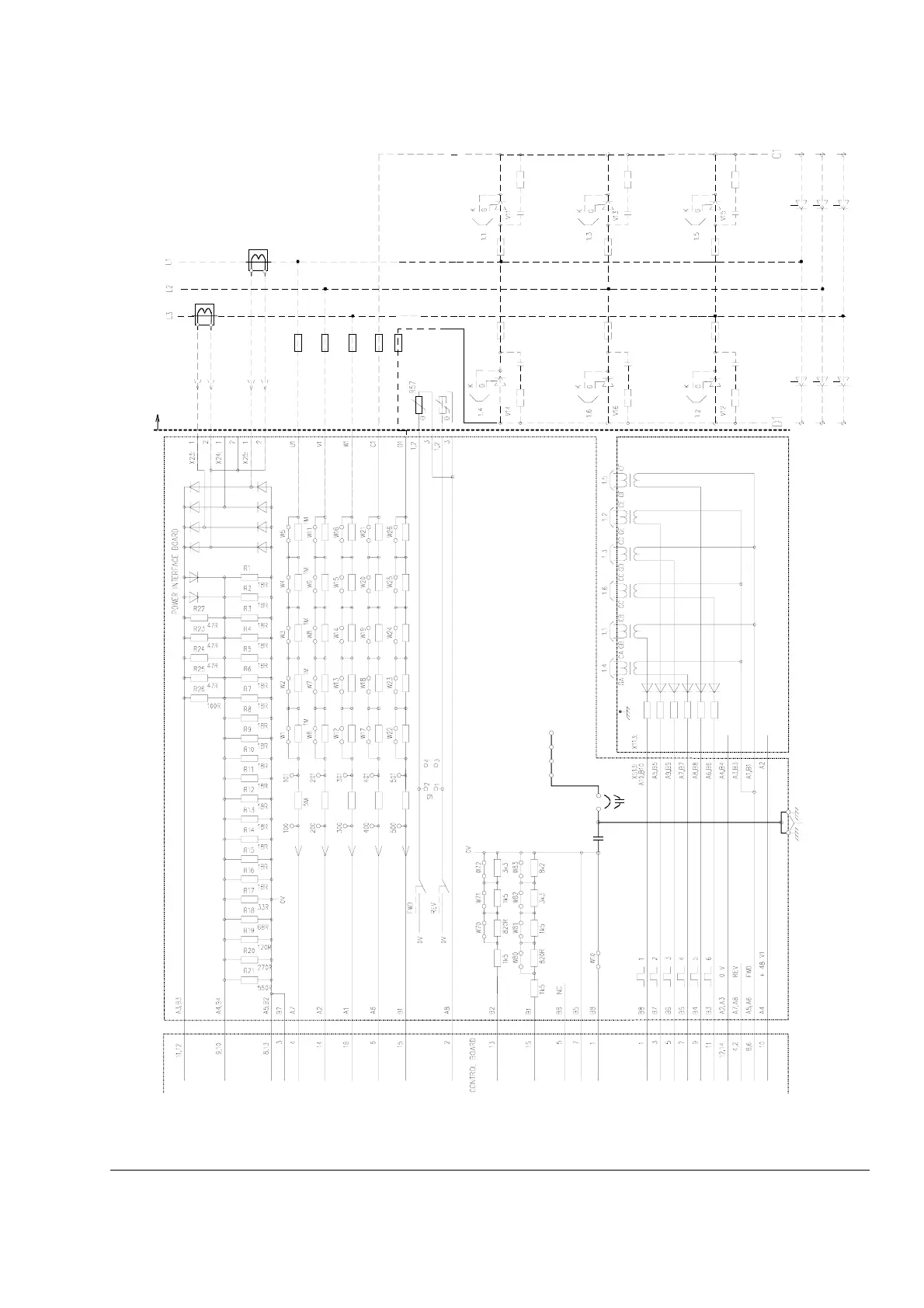

Typical rebuild connection with controller board, SDCS-PIN-48 and SDCS-PIN-51
boards

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
