ABB DCS800 Installation And Start-Up Manual

24
Hardware
3ADW000197R0101 DCS800-R Sel e a
If the ratio of the current transformer is either 2500:1 or 4000:1
The next table lists some burden resistor settings based on two types of current
transformers (2500:1 and 4000:1) and some values for the nominal current I
dN
.
As long as the nominal current of the power stack is close to these cur-
rents and the current transformers are identical as listed below this op-
tion for coding the current should be used!
In such a case remove the jumpers on the SDCS-PIN-51 board according to the
current selected and set parameter S ConvScaleCur (97.02) to exactly that se-
lected rated current.

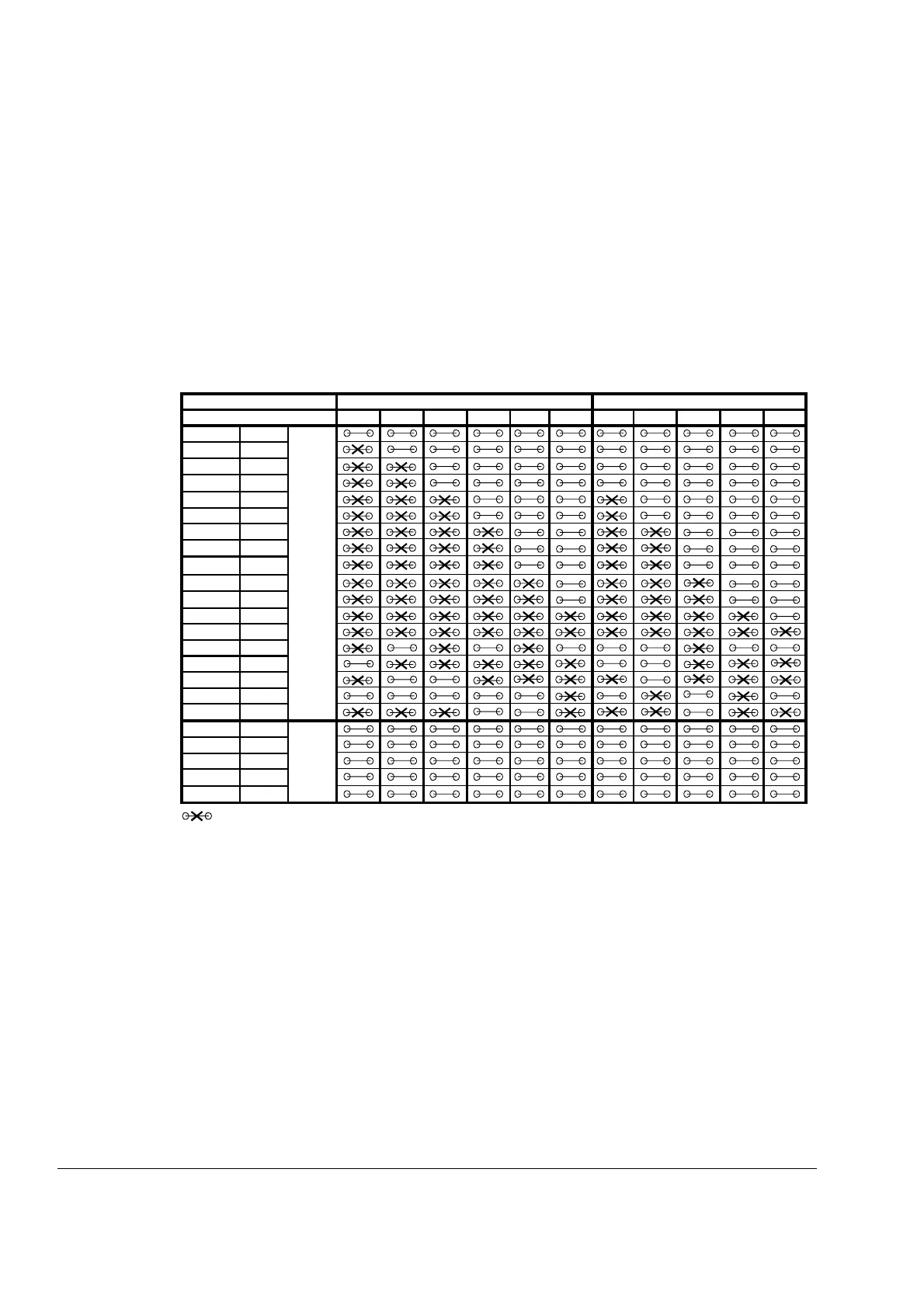

2500:1 4000:1
900 1200 1500 2000 2500 3000 2600 3300 4000
R1-R4
18
Ω
R5
18
Ω
R6 18
Ω
R7
18
Ω
R8
18
Ω
R9
18
Ω
R10
18
Ω
R11
18
Ω
R12
18
Ω
R13
18
Ω
R14
18
Ω
R15
18
Ω
R16
18
Ω
R17
33
Ω
R18
68
Ω
R19
120
Ω
R20
270
Ω
R21
560
Ω
R22
47
Ω
R23
47
Ω
R24 47
Ω
R25
47
Ω
R26
100
Ω
4800 5200
DCS800-R volt & curr coding.dsf
Current transf. ratio
Nominal current I
dN
[A]
Rated current scaling
Zero current
detection
indicates a removed jumper
Hint:
In case a DCS800-R0x will be used to replace a DCR500B or DCR600 keep the
coding of the SDCS-PIN-51 board as done in the past and set parameter 97.02
exactly to that value the SDCS-PIN-51 board was coded.
The zero current detection is done on the controller board SDCS-CON-4. Because
of that the resistors available for that function need not to be coded!
