Automatic calibration: settings
Menu path
‘ Setup / Calibration Data / Autocal. Settings’

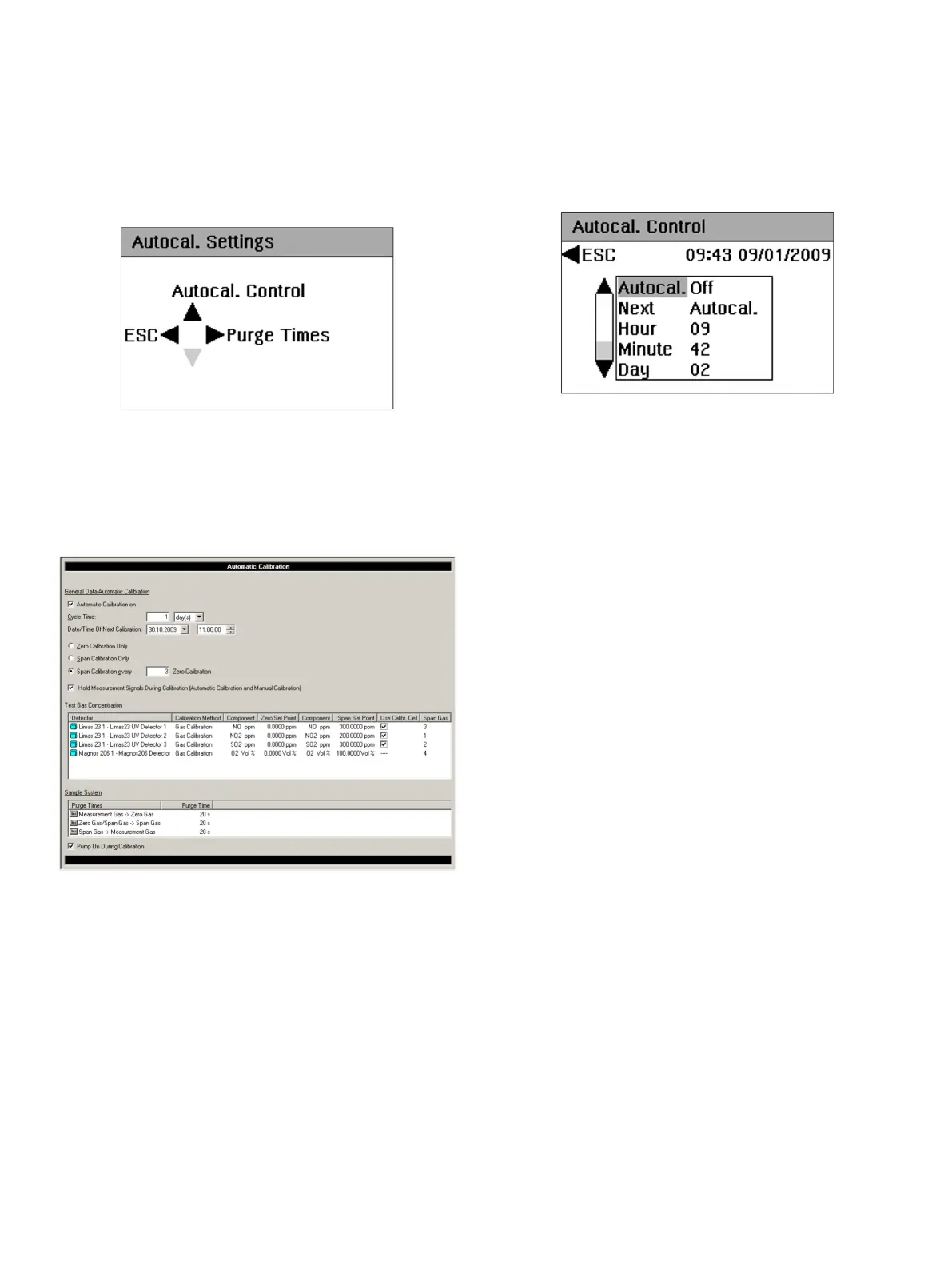

Figure 60: ‘Auto Calibration -settings’ menu
Settings in the configurator and in the device
All automatic calibration parameters can be set in the
configurator.
Part of the settings can also be made directly on the device.
Figure 61: The ‘Automatic Calibration’ menu in the ECT configurator
Controlling the automatic calibration
Figure 62: ‘Automatic calibration Control’ menu
Activation
Automatic calinration is completed only when it is activated.
This ‘Open’ setting is valid for the cyclically time-controlled start
of the automatic calibration; it does not refer to the externally
controlled or manual start.
Cycle time
The cycle time must be set in the configurator.
The cycle time shows the time intervals over which automatic
adjustment is completed.
Date and time of next automatic calibration
The analyzer system completes the next automatic calibration at
the time specified here.
From this moment in time, the cycle period starts to run.
End-point calibration together with zero point calibration
In the configurator, it is necessary to set the cycles in which an
end-point calibration is to be performed together with a zero
point calibration.
Example:
End-point calibration for each 7th zero-point calibration
With a cycle time of 24 hours, this setting initiates a zero point
calibration every day and a end-point calibration once a week.
Note
If the automatic calibration is started manually, a zero point and
end-point calibration is always performed; the configured cycle
for time-controlled calibration is therefore unaffected.
