EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 123
Automatic calibration: manual start
Menu path
‘ Operation / Calibration / Automatic Calibration’

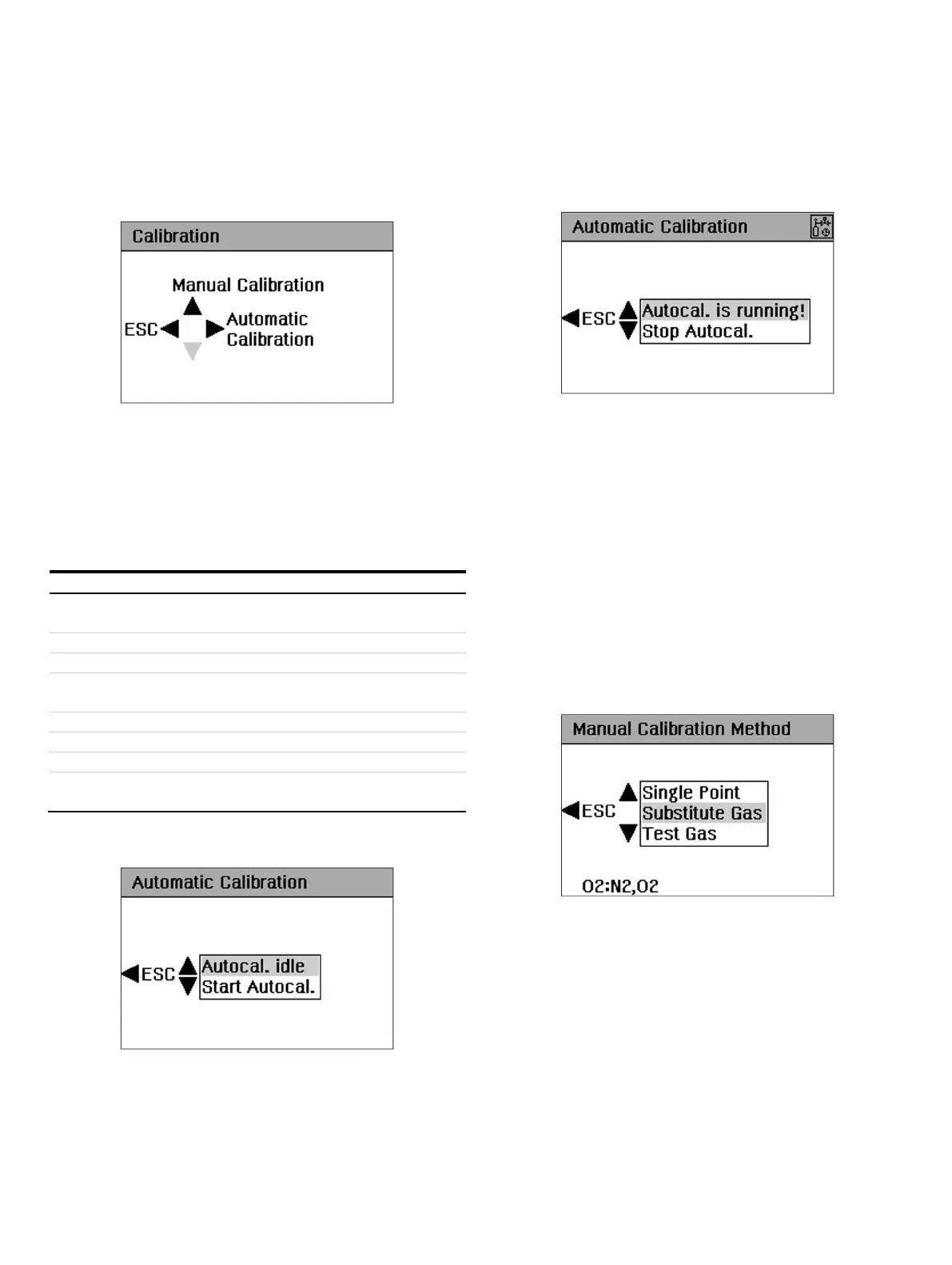

Figure 64: ‘Calibration’ Menu
Wait until the warm-up phase has ended
Analyzer module may not be calibrated until the warm-up phase
has ended.
Duration of the Warm-up Phase
Duration of the Warm-up Phase
Without thermostat: approx. ½ h
With thermostat: approx. 2 h
Approx. 2 hours
< 5 h, The value may be elevated during first
commissioning or after a longer service life.
Approx. ½ h
approx. 2 h, see for detailed information ZO23 –
Commissioning the gas analyzer on page 104.
Manually starting the automatic calibration
Figure 65: Menu ‘Automatic Calibration
Manually aborting the automatic calibration
Figure 66: Menu ‘Automatic Calibration
Note
When automatic calibration is aborted, the analyzer module is in
an undefined state (in reference to the calibration).
For example, the zero point calibration may have been
completed and calculated, but the end-point calibration has not
yet been carried out. For this reason, automatic calibration will
have to be restarted and allowed to run to completion after any
cancellation of automatic calibration.
Manual calibration: calibration method
Menu path
‘ Setup / Calibration Data / Manual Cal. Method’
Figure 67: ‘Manual calibration method’ menu
The calibration method can also be set in the Configurator.
