Presentation of the categories
In the status message list and the detailed view of the individual
status messages, the categories are displayed by the following
icons:
Symbol
Status Messages Requiring
Acknowledgment
Status Messages Not Requiring
Acknowledgement
The status message is not
acknowledged.
The status message has occurred
(detailed view).
The status message is
acknowledged.
—
— The status message has expired
(detailed view).
The status message is inactive
(message list).
Acknowledging status messages
Status messages subject to acknowledgment must be
acknowledged by selecting ‘OK’.
This can be done in the message list as well as in the detailed
view.
Status messages on the LCD display
Menu path
‘ Maintenance /  Diagnosis /  Device Status /  Status
Messages’

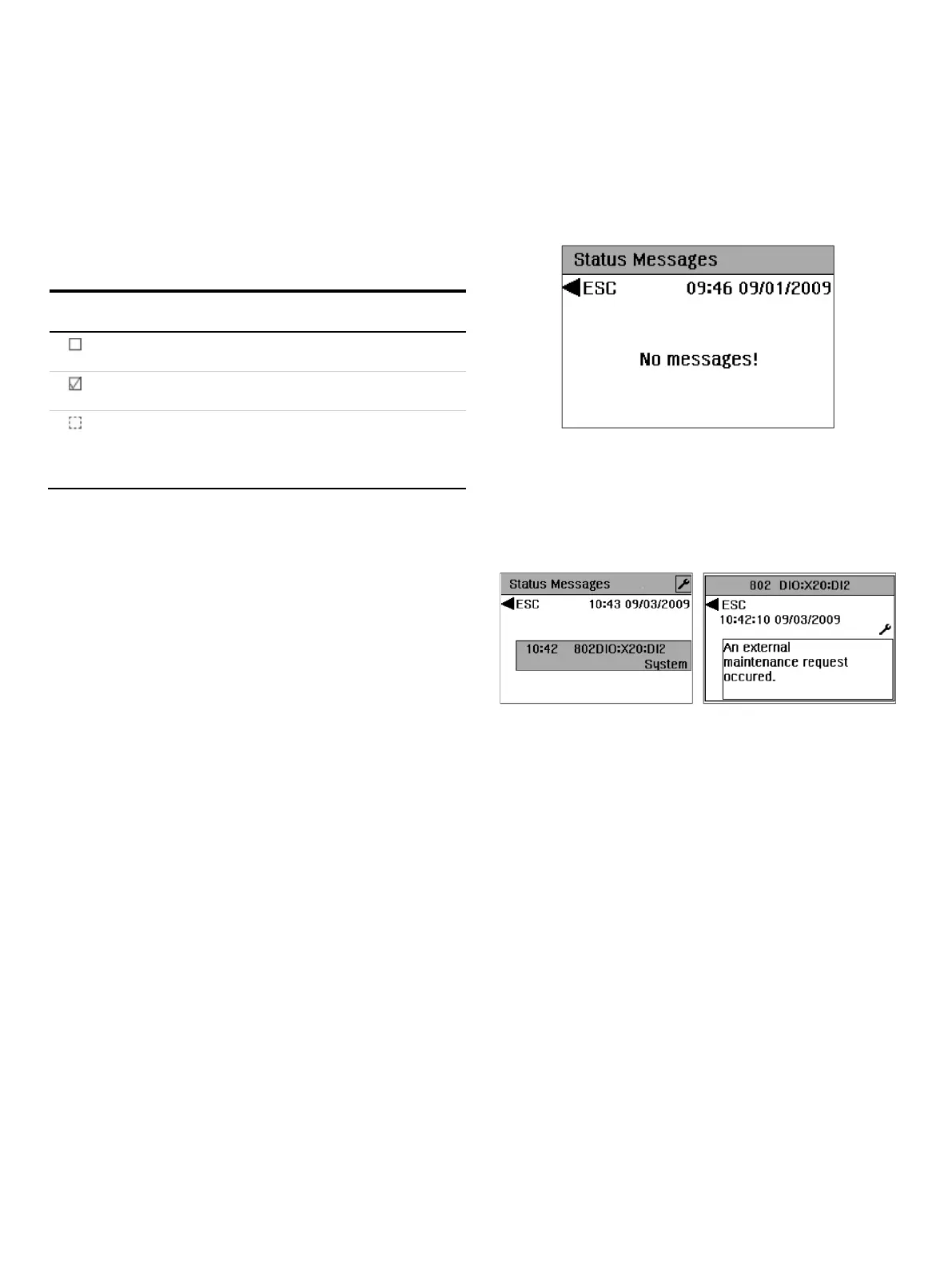

Figure 88: Menu ‘Status Messages’
When a status message is active, the message list display is
called up directly by pressing the  button once.
Message list and detailed view
Figure 89: List of status messages and detailed view
The message list with the short text of the status messages is
displayed in the ‘Status Messages’ menu.
By pressing the  button, the detailed view of the individual
status messages is displayed; in the detailed view, the time and
date of occurrence, as well as cancellation or acknowledgment of
the status message are displayed.
Note
For a detailed description of errors and troubleshooting
instructions, please see Possible status messages on page 168.
