EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D 13
3 Design and function
Housing designs
EL3020, 19" plug-in unit in IP 20 (IP 40) design EL3040, field mount housing in IP 65 design
optionally as an explosion proof variant
LCD indicator
Gas and electrical connections

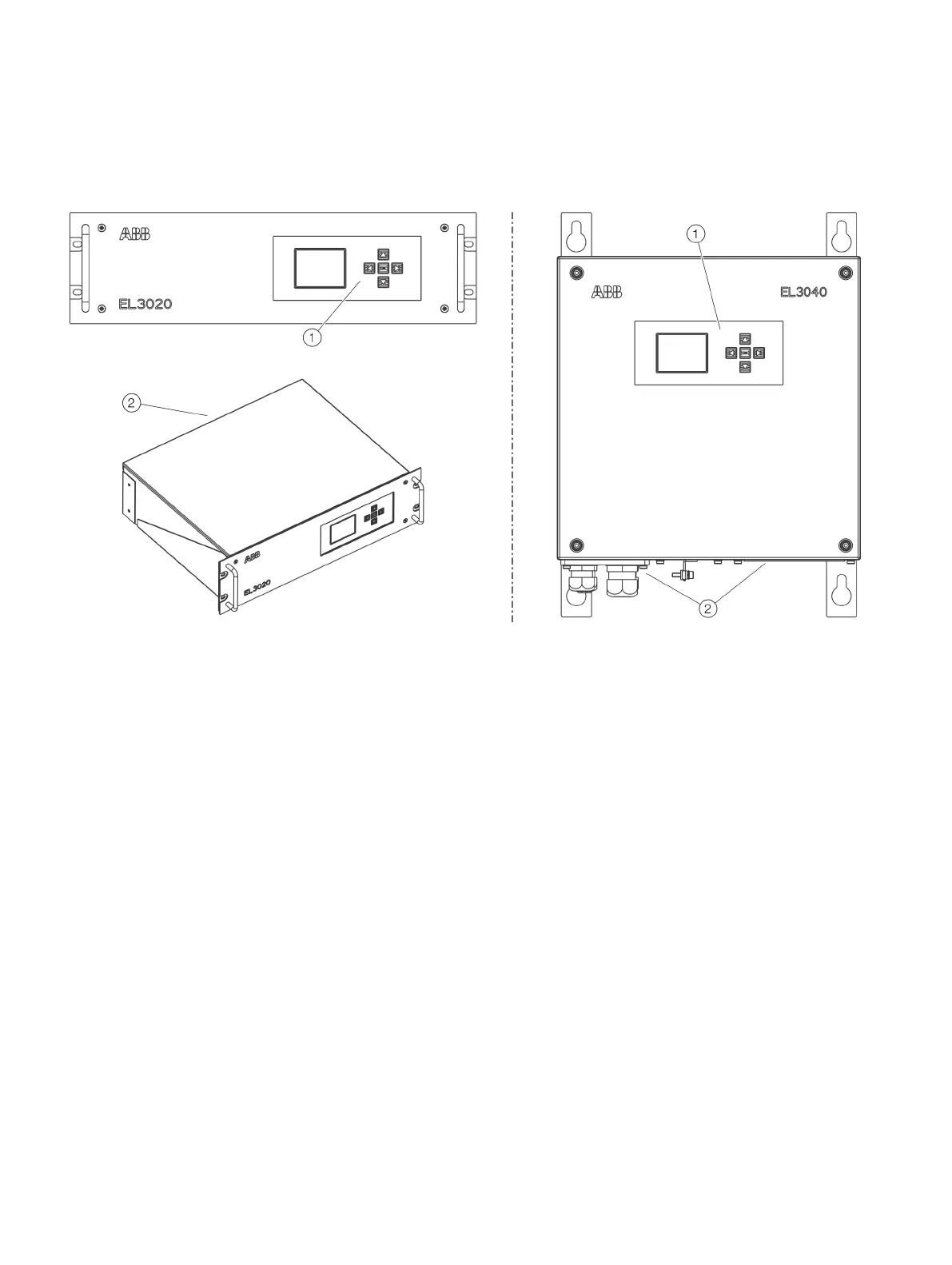

Figure 1: EasyLine EL3000 housing designs
The EL3020 gas analyzer model features a 19” housing with 3 HU (4 HU with Magnos27) and IP rating IP 20 (IP 40 in the version for
emissions monitoring).
The housing for the EL3040 gas analyzer model is designed as wall-mount housing with an IP rating of IP 65.
