Component Selection List

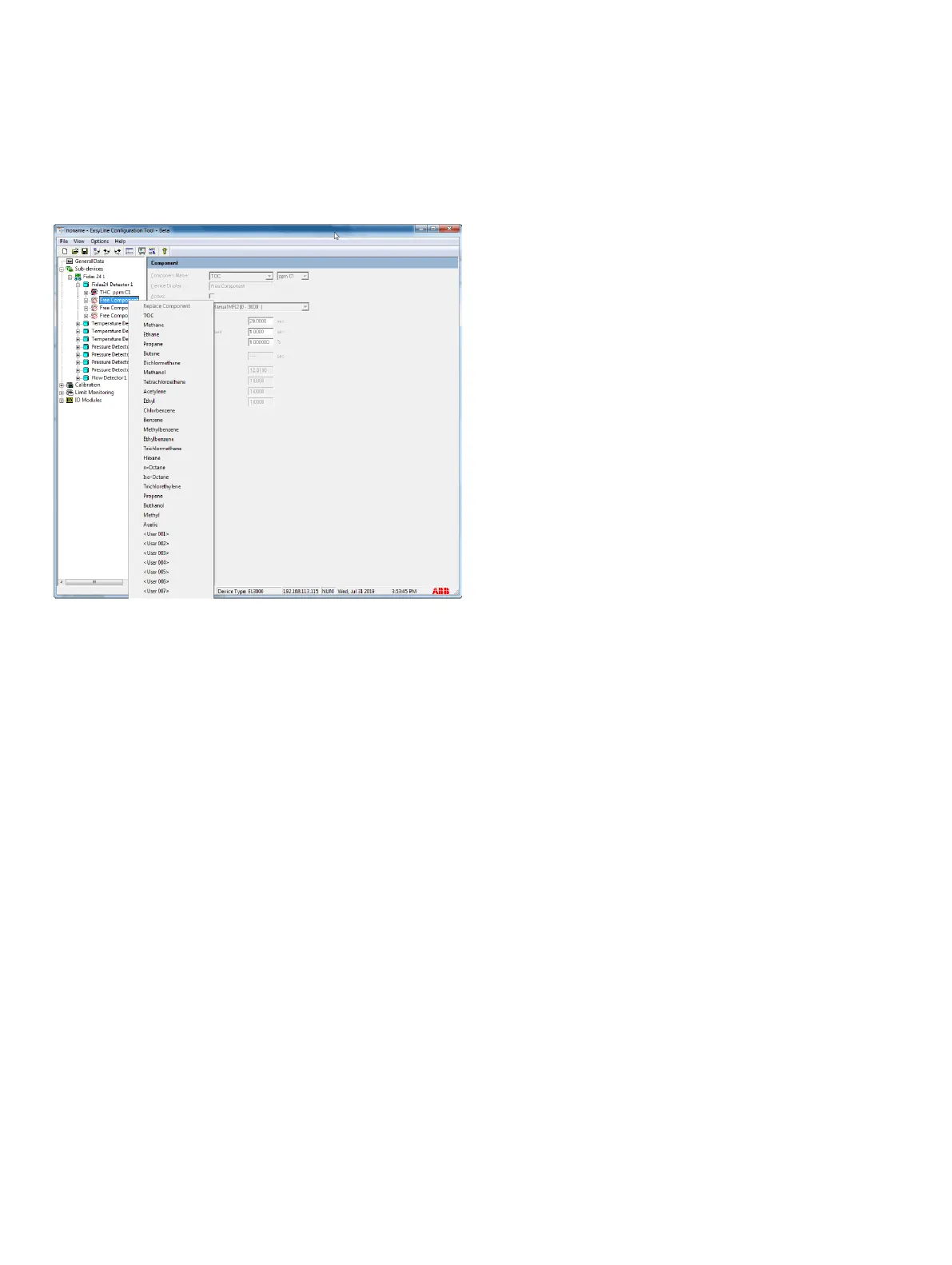

Figure 82: Component Selection List in ECT
The Component Selection List contains all system and user
components. A maximum of 4 sample components can be
selected from this list, configured as needed and (as a
component list) transmitted to the gas analyzer; one of these
sample components is selectedas the active component (see
Active component selection on page 149).
Requirements
The ECT software tool has been started, communication to the
gas analyzer has been made, and the configuration data has
been transferred from the gas analyzer to ECT.
Adding a Component
Adding a System Component:
1. In ECT, in the tree structure, right-click on a ‘Free
Component’ entry.
2. Select a system component in the component selection
list and left-click it with mouse to transfer it to the tree
structure.
3. Check and change the physical unit as needed.
4. Check the measuring range and configure if necessary.
Adding a User Component
1. In ECT, in the tree structure, right-click on a ‘Free
Component’ entry.
2. In the component selection list, select a user component,
for example <User 001>, by left-clicking with the mouse in
the tree structure.
3. Overwrite the entry (e.g. <User 001>) in the ‘Component
Name’ field with the component name.
The text that appears in the display of measured values
will be displayed in the ‘Device Display’ field.
Note
The physical unit cannot be selected until the parameters
have been configured in step 4.
4. Enter the values for the molar mass, response factor C-
atom count and K-factor parameters.
5. Select the physical unit.
6. Check and change the other parameters as needed.
7. Check the measuring range and configure if necessary.
