64 EL3000 CONTINUOUS GAS ANALYZERS | OI/EL3000-EN REV. D
… 5 Installation
… Position and design of the gas connections
Gas connections Limas23 with Magnos206 (model EL3040)
+

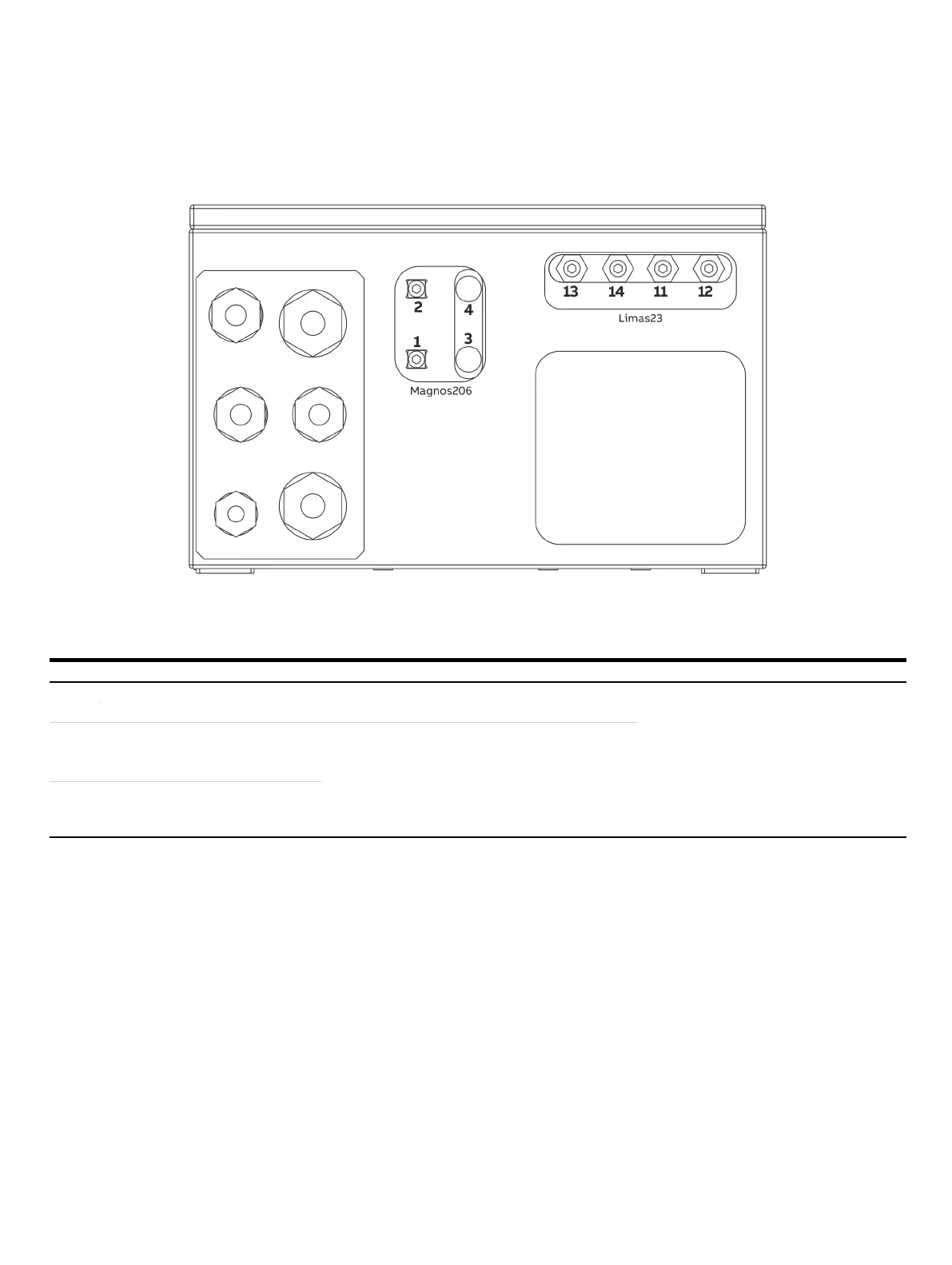

Figure 17: Gas connections Limas23 with Magnos206 (model EL3040)
Limas23: Gas connections
Pos.
Connection
Supplementary information
Version
13
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
14
Sample gas outlet
—
11
Pressure sensor
For
‘Pressure sensor connected to the outside by hose’
option
Purge gas inlet (housing)
Not for ‘Pressure sensor connected to the outside by hose’
option
12
Purge gas outlet (housing)
Note
• The oxygen sensor is not possible in combination with Magnos206
• The pressure sensor (default, not used with the "pressure sensor outwards" option is internally connected at the output of the
sample cell.
