Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.7 Removing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
Dismantling the wall insert

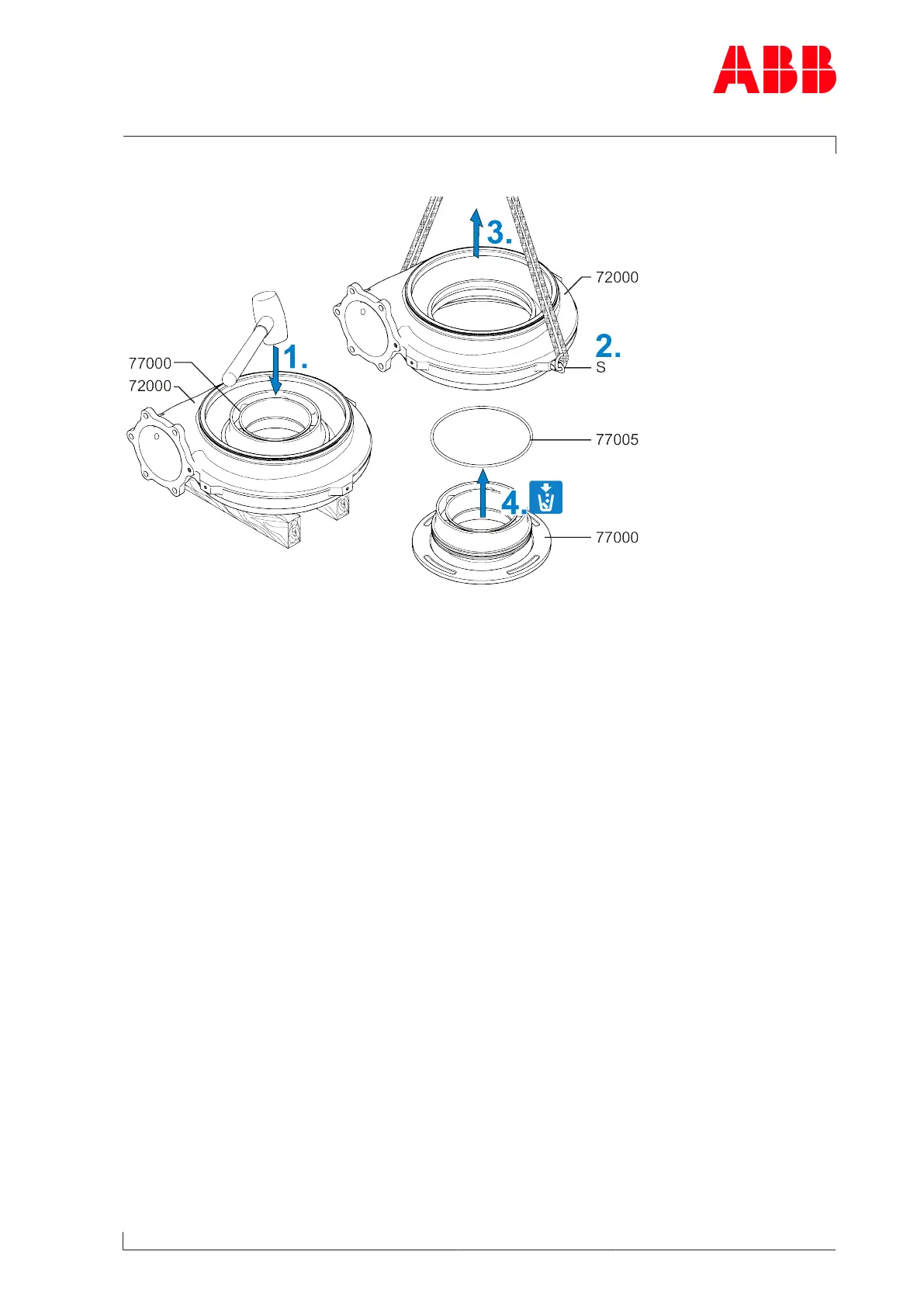

Fig.46: Dismantling the wall insert
1. Knock the wall insert(77000) out of the compressor casing(72000) with a plastic tip
hammer.
2. Attach swivel lifting eye(S) to the compressor casing(72000) and the lifting gear.
3. Lift up the compressor casing(72000).
4. Remove and dispose of the O-ring(77005).
Page 99 / 149
