Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.15 Installing the cartridge group
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
9.15 Installing the cartridge group
Lifting the cartridge group and rotating it by 90°

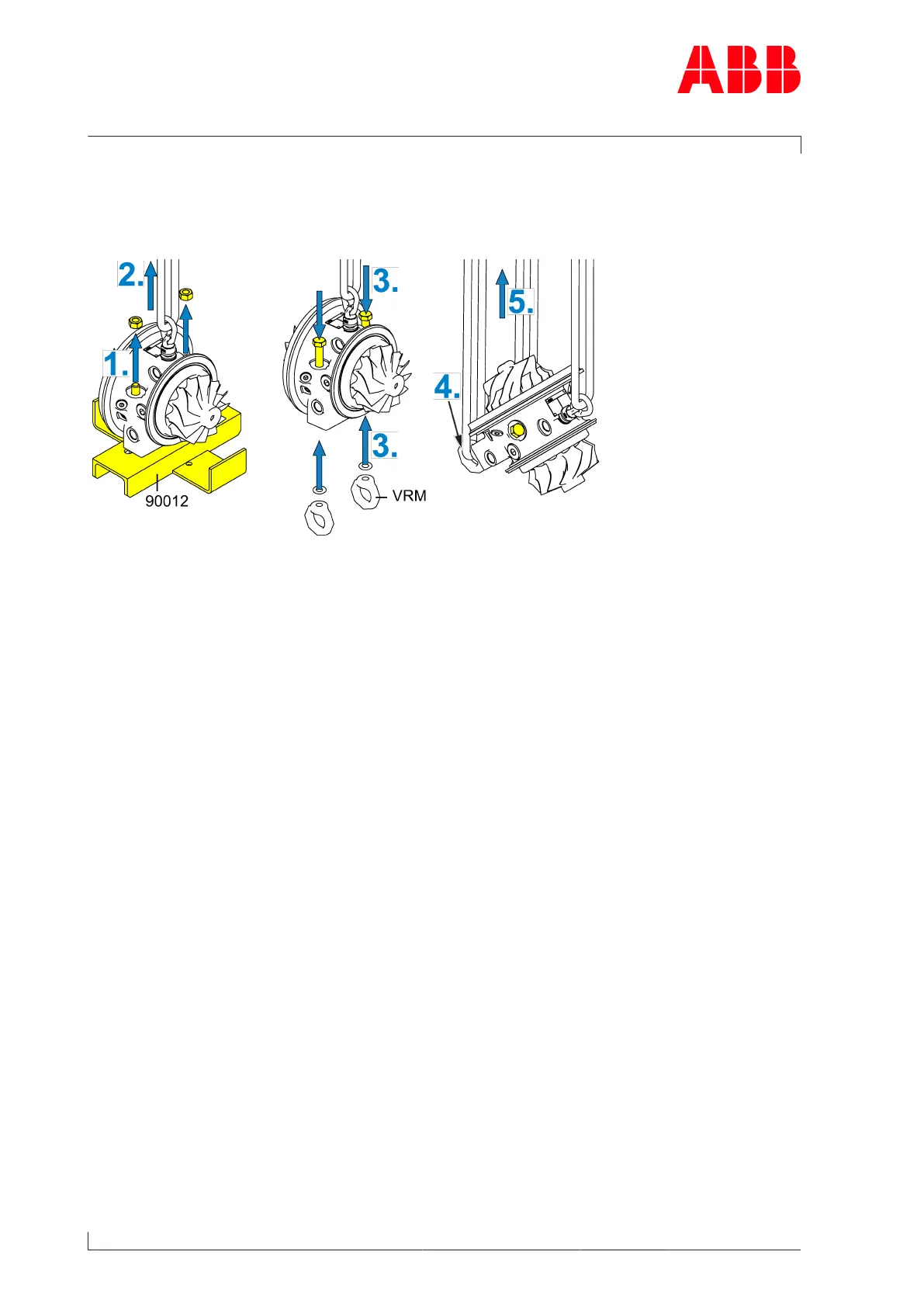

Fig.57: Lifting the cartridge group and rotating it by 90°
1. Loosen and remove nuts.
2. Lift the cartridge group out of the service support(90012).
3. Insert the screws of the service support from above and fit ring nuts(VRM) with washers.
4. Attach lifting gear to the ring nuts(VRM).
5. Lift cartridge group at the side of the ring nuts(VRM) and turn it into a vertical position.
Page 108 / 149
