Operation Manual / A130-M.. - A145-M..
3 Removing and Installing / 3.1 Turbocharger weight and transporta-
tion
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
3 Removing and Installing
3.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing, installing and transport-
ing the turbocharger. The weight specified below applies to the heaviest variant possible.
Depending on the specification, the weight specified on the rating plate may be lower than
the standard value specified here.

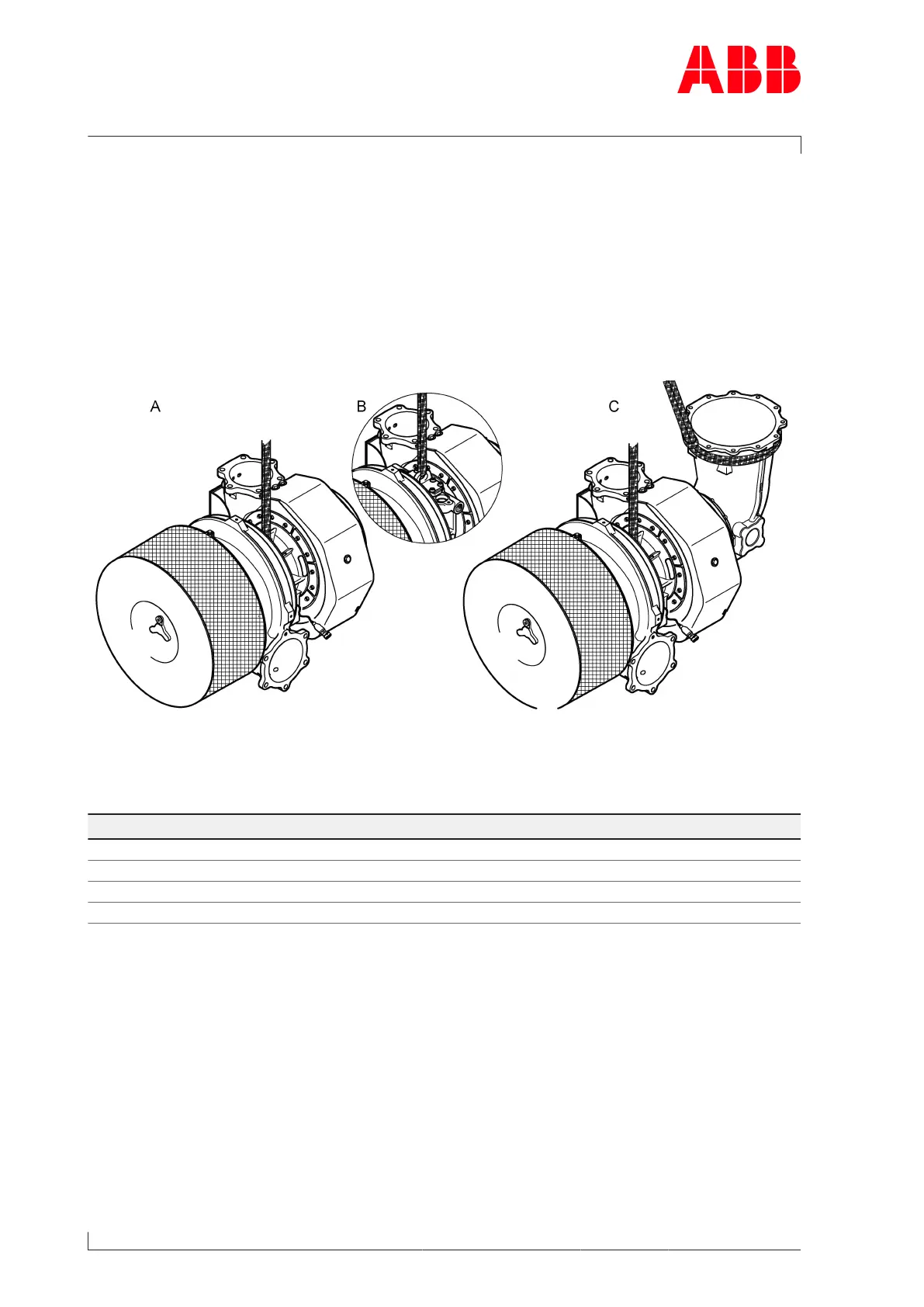

Fig.12: Suspension of complete turbocharger unit
A Turbocharger with oil-cooled bearing casing
B Turbocharger with water-cooled bearing casing
C Complete turbocharger unit with gas outlet casing
Product Weight of complete turbocharger unit [kg]
A130-M 210
A135-M 300
A140-M 500
A145-M 850
Table4: Weight of complete turbocharger unit
Page 30 / 149
