Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.22 Table of tightening torques
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
9.22 Table of tightening torques

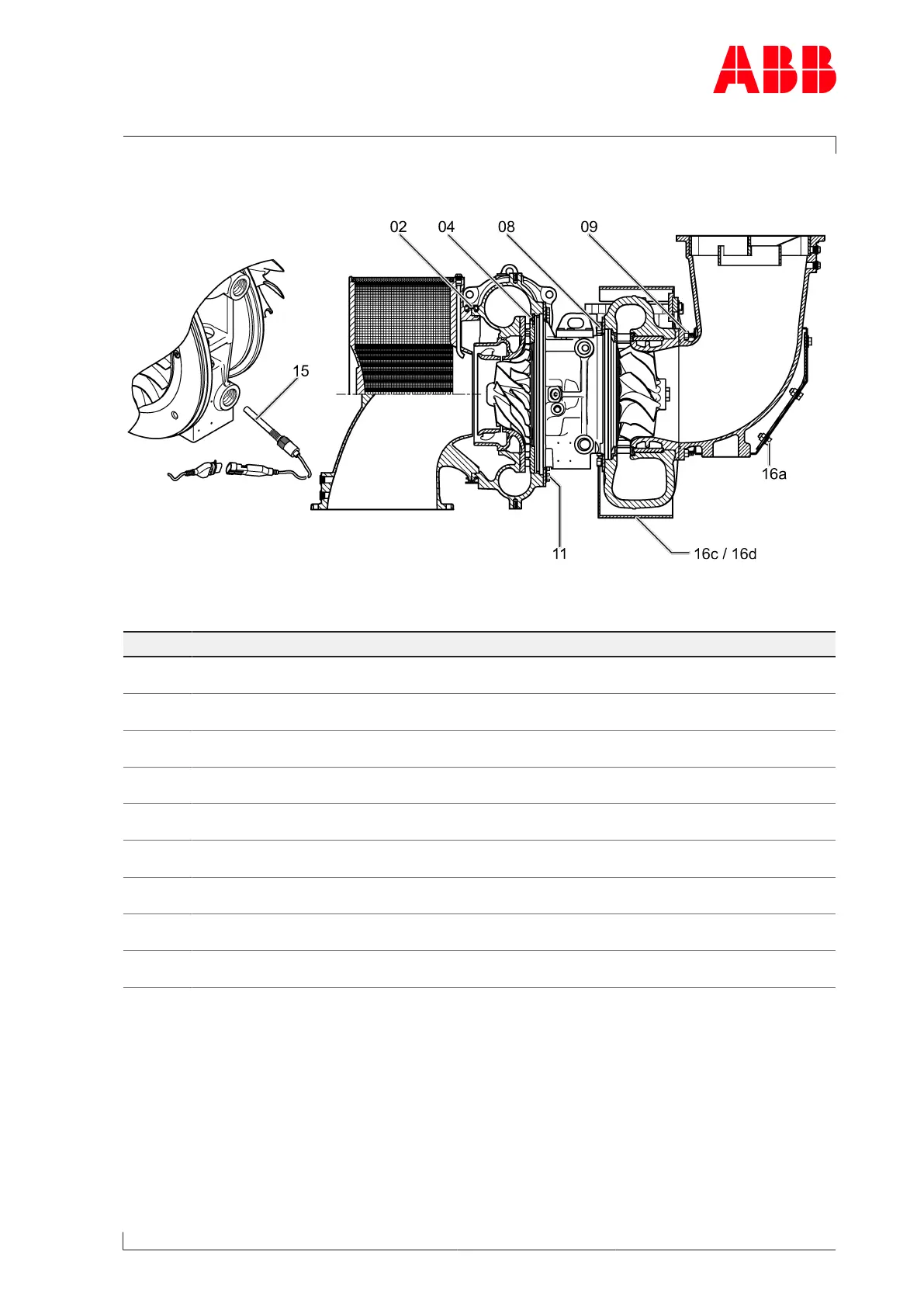

Fig.67: Tightening torques
The following tightening torques must be observed for the specified bolted connections:
Position Part number A130 A135 A140 A145
02 72020 M12
60Nm
M12
60Nm
M12
60Nm
M12
60Nm
04 79041 M6
8Nm
M6
8Nm
M6
8Nm
M6
8Nm
08 51007 M8
25Nm
M10
45Nm
M12
75Nm
M12
75Nm
09 51009 M8
20Nm
M10
40Nm
M12
65Nm
M12
65Nm
11 72011 M8
35Nm
M10
70Nm
M12
105Nm
M14
170Nm
15 86505 M12 x 1.5
15Nm
M12 x 1.5
15Nm
M12 x 1.5
15Nm
M12 x 1.5
15Nm
16a *) 61201 M10
40Nm
M10
40Nm
M12
65Nm
M12
65Nm
16c *) 51101 M10
40Nm
M10
40Nm
M12
65Nm
M12
85Nm
16d **) 51101 M10
50Nm
M10
50Nm
- - - -
Table47: Tightening torques
*) With the variant "insulation with integrated burst protection", this position can be ig-
nored.
16d **) applies to the burst protection mounting of A130-M and A135-M turbochargers on
railway applications
Page 119 / 149
