Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved.
HZTL4031_EN
Rev.P
February 2022

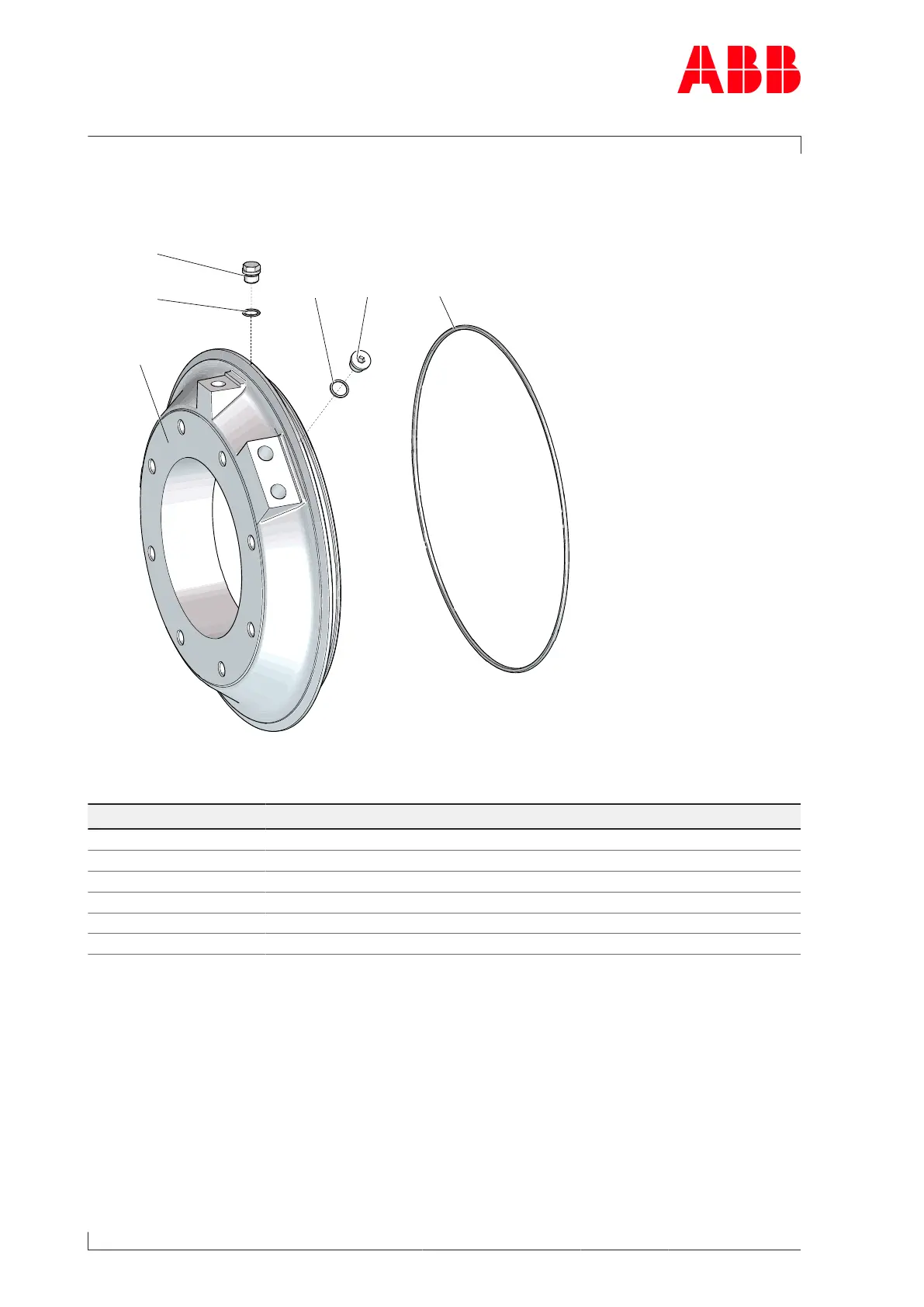

Air suction branch axial
82010*
82000
82006
82005
82008
82007
* = Av
ailable within the spare part set
HZTL443013 Mod. D
Part no.
Designation
82000
Air suction branch
82005
Screw plug
82006
Gasket
82007
Screw plug
82008
Gasket
82010*
O-ring
Table59: Spare parts - Air suction branch axial
