13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022

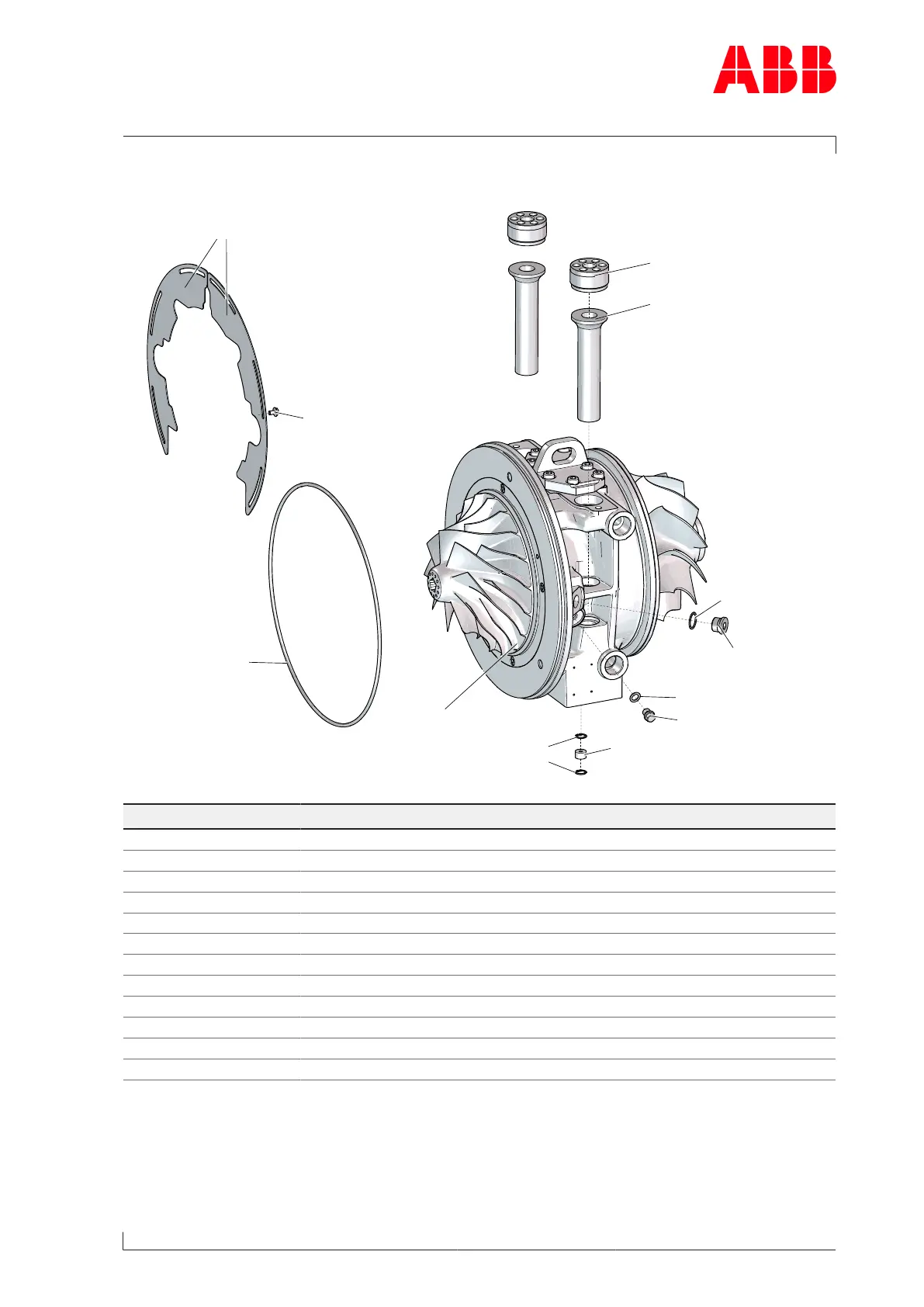

Cartridge, water cooled
42167**
42166**
42196
42197
42012*
10900
42194(p)
42047(p)
42189(p)
42190
42201**
42188(p)
(p) = pre-assembled
* = Available within the spare part set
** = if provided
HZTL443464 Mod. A
Part no. Designation
10900 Cartidge complete
42012* O-ring
42047(p) Screw plug
42166** Screw
42167** Cover
42188(p) Hexagon-head screw
42189(p) Gasket
42190 Expansion bush
42194(p) Gasket
42196 Orifice oil inlet
42197 Safety ring
42201** Clamping nut
Table52: Spare parts - Cartridge, water cooled
