Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.4 Removing the air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
9.4 Removing the air inlets
u Mark the casing position for assembly.

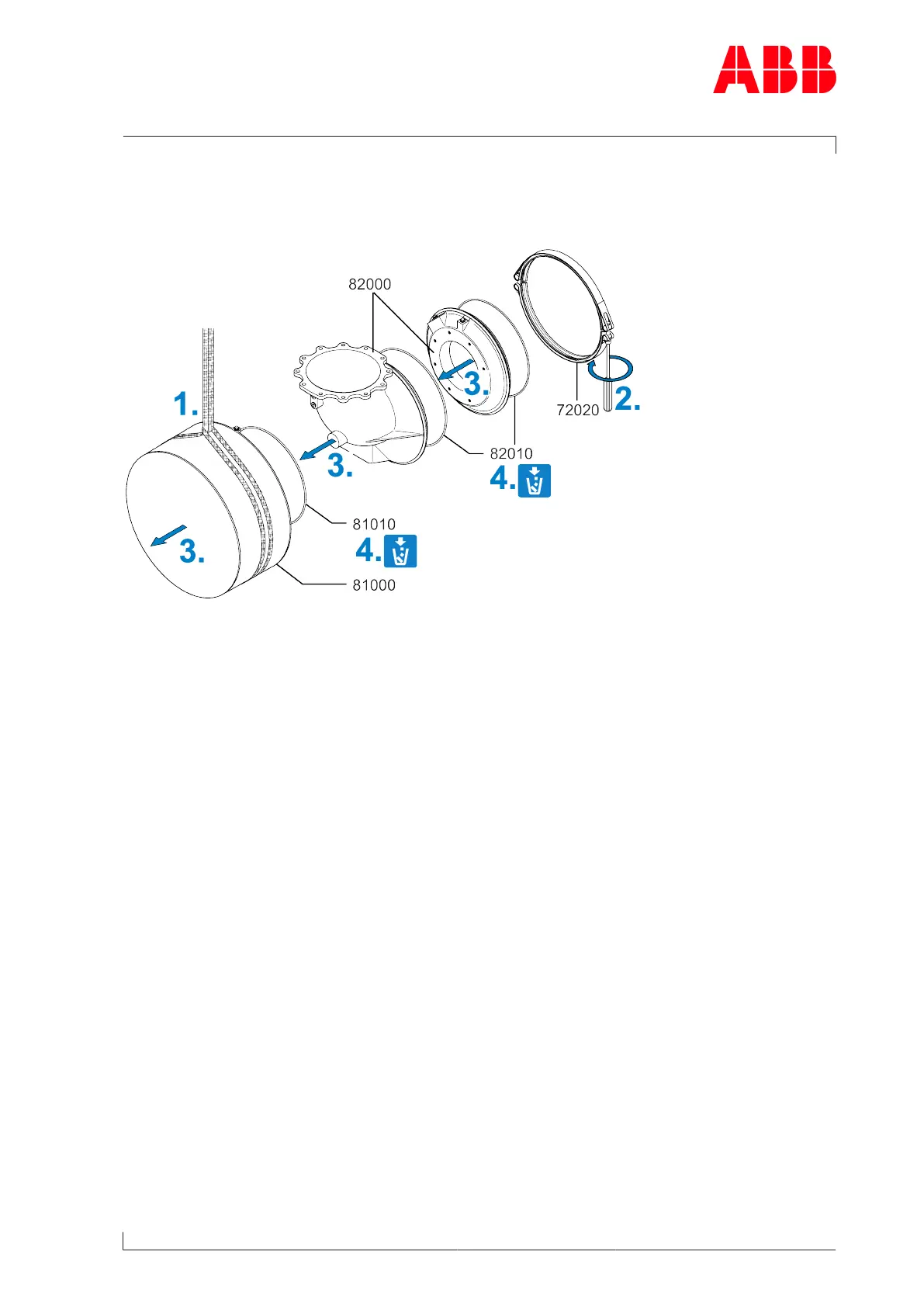

Fig.40: Removing the air inlets
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Loosen and remove V-clamp(72020).
3. Remove filter silencer(81000) or air suction branch(82000), set it down properly in an
appropriate place and secure it.
4. Remove and dispose of the O-ring(81010 / 82010).
Page 93 / 149
