9 Dismantling and fitting / 9.21 Installing the gas outlet casing
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
9.21 Installing the gas outlet casing

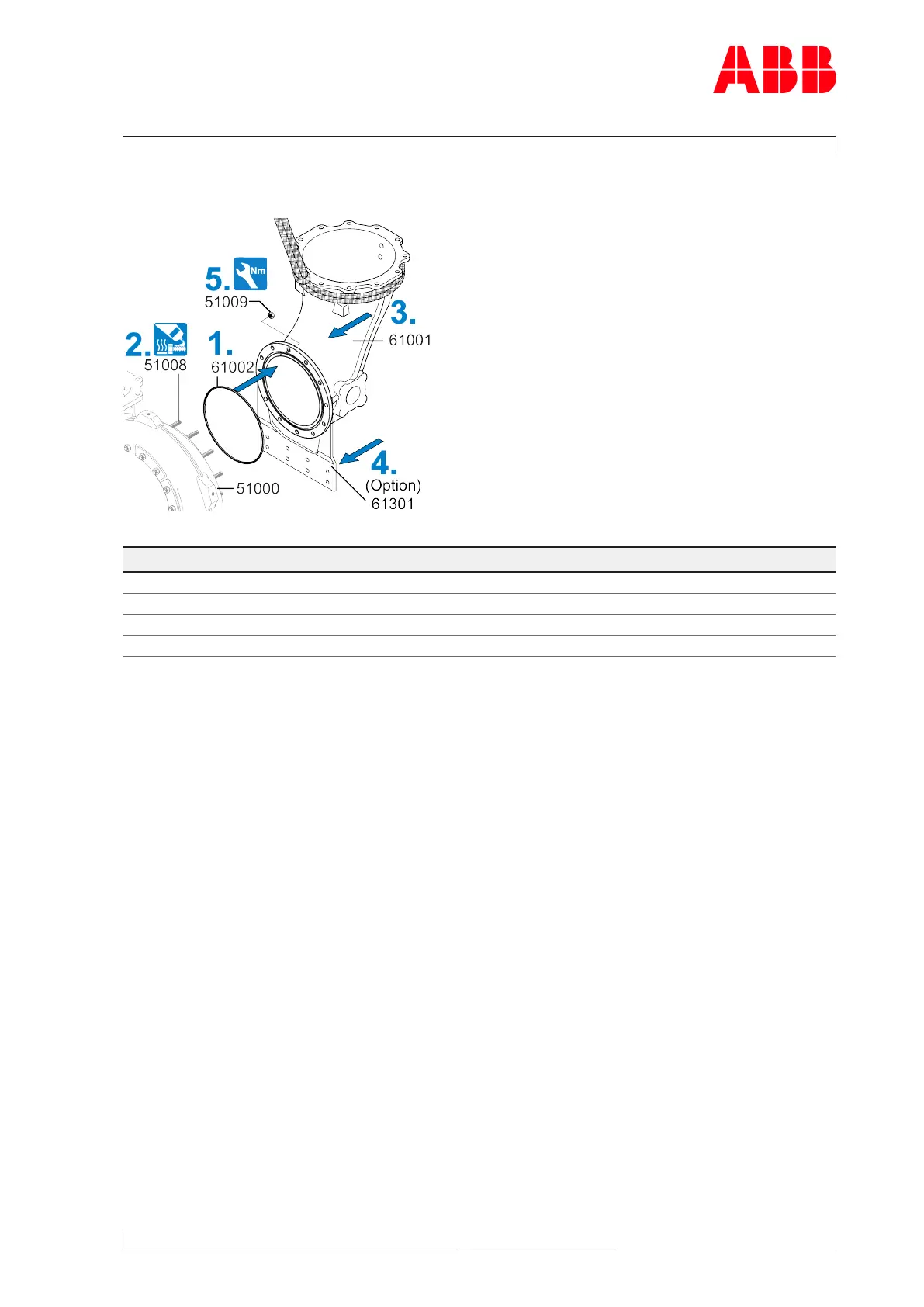

Fig.65: Installing the gas outlet casing
Product Size Tightening torque [Nm]
A130 M8 20
A135 M10 40
A140 M12 65
A145 M12 65
Table46: Tightening torque (51009)
1. Insert a new gasket(61002) into the gas outlet casing(61001).
2. Coat the threads of the studs(51008) with high-temperature grease.
3. Attach the lifting gear to the gas outlet casing(61001) and position the gas outlet casing
in the correct position on the turbine casing(51000).
4. If present: Fit support(61301).
5. Fit hexagon nuts(51009). Observe the tightening torque.
