Operation Manual / A130-M.. - A145-M..
1 Introduction / 1.4 Layout and function of the turbocharger
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
1.4 Layout and function of the turbocharger

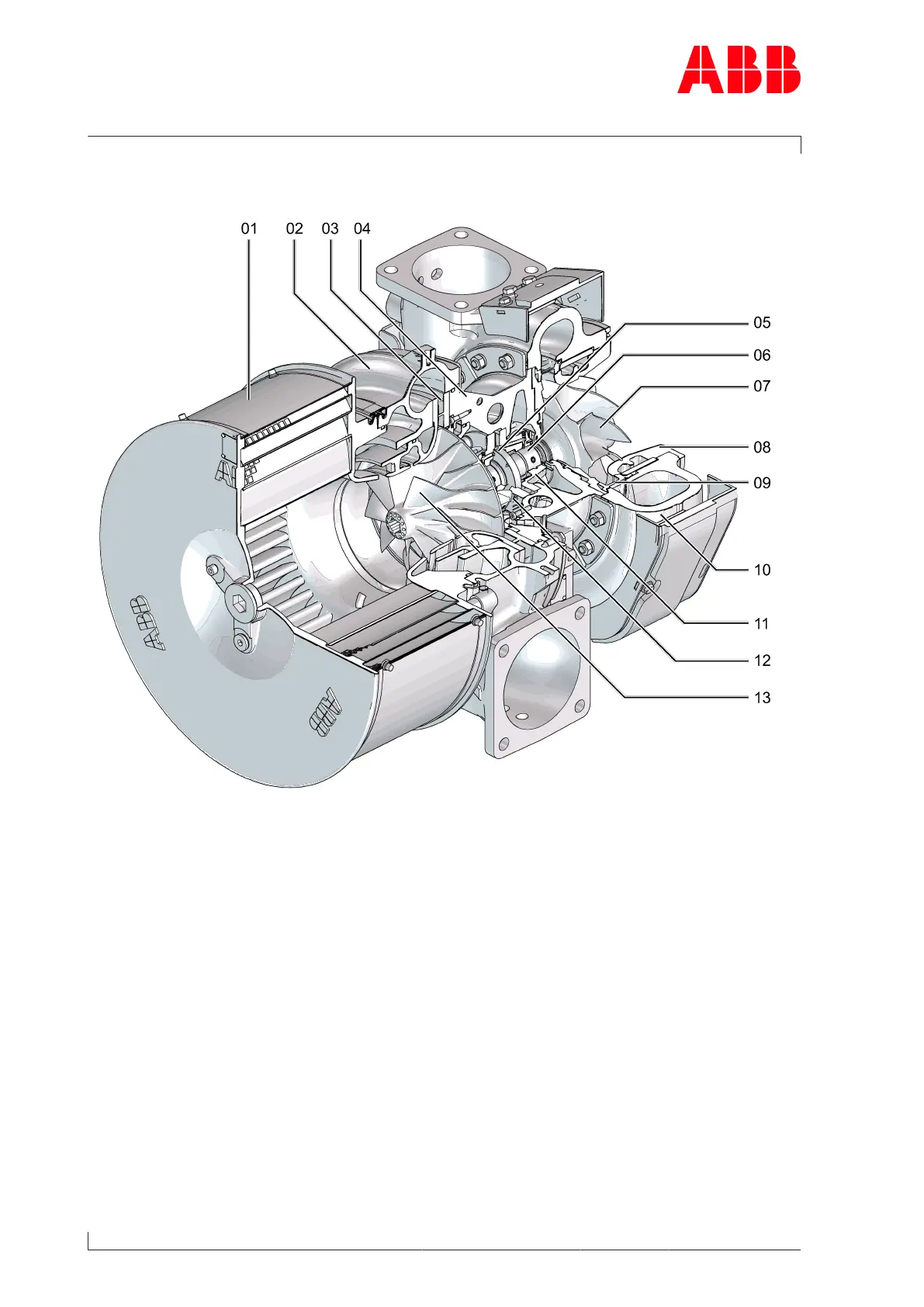

Fig.2: Layout and function of the turbocharger
01 Filter silencer / air suction branch 08 Gas outlet flange
02 Compressor casing 09 Nozzle ring
03 Diffuser 10 Turbine casing
04 Bearing casing 11 Turbine-end bearing flange
05 Axial thrust bearing 12 Compressor-end bearing flange
06 Radial plain bearing 13 Compressor wheel
07 Turbine
