9 Dismantling and fitting / 9.16 Installing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
Installing the compressor casing

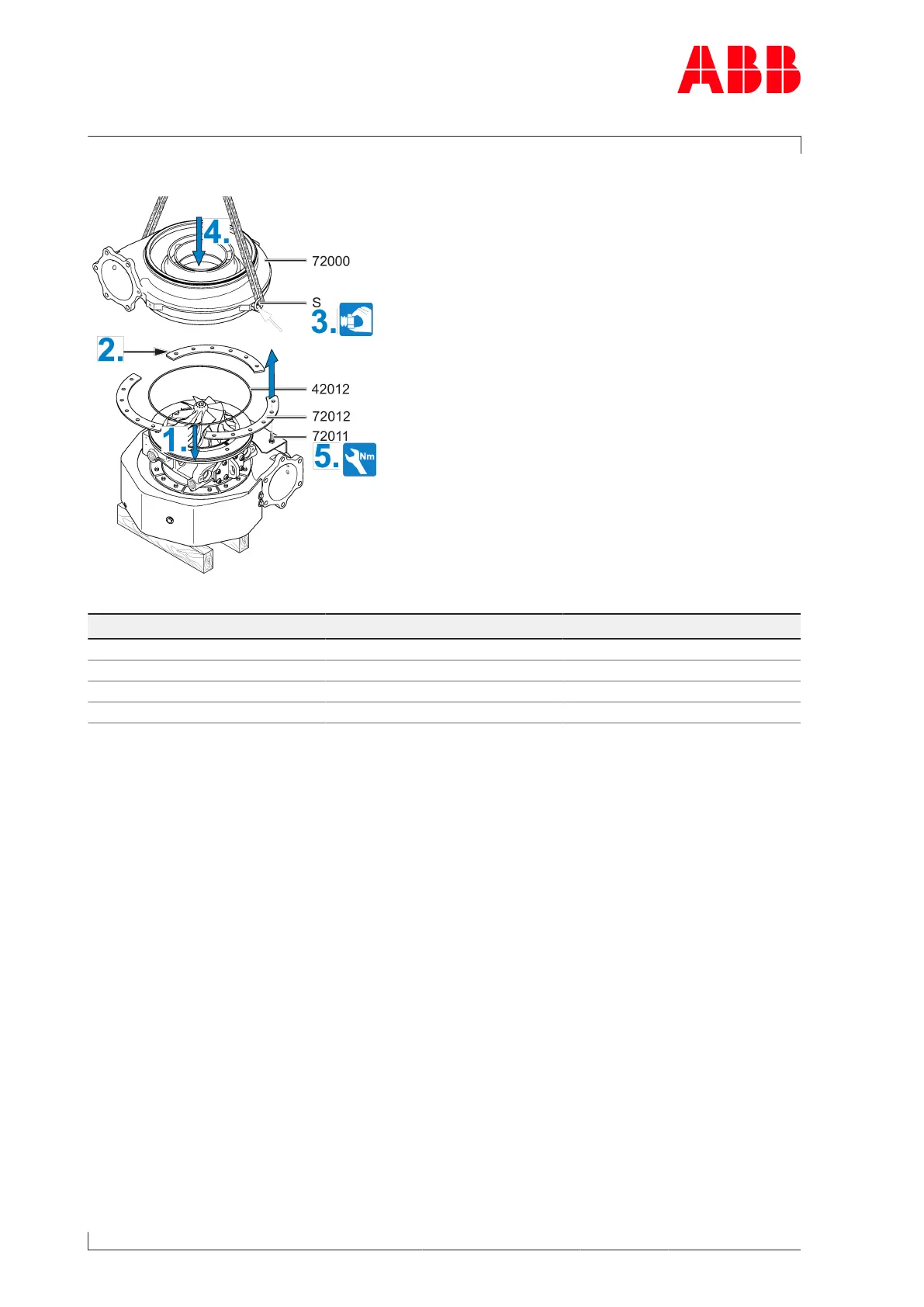

Fig.60: Installing the compressor casing
Product Size Tightening torque [Nm]
A130 M8 35
A135 M10 70
A140 M12 105
A145 M14 170
Table43: Tightening torque (72011)
1. Fit a new O-ring(42012).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes(S) to compressor casing(72000). Secure lifting gear to the
swivel lifting eyes.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011). Observe the tightening torque. If
these screws do not have a Verbus Ripp® integrated, Verbus Ripp® washers(72010) must
also be fitted.
