Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.18 Installing the air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022
9.18 Installing the air inlets

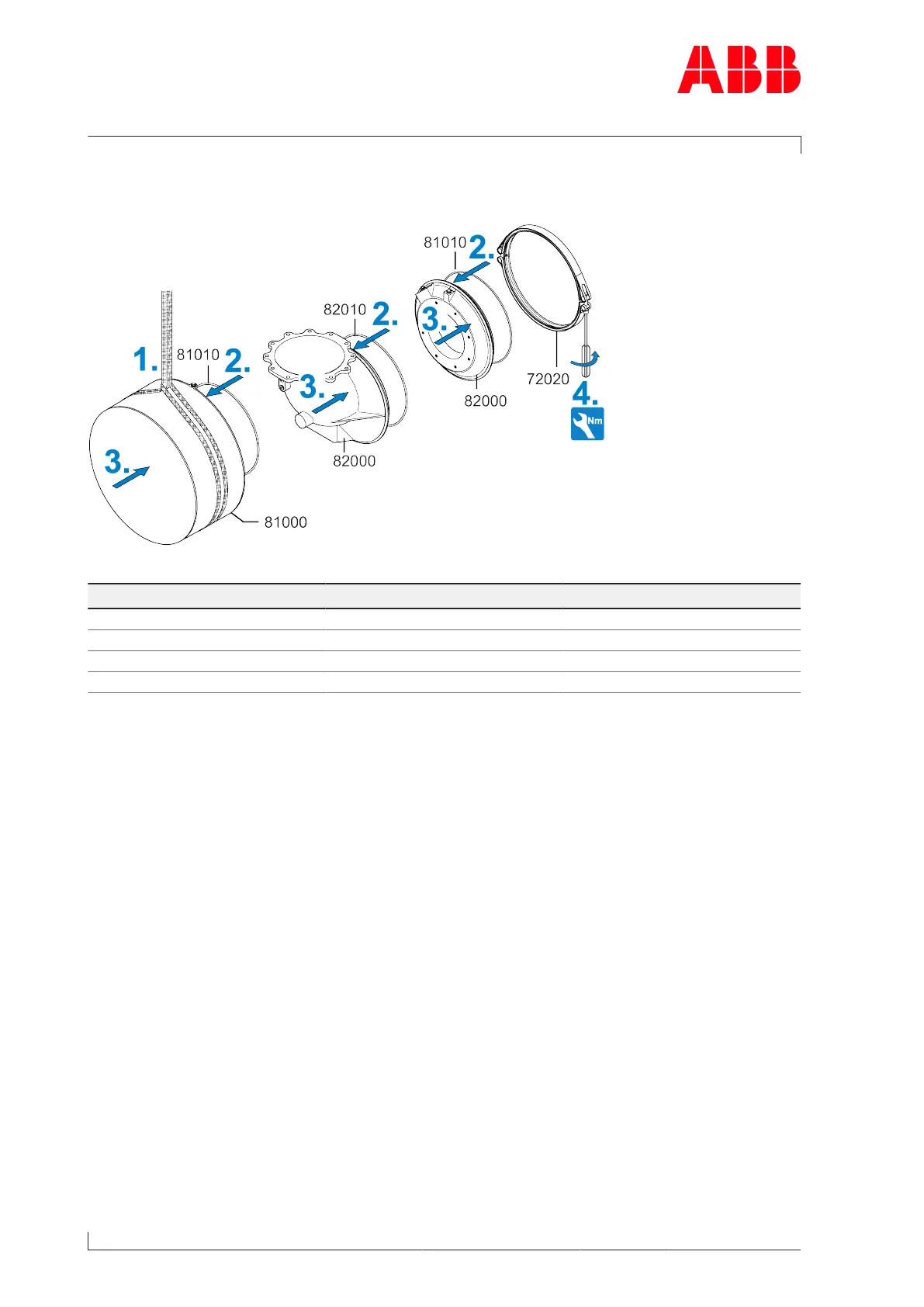

Fig.62: Installing the air inlets
Product Size Tightening torque [Nm]
A130 M12 60
A135 M12 60
A140 M12 60
A145 M12 60
Table45: Tightening torque (72020)
1. Secure lifting gear to filter silencer(81000).
2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air
suction branch(82000).
3. Fit the filter silencer(81000) or air suction branch(82000) with the V-clamp(72020).
4. Observe tightening torque.
