Operation Manual / A130-M.. - A145-M..

9 Dismantling and fitting / 9.15 Installing the cartridge group

WARNING

The turbine casing insulation supplied by Turbo Systems also acts as burst

protection

Serious injuries or accidents resulting in fatalities can occur if the turbine

casing insulation(01) supplied by Turbo Systems is removed. A burst protec-

tion is integrated into this turbine casing insulation supplied by Turbo Sys-

tems.

For turbochargers which were ordered from Turbo Systems without insula-

tion or which are equipped with the insulation(02), separate burst protec-

tion(03) is fitted.

If the insulation from Turbo Systems(01) is not installed, the separate burst

protection(03) plus either the insulation(02) or an appropriate insulation

supplied by the enginebuilder must be installed for operation.

u Never operate a turbocharger without burst protection and insulation.

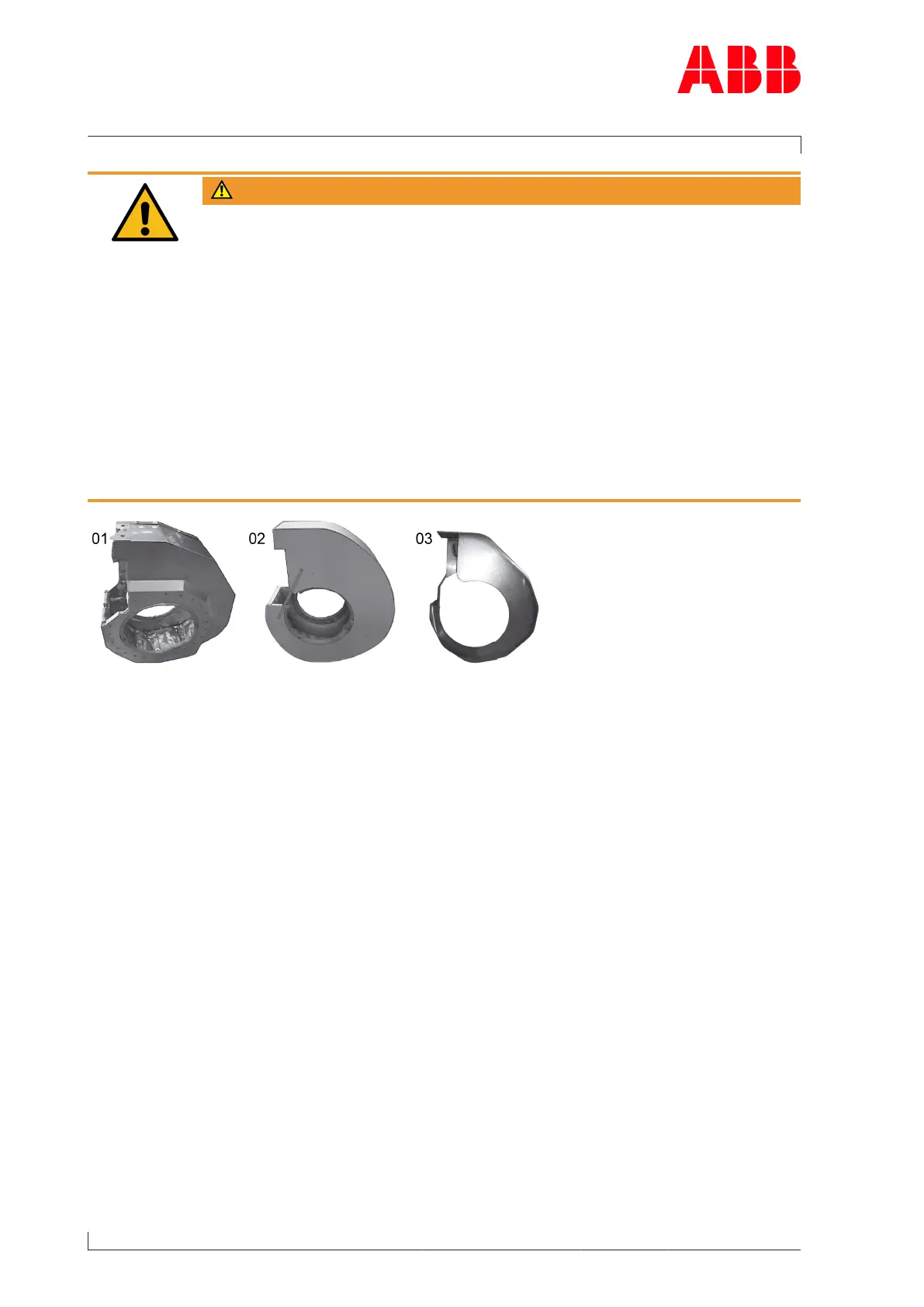

Fig.59: Turbine casing insulation / Burst protection

Page 110 / 149

ABB HT613191 User Manual
