Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022

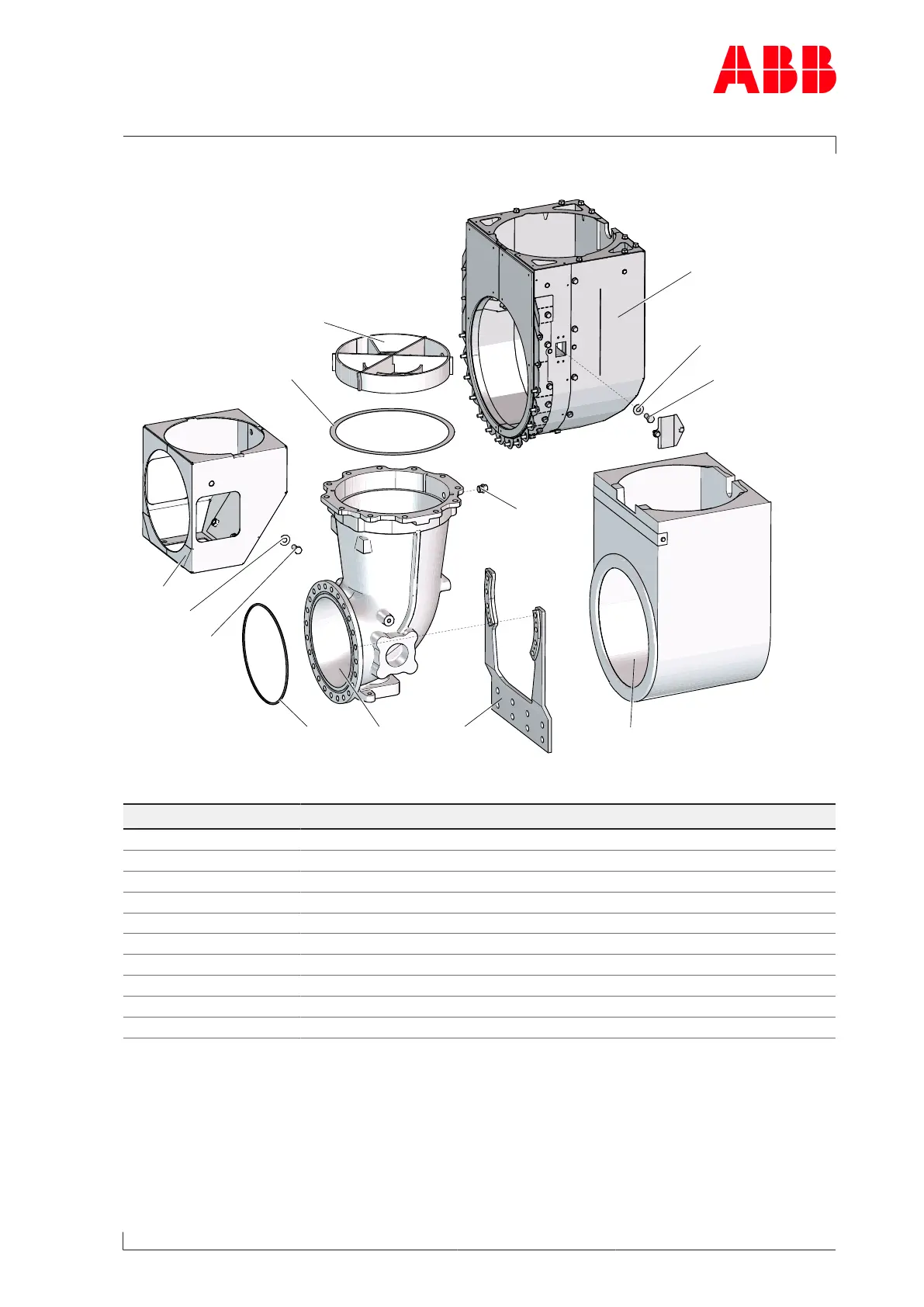

Gas outlet casing, radial
GW03
61100
61202
61201
61200
61301**
61202
61201
61100
61001
61005(p)
61205**
61008* **
61002*
(p) = pre-assembled
* = Available within the spare part set
** = if provided
HZTL443466 Mod. B
Part no. Designation
61001 Gas-outlet casing
61002* Gasket
61005(p) Screw plug
61008* ** Gasket
61100 Insulation gas-outlet casing
61200 Burst protection
61201 Hexagon-head screw
61202 Tension washer
61205** Protective grid
61301** Support
Table56: Spare parts - Gas outlet casing, radial
