13.3 Spare part – Illustrations
The spare parts lists shown below are only available in English.

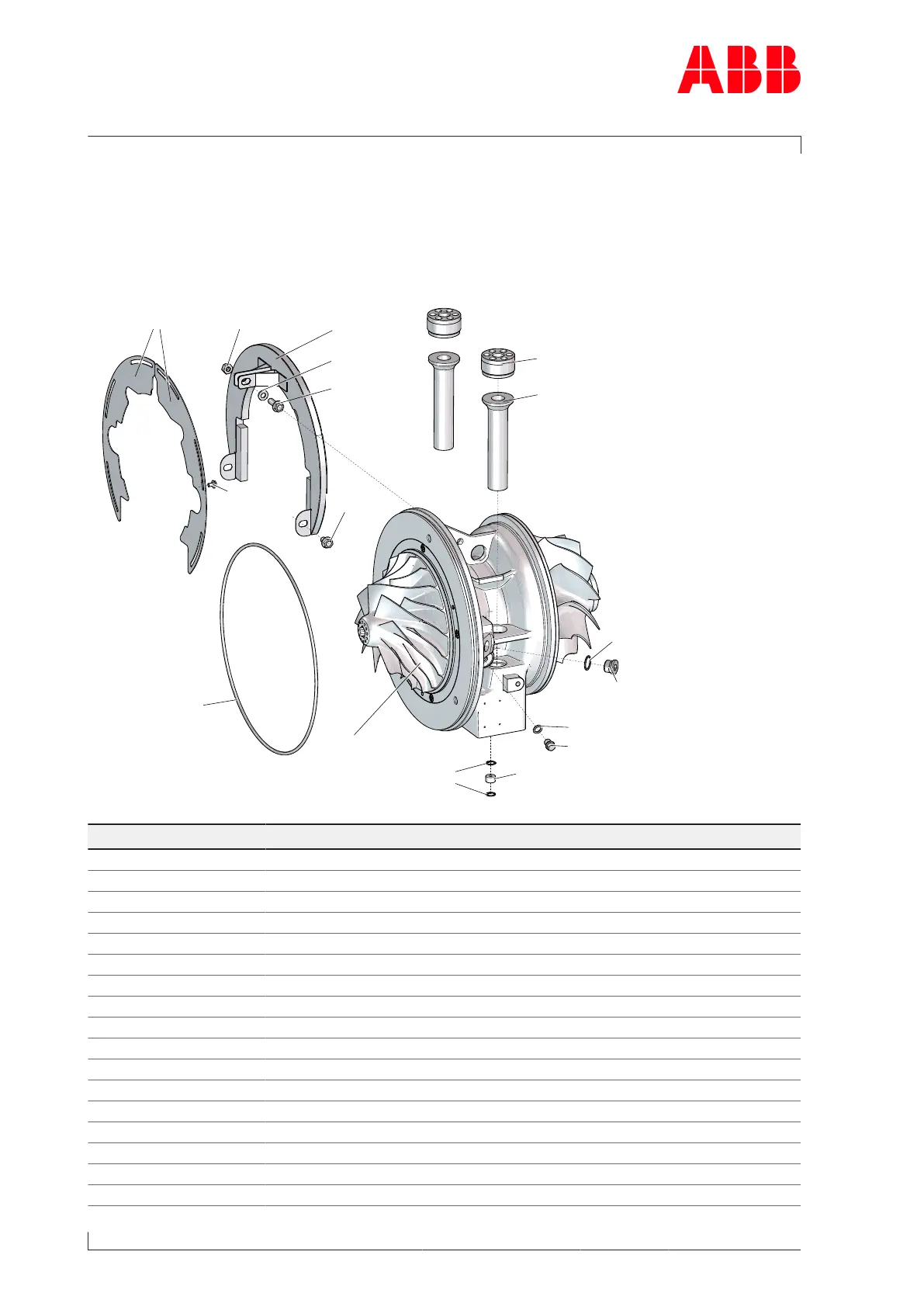

Cartridge, oil cooled
42171**
42169**
42170**
42167**
42172**
42168**
42166**
42196
42197
42012*
10900
42194(p)
42047(p)
42190
42189(p)
42201**
42188(p)
(p) = pre-assembled
* = Available within the spare part set
** = if provided
HZTL443463 Mod. A
Part no. Designation
10900 Cartridge complete
42012* O-ring
42047(p) Screw plug
42166** Screw
42167** Cover
42168** Hexagon-head screw
42169** Hexagon nut
42170** Insulation
42171** Safety washer
42172** Hexagon-head screw
42188(p) Hexagon-head screw
42189(p) Gasket
42190 Expansion bush
42194(p) Gasket
42196 Orifice oil inlet
42197 Safety ring
42201** Clamping nut
Table51: Spare parts - Cartridge, oil cooled
