Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.20 Fitting the insulation of the turbine
casing
© Copyright 2022 ABB. All rights reserved.
HZTL4031_EN
Rev.P
February 2022
9.20
Fitting the insulation of the turbine casing

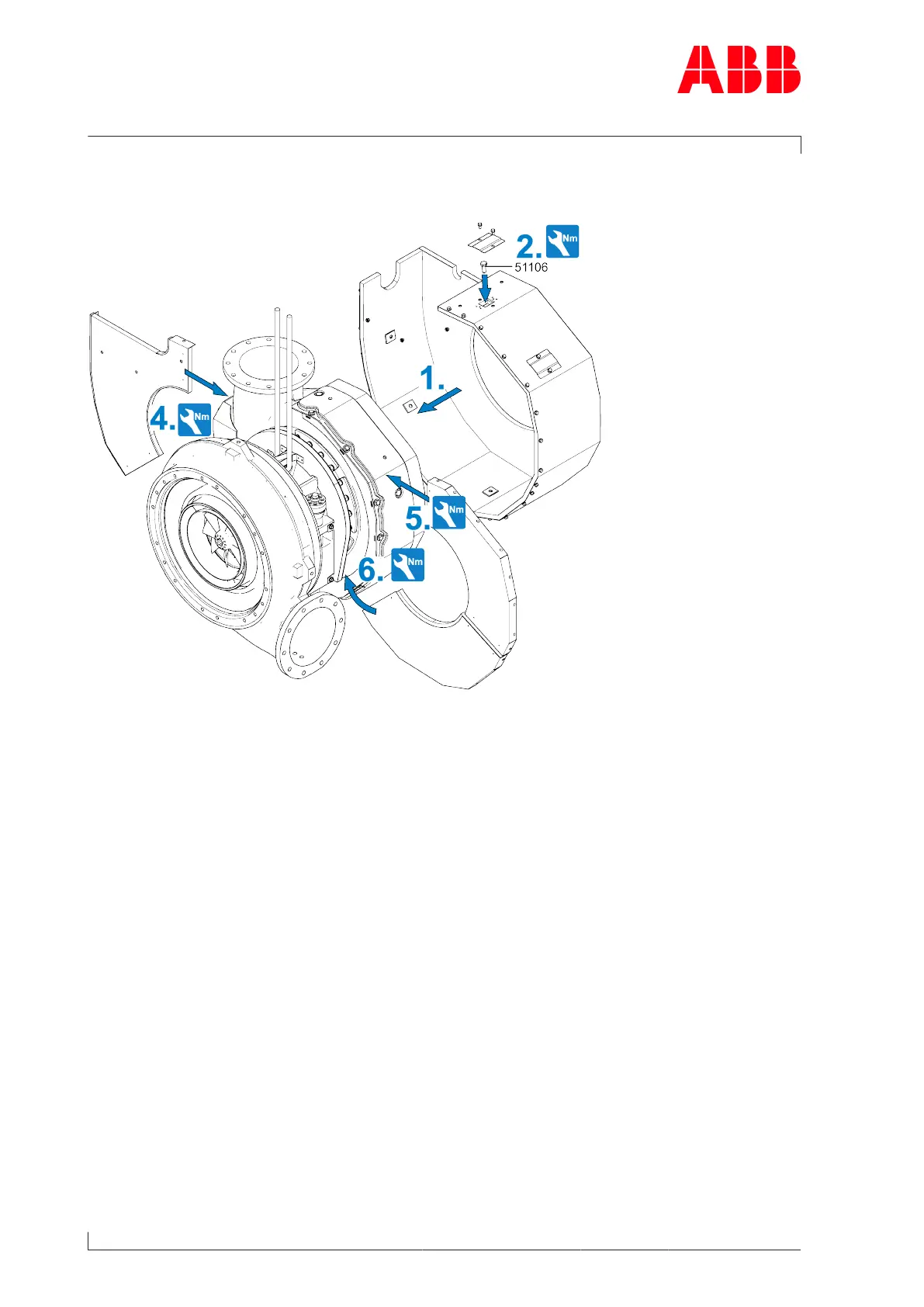

Fig.64: Fitting the insulation
u
Fit the insulation according to the illustration.
u
Observe tightening torques (see
Table of tightening torques
→
119
).
Page 116 / 149
117
119
