Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved.
HZTL4031_EN
Rev.P
February 2022

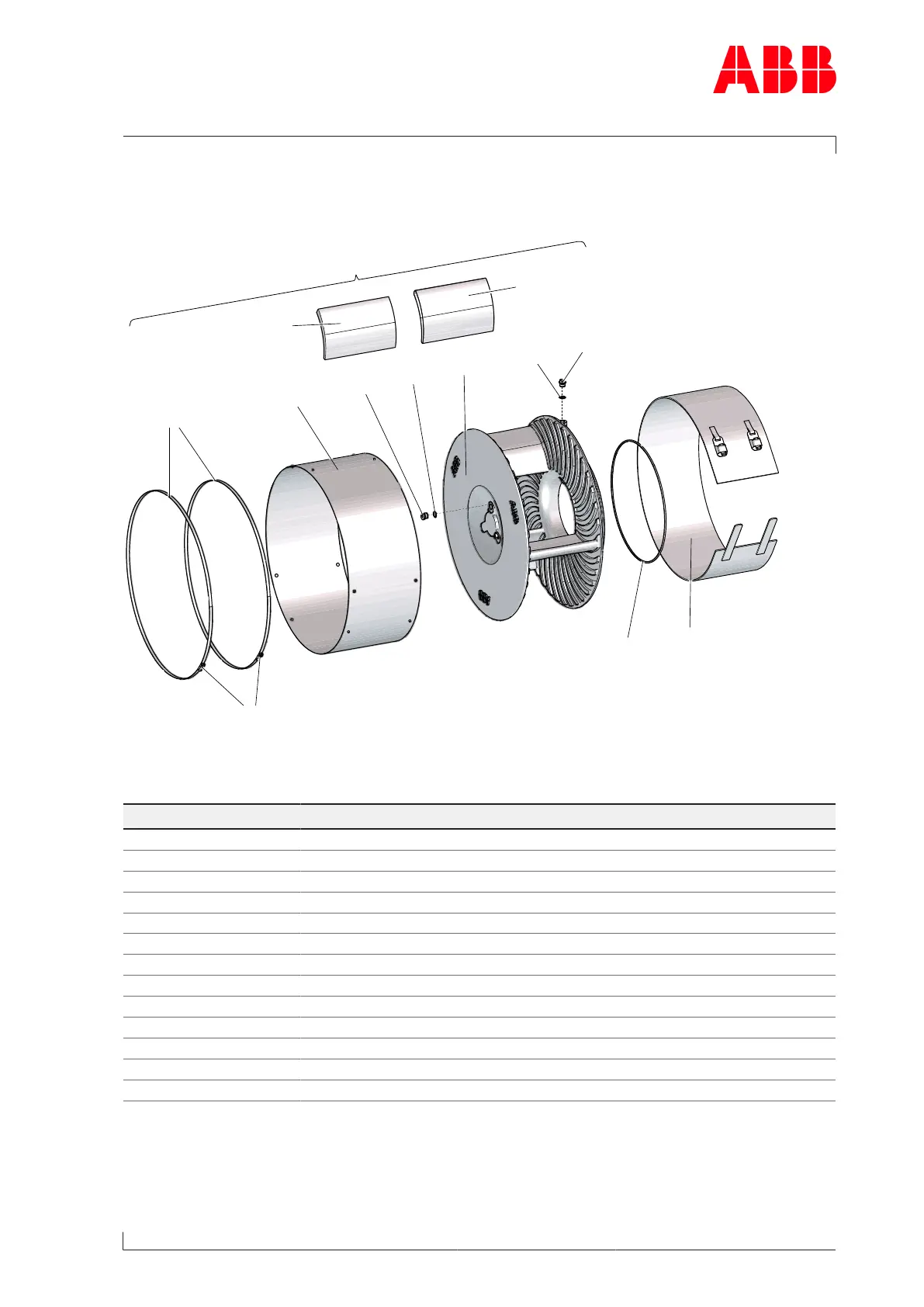

Filter silencer
81265**
81010*
81135
81006
81005
81171
81170
81137
81266
81000
81136
81270
81271
(p) = pre-assembled
* = Av
ailable within the spare part set
HZTL443469 Mod. A
Part no.
Designation
81000
Filter silencer complete
81005
Screw plug
81006
Gasket
81010*
O-ring
81135
Silencer body
81136
Absorption segment
81137
Cover sheet-metal
81170
Screw plug
81171
Gasket
81265**
Filter ring
81266
Cover grid
81270
Tension band
81271
Lock
Table58: Spare parts - Filter silencer
