ABB HT613191 User Manual

Operation Manual / A130-M.. - A145-M..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4031_EN Rev.P February 2022

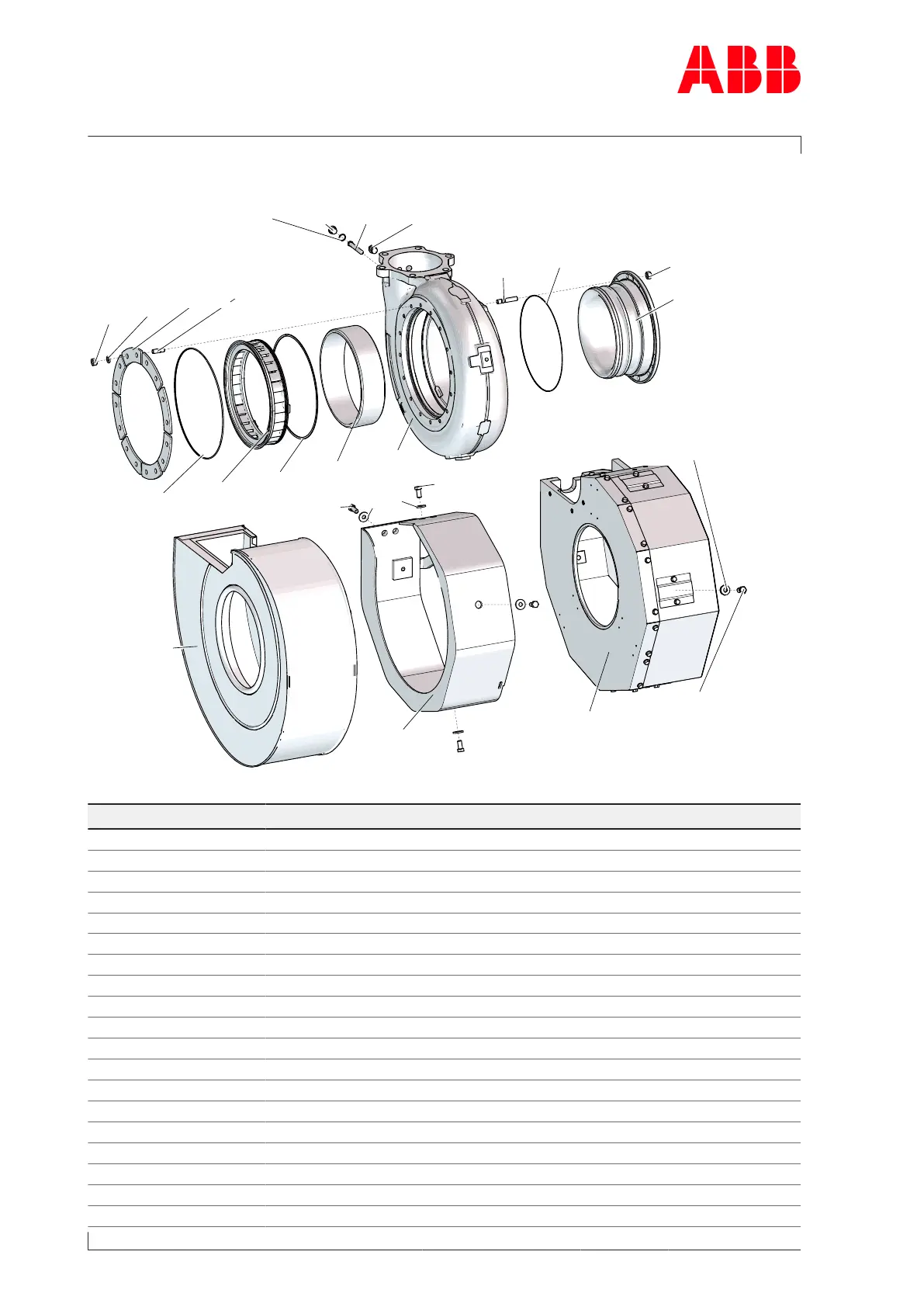

Turbine casing, 1 inlet
51105* **
57003**
51101
51303**51302** 51301**
51009
51027(p)
51008
51000
57002
57210
56005
56001
51006
51003
51007
51002
51103**
TW03/TW04
51010**
51102
51010**
TW02/TW04
51500
TW02
51107** TW04
51102** TW03
51106** TW04
51101** TW03
(p) = pre-assembled
* = Available within the spare part set
** = if provided
HZTL443204 Mod. L
Part no. Designation
51000 Turbine casing
51002 Fastening strip
51003 Verbusripp washer
51006 Stud
51007 Hexagon nut
51008 Stud
51009 Hexagon nut
51010** Insulation TW02
51027(p) Screw plug
51101** Hexagon-head screw
51102** Tension washer
51103** Hexagon-head screw
51105** Metal C-ring
51106** Hexagon-head screw
51107** Tension washer
51301** Cleaning nozzle
51302** Gasket
51303** Screw plug
51500 Burst protection TW02, TW04
