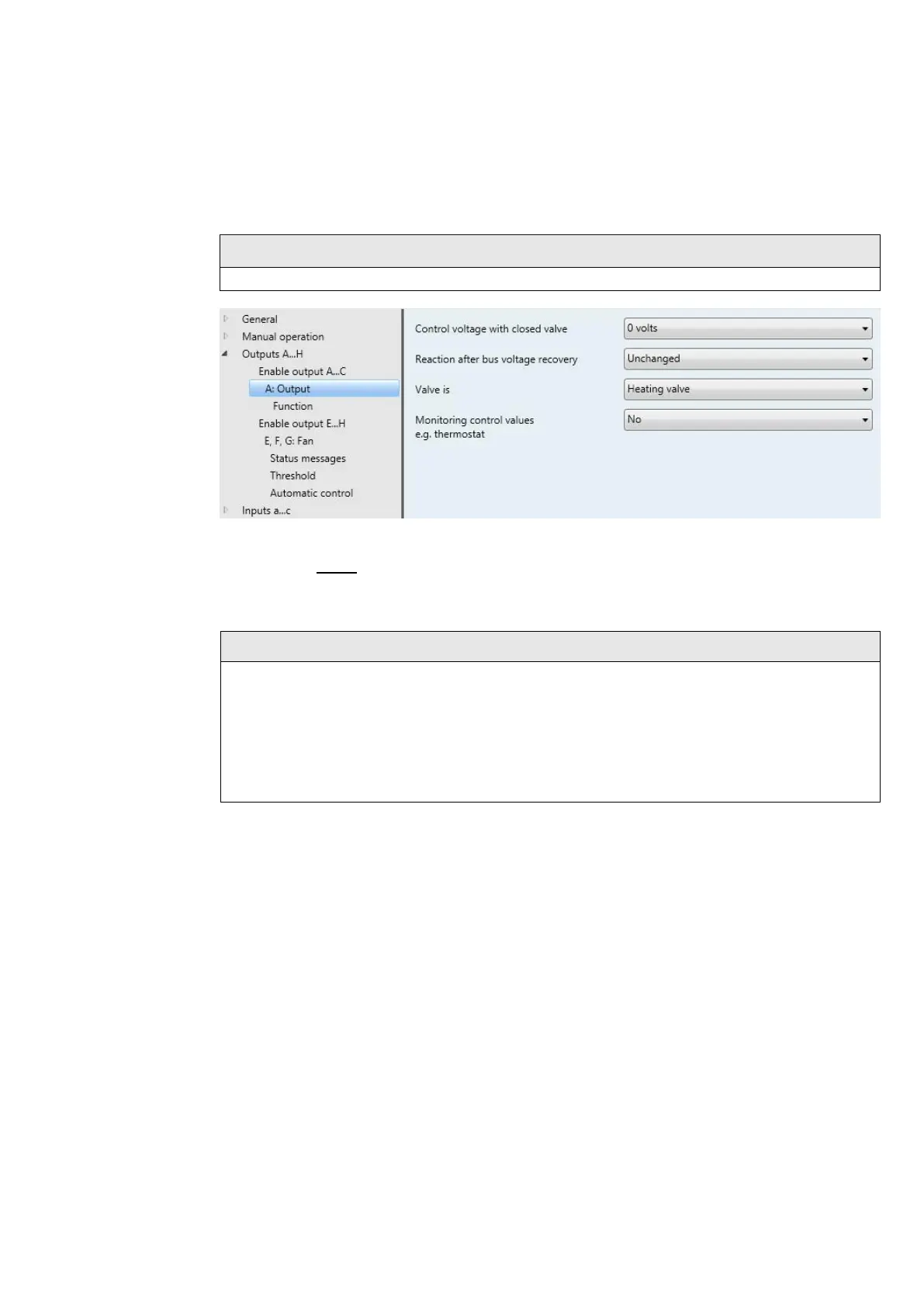

3.2.3.4 Parameter window A: Output (valve drive, analog (0...10 V))
All settings for Valve drive analog (0...10 V) are made in this window.
Note
This parameter window is visible for the products FCA/S 1.2.1.2 and FCA/S 1.2.2.2.
Control voltage with closed valve
Options:
0 volts
10 volts
This parameter determines the function of the valve drive.
Note
De-energized closed valve drives (N.C.)
If no current flows in the valve drive, the valve is closed. If current flows in the valve drive, the valve
opens.
De-energized opened valve drives (N.O.)
If no current flows in the valve drive, the valve opens. If current flows in the valve drive, the valve then
closes.
