ABB i-bus
®
KNX
Device technology
20 2CDC508134D0202 | FCA/S 1.x.x.1

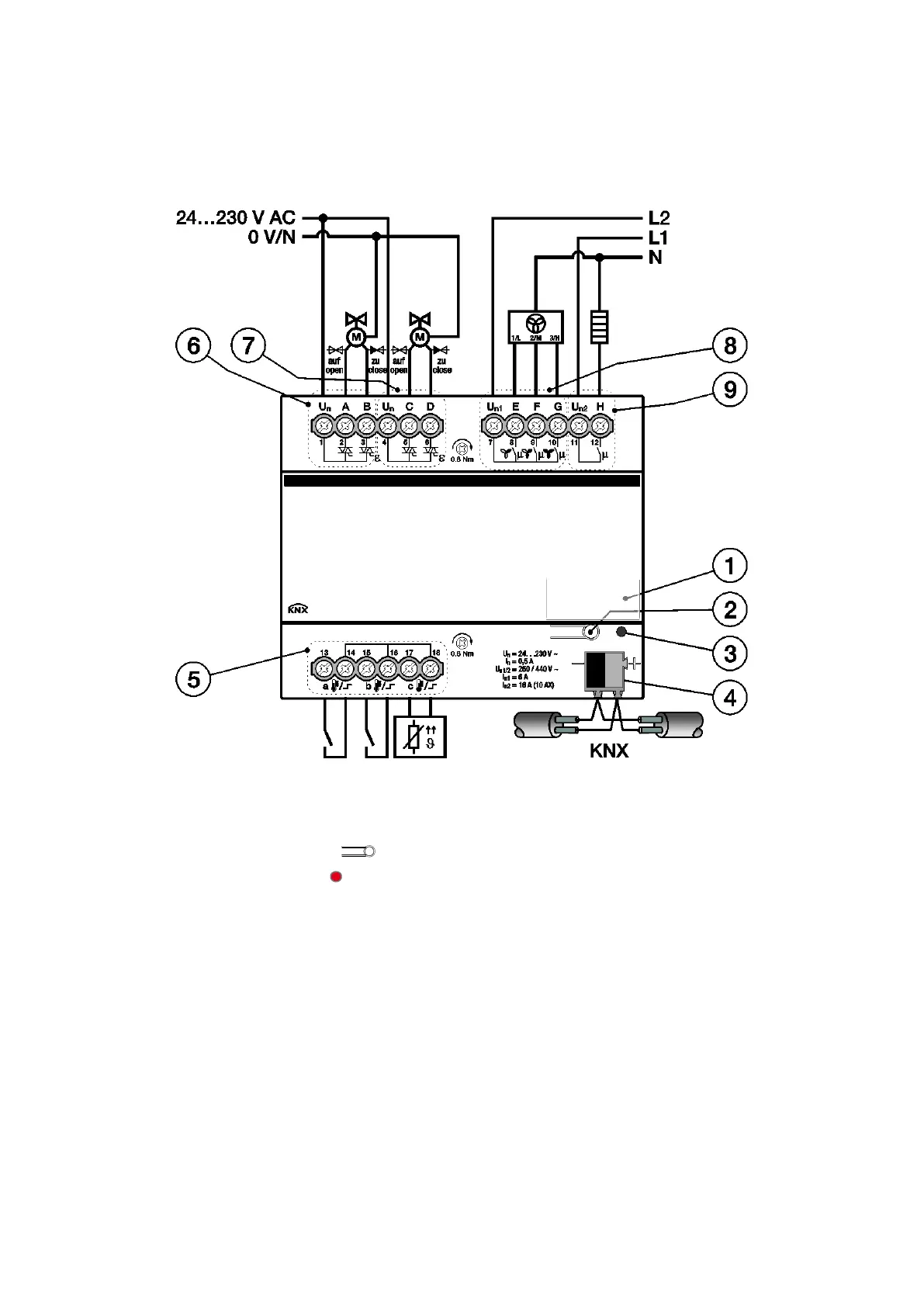

2.1.11 Connection diagram (motor-driven, 3-point)
FCA/S 1.1.1.2
1
Label carrier
6
Valve V1 (e.g. heating)
2
Programming button
7
Valve V2 (e.g. cooling)
3
Programming LED (red)
8
Fan
4
Bus connection terminal
9
Output H
5
Inputs a, b, c
2CDC072014F0015
