Further configuration
Mint WorkBench provides a number of other tools for testing and configuring the
MicroFlex e150. Every tool is explained fully in the help file. Press F1 to display the
help file, then navigate to the Mint WorkBench book. Inside this is the Toolbox book.
 Configuration tool

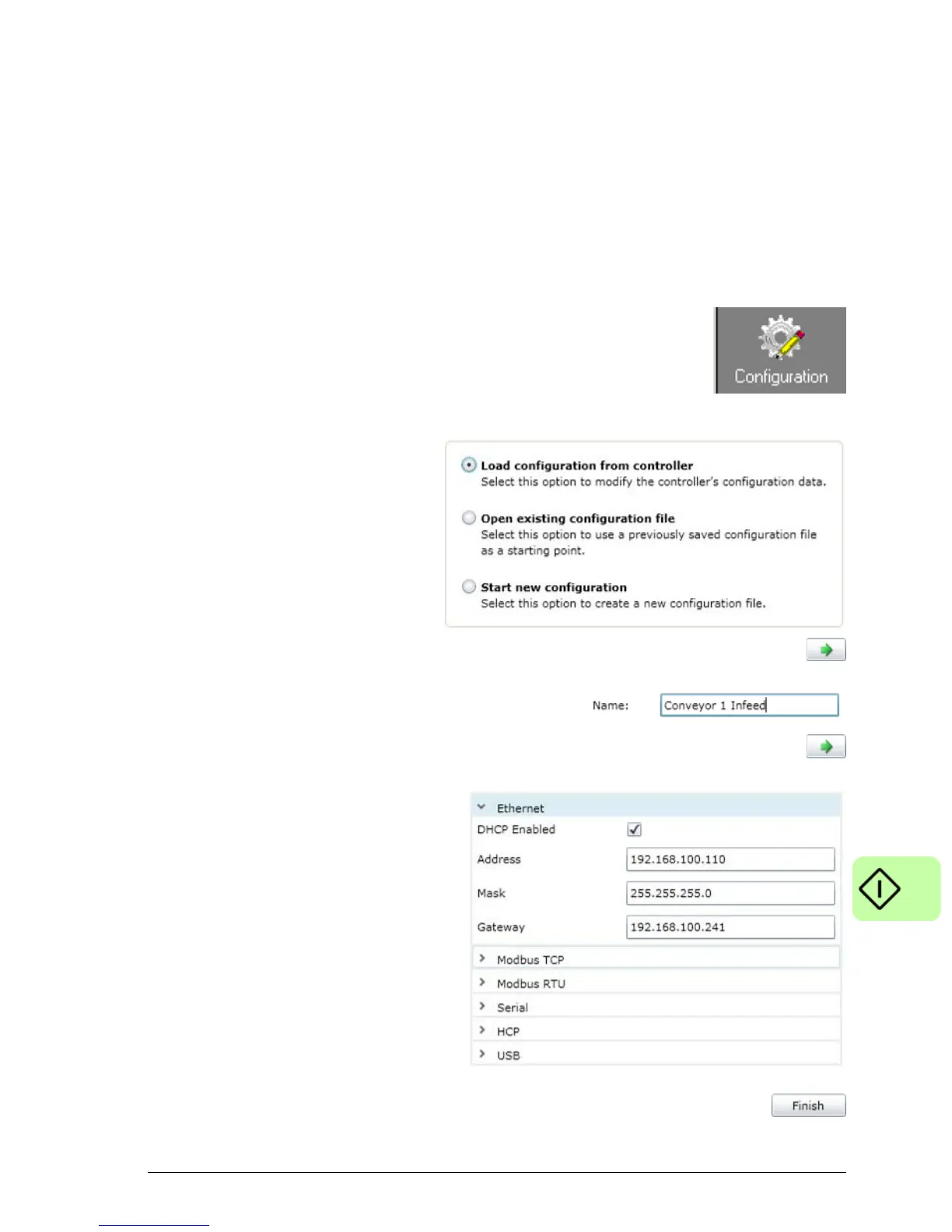

The Configuration tool shows the MicroFlex e150’s integrated configuration interface.
1. Click the Configuration tool icon in the Toolbox on the left of
the screen.
2. Select Load configuration
from the controller or Start
new configuration and click
the green arrow.
3. Enter a descriptive name for
the controller and click the
green arrow.
4. Continue through the screens
making the required changes.
Click Finish at any time to go
to the last screen and save
the changes.
5. On the final screen, click
Finish to complete the
configuration.
