ABB MicroFlex e150 - Analog Output AOUT0

Electrical installation: input / output 61

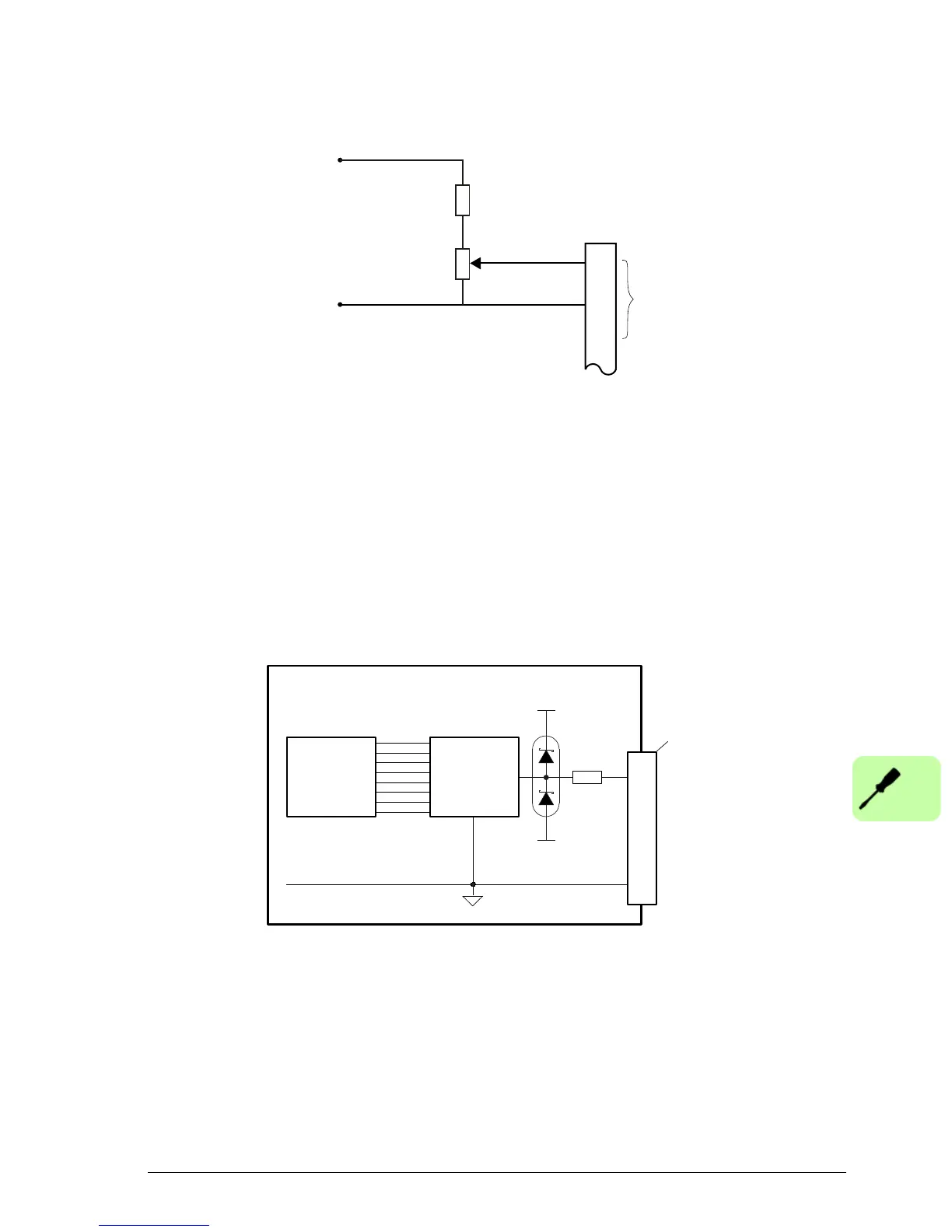

Typical input circuit to provide 0-10 V (approx.) input from a 24 V source
 Analog output AOUT0
Location: X4, pin 1 (AOUT0), 5 (AGND)
The analog output can be used to drive loads of 4 kΩ or greater. Shielded twisted pair
cable should be used. The shield connection should be made at one end only.
In Mint, the analog output can be controlled using the DAC keyword. See the Mint help
file for full details of DAC and other related DAC... keywords.
Output circuit:
+24VDC
3
X4
7
AIN0
()ADC.0
5
0V
Nȍ:
Nȍ:
potentiometer
MicroFlex e150
AD5530BRUZ
X4
1
5
AOUT0
AGND
-15V
+15V
Demand
±100%
