ABB MicroFlex e150 User Manual

66 Electrical installation: input / output
 Digital inputs - general purpose DIN1, DIN2
Location: X3, pins 16 & 6 (DIN1), 14 & 4 (DIN2)
These general purpose fast digital inputs are buffered by a TLP115 opto-isolator,
allowing the input signals to be connected with either polarity. The inputs do not share
a common reference. When the MicroFlex e150 is connected to Mint WorkBench, the
digital inputs can be configured using the Digital I/O tool. Alternatively, Mint keywords
including DRIVEENABLEINPUT, RESETINPUT, ERRORINPUT and STOPINPUT can be
used. The state of the digital inputs can be viewed using the Mint WorkBench Spy
window's Axis tab. See the Mint help file for details.

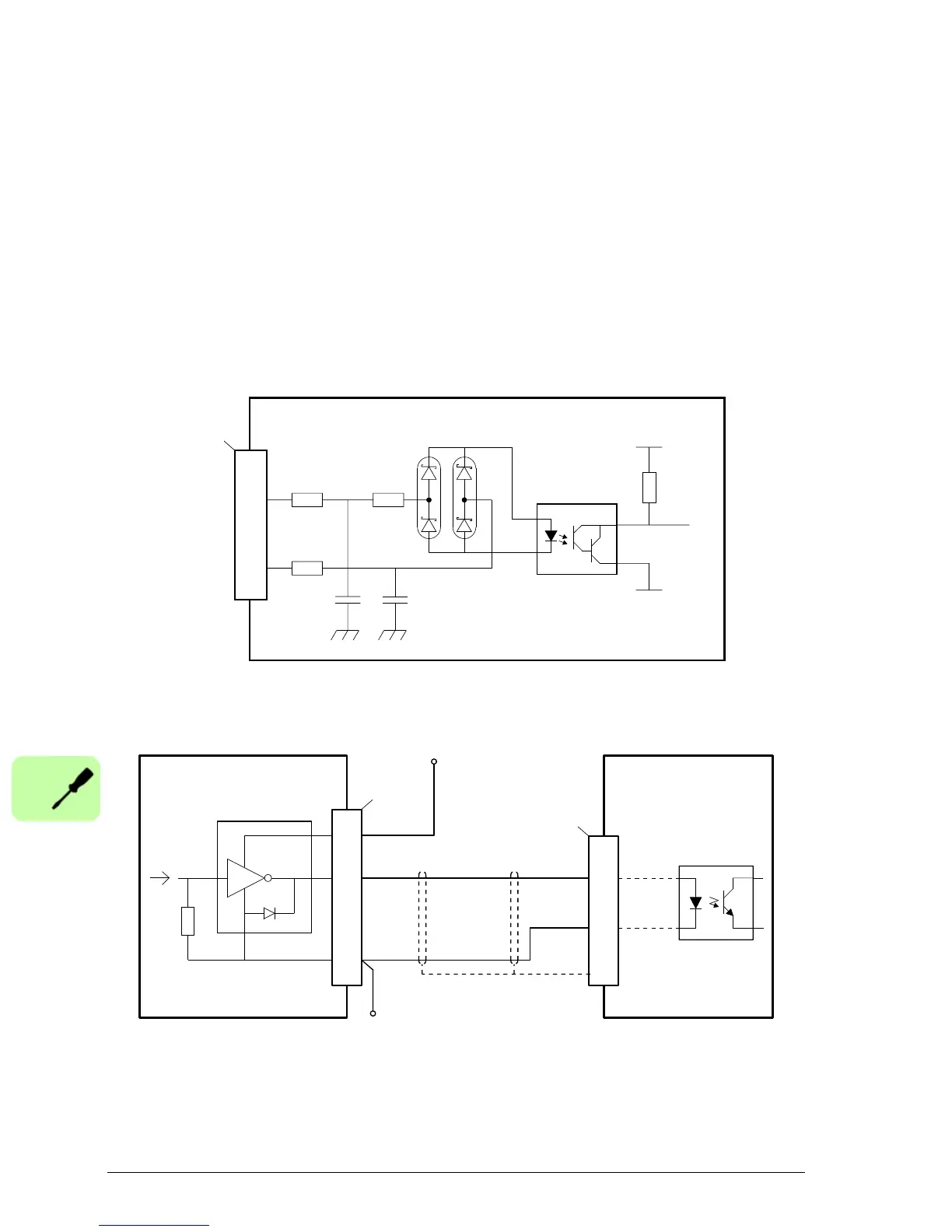

General purpose fast digital input - DIN1 shown:
Digital input - typical connections from an ABB NextMove e100:
TLP115
33R
33R
3k3
Vcc
DGND
16
6
DIN1-
DIN1+
MicroFlex e150
Mint
X3
UDN2982
Mint
OUTX(0)
MicroFlex e150
USR
GND
DOUT0
DIN1-
16
10k
TLP115
6
20
10
1
9
DIN1+
USR V+
X11
X3
NextMove e100 / controller
User
supply
24 V
User
supply
GND
Shield
