168 Accessories

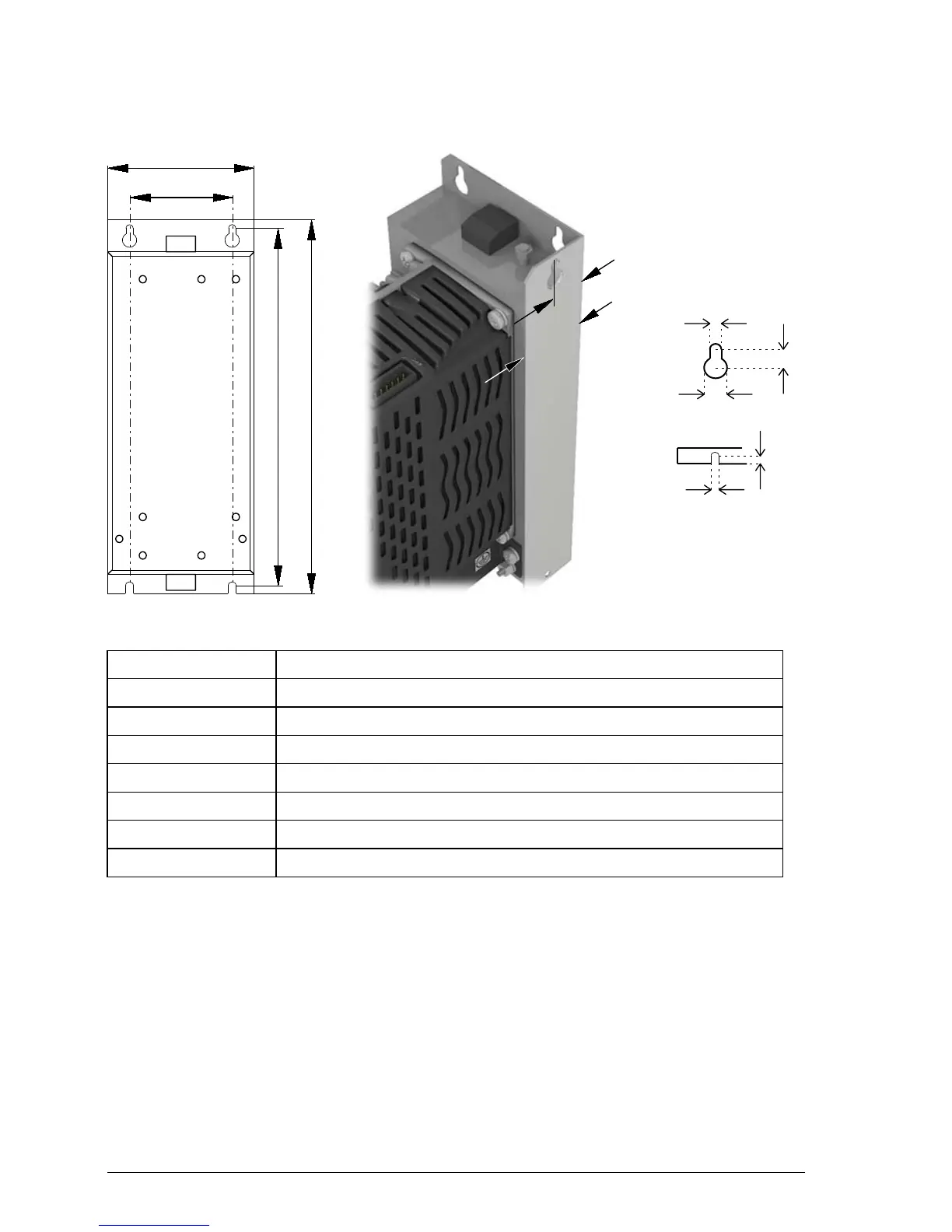

Filter dimensions, type FI0029A00:
Dimensions mm (inches)
Dimension FI0029A00
A 255 (10.04)
B 100 (3.94)
C 244.5 (9.63)
D 70 (2.76)
E 40 (1.57)
F 20 (0.79)
B
AC
D
G
G
K
J
H
G 5.5 mm
H 11 mm
K 5 mm
J 10 mm
F
E
Mounting keyhole
and slot detail
